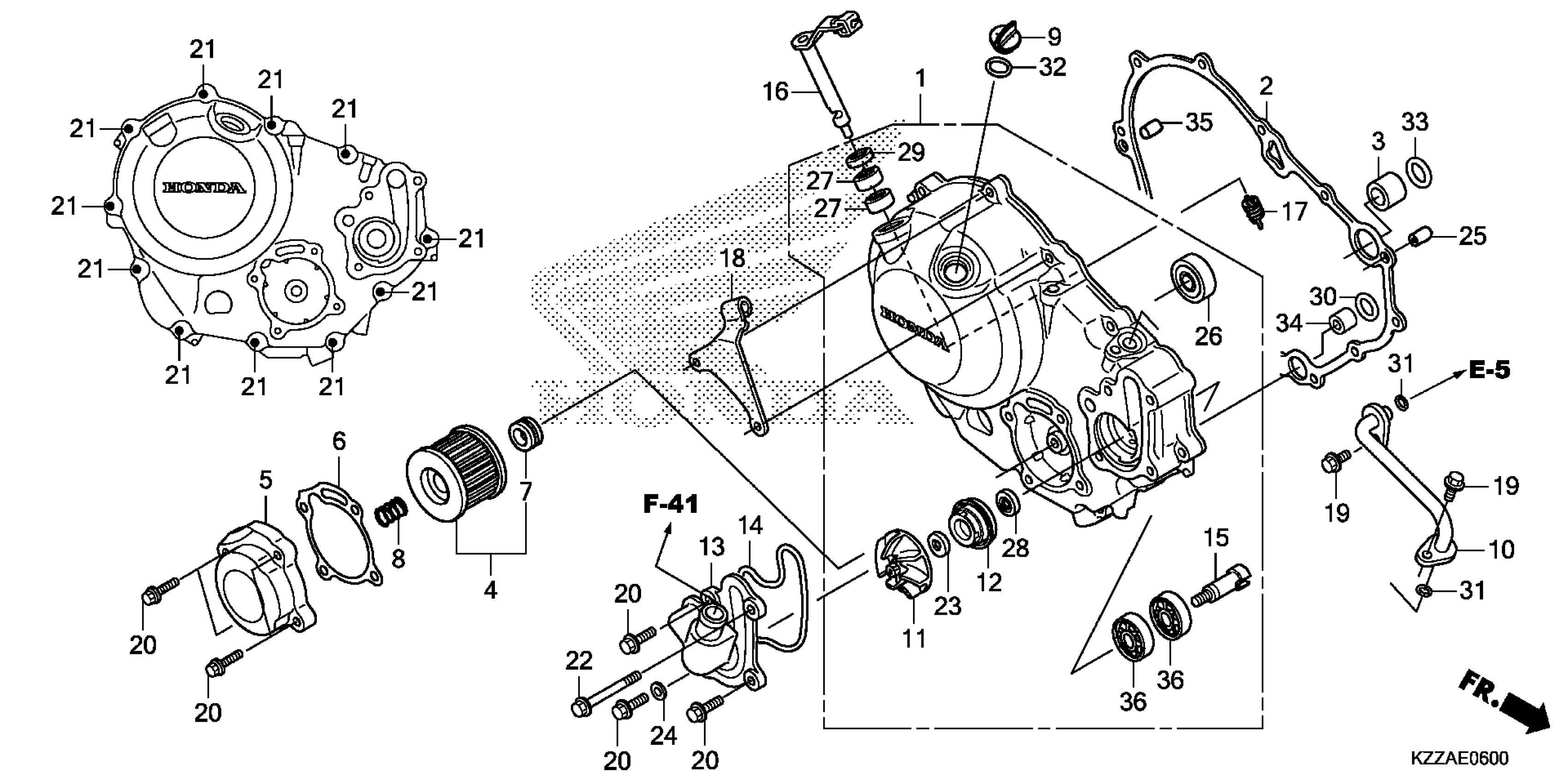

Honda CRF250LAC (18) MOTORCYCLE, THA, VIN# MLHMD441-J5100001 RIGHT CRANKCASE COVER Diagram

COVER ASSY., R. CRANKCASE

11300-KZZ-D20

$131.87

GASKET, R. CRANKCASE COVER This part replaces 11394-KYJ-900.

11394-K87-A30

$9.12

COLLAR, OIL PASSAGE (18MM)

15326-KT7-000

$2.83

ELEMENT, OIL FILTER

15410-KYJ-902

$5.72

COVER, OIL FILTER

15411-KZZ-900

$14.73

GASKET, OIL FILTER COVER

15412-KYJ-901

$5.23

RUBBER, FILTER

15413-MC8-000

$3.19

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.05

CAP, OIL FILLER

15611-KA4-710

$13.22

PIPE, WATER

19120-KZZ-900

$6.53

IMPELLER, WATER PUMP

19215-KGH-900

$4.81

SEAL, MECHANICAL

19217-P72-013

$49.03

COVER, WATER PUMP

19220-KZZ-900

$36.96

GASKET, WATER PUMP COVER

19226-KYJ-901

Unavailable

SHAFT, WATER PUMP

19241-KZZ-D20

$11.06

LEVER, CLUTCH

22810-KZZ-900

$29.40

SPRING, CLUTCH LEVER

22815-KM7-700

$3.98

RECEIVER, CLUTCH CABLE

22821-KZZ-900

$9.51

BOLT, FLANGE (6X16) (NSHF)

90010-KYJ-900

$0.44

BOLT, FLANGE (6X25) (NSHF)

90012-KYJ-900

Unavailable

BOLT, FLANGE (6X30) (NSHF)

90013-KYJ-900

$0.50

BOLT, FLANGE (6X65) (NSHF)

90015-KYJ-900

$0.79

WASHER (7.2X13X1.2)

90423-KJ9-000

$2.16

WASHER (7.2X13X1.2) This part replaces 90423-KW6-900.

90423-KJ9-000

$2.16

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

PIN, DOWEL (8X12)

90702-KFM-900

$0.62

BEARING, RADIAL BALL (6001U)

91009-KYJ-901

$17.34

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$7.99

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$7.99

OIL SEAL (12X26X5)

91202-KTW-901

$9.33

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

Unavailable

O-RING (11.8X1.9)

91301-KYJ-901

$0.41

O-RING (9.8X2.4)

91302-KYJ-901

Unavailable

O-RING (18X3)

91307-035-000

$2.75

O-RING (17.8X1.9) (NOK)

91322-PT0-003

$2.56

O-RING (17.8X1.9) (NOK) This part replaces 91322-PT0-004.

91322-PT0-003

$2.56

PIN A, DOWEL (12X16)

94301-12160

$2.80

PIN B, DOWEL (8X14)

94302-08140

$2.62

BEARING, RADIAL BALL (6001)

96100-60013-00

$10.00
