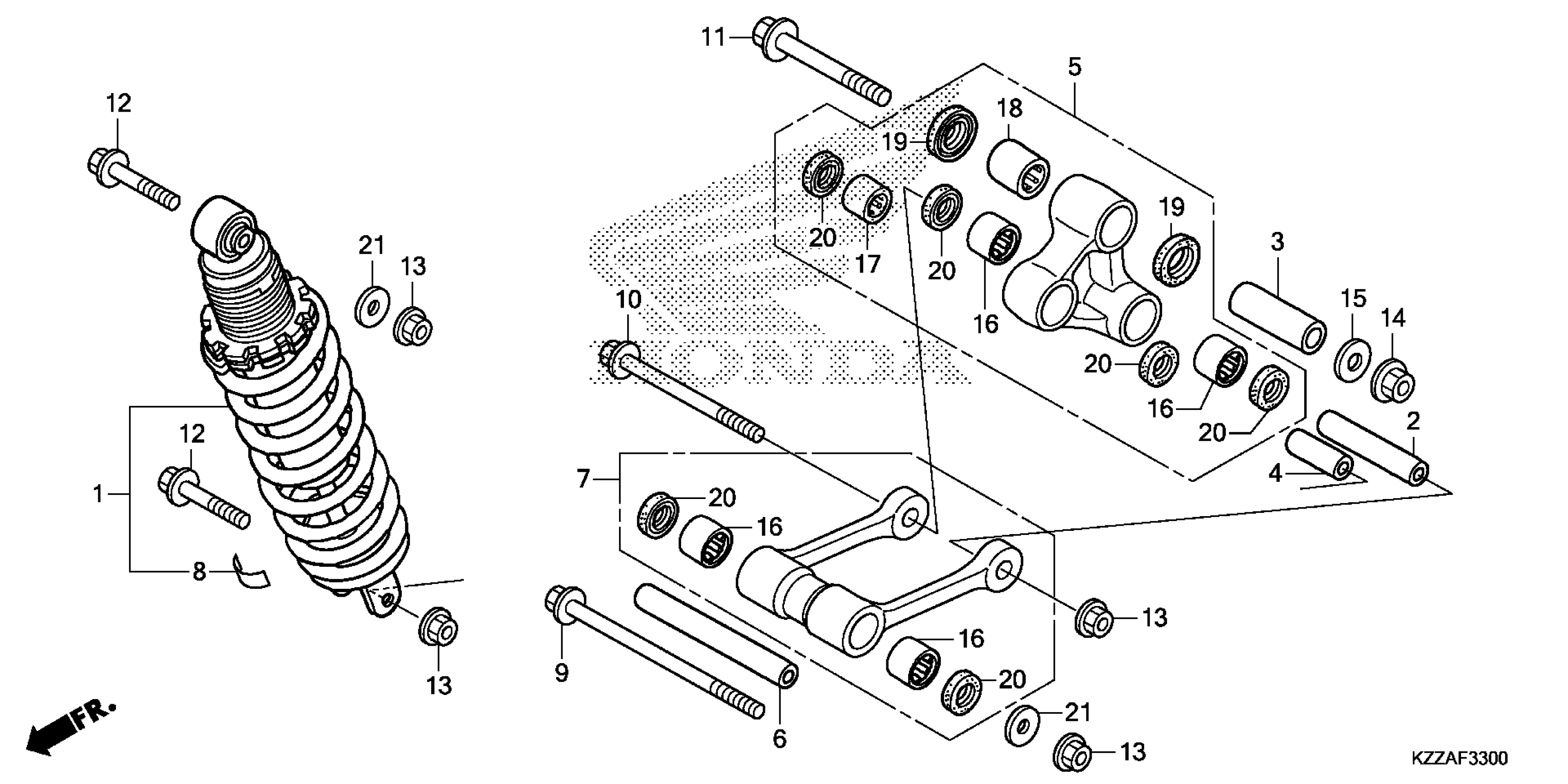

Honda CRF250LAC (18) MOTORCYCLE, THA, VIN# MLHMD441-J5100001 REAR SHOCK ABSORBER Diagram

CUSHION ASSY., RR. (SHOWA)

52400-KZZ-D11

$461.39

COLLAR A, CUSHION ARM

52462-KPS-900

$6.75

COLLAR C, CUSHION ARM

52462-KZZ-900

$10.62

COLLAR C, CUSHION ARM

52464-KPE-900

$5.51

ARM SUB-ASSY., CUSHION

52465-KZZ-900

$156.52

COLLAR, CONNECTING ROD

52472-KZZ-900

$15.43

ROD SUB-ASSY., CUSHION CONNECTING

52475-KZZ-900

$95.28

LABEL, RR. DAMPER CAUTION (ENGLISH)

87516-KV6-610

$4.93

BOLT, FLANGE (10X127)

90151-KZZ-900

$7.59

BOLT, FLANGE (10X103)

90152-KZZ-900

$2.72

BOLT, FLANGE (12X88)

90153-KZZ-900

$6.26

BOLT, FLANGE (10X53)

90154-KZZ-900

$1.79

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.67

NUT, U (12MM)

90305-KZZ-901

$4.85

WASHER, PLAIN (12MM)

90501-KZ4-J40

$2.23

BEARING, NEEDLE (KOYO)

91071-KV3-005

$24.88

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$19.69

BEARING, NEEDLE (20X26X20)

91072-MY1-005

$18.51

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

WASHER, PLAIN (10.5X22X1.6)

94101-10800

$1.89
