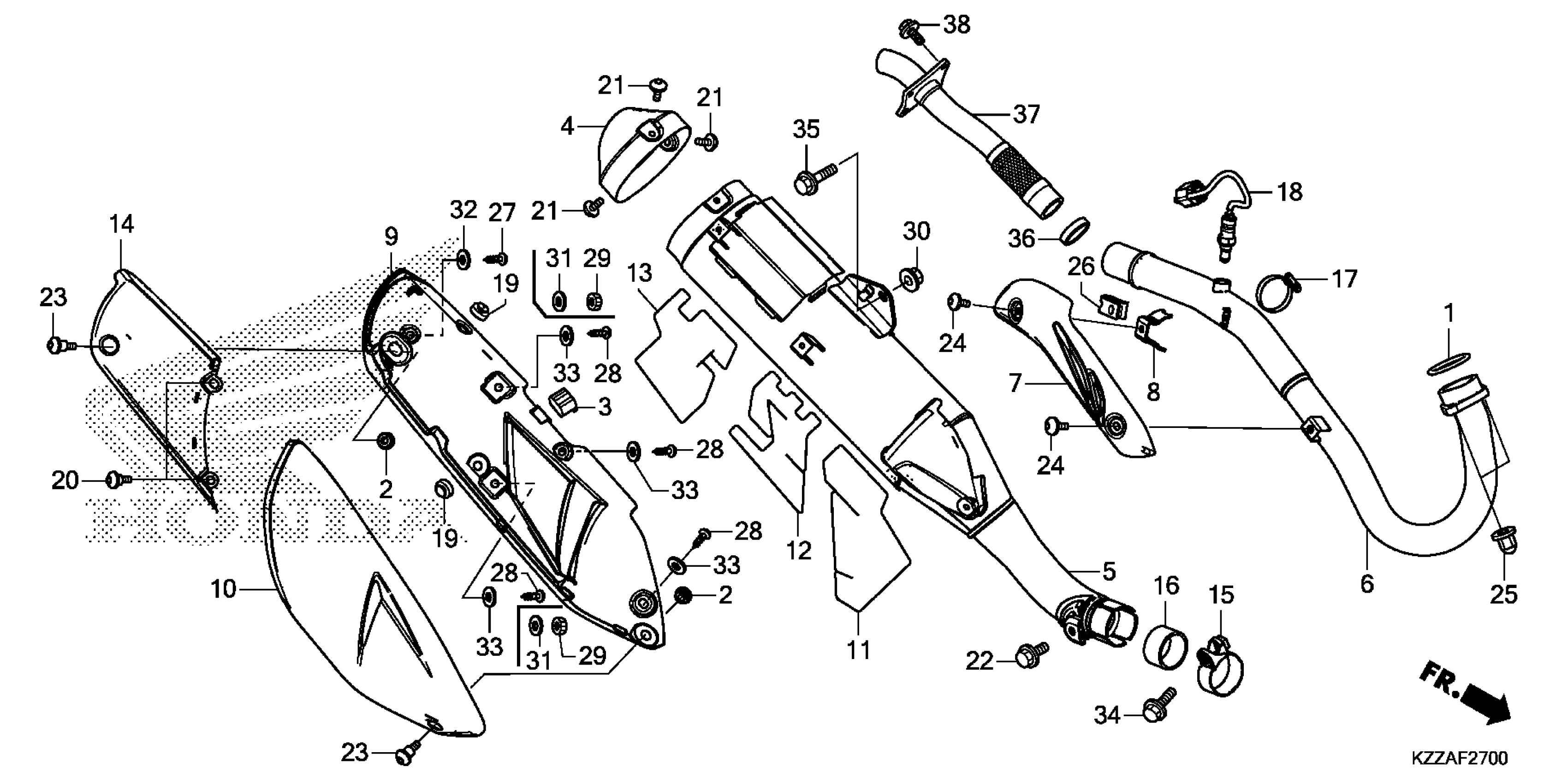

Honda CRF250LAC (18) MOTORCYCLE, THA, VIN# MLHMD441-J5100001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MEB-670

$4.92

2

RUBBER, PROTECTOR GASKET

18293-KZZ-900

$1.49

3

RUBBER, PROTECTOR

18293-MN0-000

$2.13

4

CAP, TAIL

18306-KZZ-900

$29.07

5

MUFFLER

18310-KZZ-J10

$660.48

6

PIPE, EX.

18320-KZZ-J00

$99.11

7

PROTECTOR, EX. PIPE

18325-KZZ-900

$30.87

8

STAY, EX. PIPE PROTECTOR

18327-KZZ-J00

$17.18

9

PROTECTOR, MUFFLER

18355-KZZ-J00

$69.33

10

COVER, FR. MUFFLER *NH196* (ROSS WHITE)

18360-KZZ-D20ZA

$58.89

11

GUARD, HEAT (A)

18361-KZZ-J00

$4.64

12

GUARD, HEAT (B)

18362-KZZ-J00

$6.20

13

GUARD, HEAT (C)

18363-KZZ-J00

$6.52

14

COVER, RR. MUFFLER

18365-KZZ-900

$11.47

15

BAND, MUFFLER

18373-KYJ-900

$12.15

16

GASKET, MUFFLER

18392-KYJ-901

$7.01

17

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$13.58

18

SENSOR, OXYGEN (NGK) This part replaces 36531-KZZ-J01.

36531-KZZ-J02

$90.59

18

SENSOR, OXYGEN (NGK)

36531-KZZ-J02

$90.59

19

RUBBER, MUFFLER PROTECTOR

83512-KZZ-900

$1.49

21

SCREW, SPECIAL (5X10)

90114-KZZ-900

$1.49

22

BOLT, FLANGE (8X16)

90118-KZZ-900

$1.49

23

BOLT, MUFFLER PROTECTOR (5MM)

90160-KZZ-900

$1.49

24

SCREW, PAN (6X10)

90170-KZZ-900

$1.49

25

NUT, HEX. CAP (8MM)

90304-KPH-700

$1.75

26

NUT, CLIP (6MM)

90344-964-003

$3.85

27

SCREW, TAPPING (4X12)

93913-142J0

$1.75

28

SCREW, TAPPING (4X12)

93913-142J0

$1.75

30

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

32

WASHER, PLAIN (4MM)

94103-04000

$1.49

33

WASHER, PLAIN (4MM)

94103-04000

$1.49

34

BOLT, FLANGE (8X38)

95701-08038-02

$4.37

35

BOLT, FLANGE (8X40)

96300-08040-00

$2.13

36

GASKET A, EX. PIPE

18291-KR1-680

$8.69

37

ARRESTER, SPARK

18317-KZZ-J10

$62.60

38

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.62

38

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
