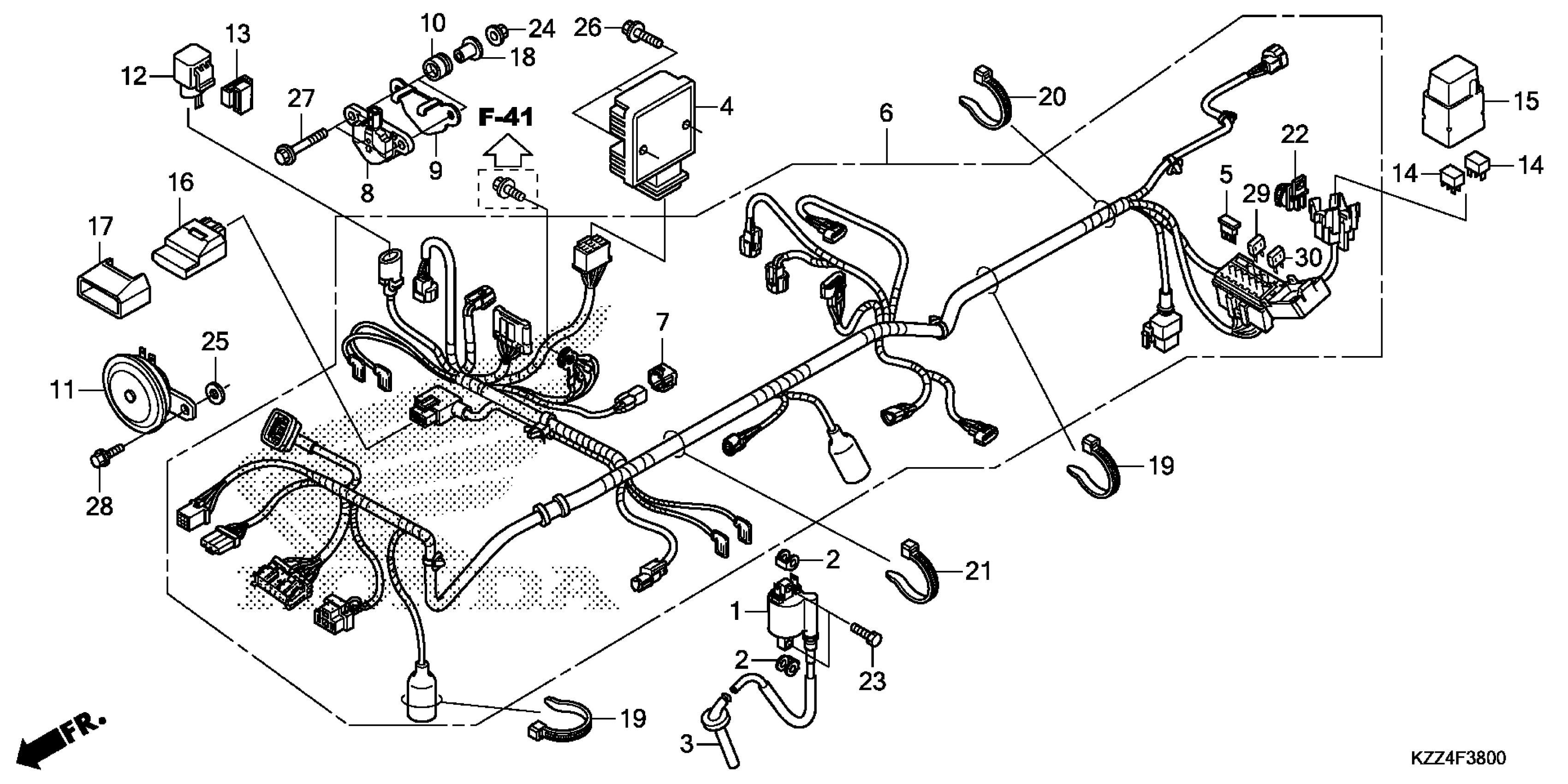

Honda CRF250LAC (16) MOTORCYCLE, THA, VIN# MLHMD381-G5300001 WIRE HARNESS Diagram

#

Description
Price

1

COIL, IGNITION

30510-KZZ-901

$36.44

2

SPACER, IGNITION COIL

30520-GFM-900

$2.61

3

CAP ASSY., NOISE SUPPRESSOR

30700-KZZ-901

$39.59

4

RECTIFIER ASSY., REGULATOR

31600-KVK-901

$213.83

5

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

6

WIRE HARNESS

32100-KZZ-910

$357.11

7

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

8

SENSOR ASSY., BANK ANGLE (M6)

35160-KVS-751

$108.46

9

STAY, BANK ANGLE SENSOR

35161-KZZ-900

$2.66

10

RUBBER, SPEEDOMETER MOUNTING

37244-MM4-000

$5.12

11

HORN (HIGH)

38110-KYJ-901

$28.56

12

RELAY, TURN SIGNAL (MITSUBA)

38301-KYJ-641

$77.41

13

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

14

RELAY, POWER (MICRO ISO 4P) (OMRON)

38501-KWN-901

$6.31

15

COVER, RELAY (2P)

38506-KZZ-900

$3.72

16

PGM-FI UNIT

38770-KZZ-914

$201.49

17

SUSPENSION, ENGINE CONTROL UNIT

38771-KZZ-900

$1.92

18

COLLAR, PILLION SEAT

77302-473-000

$4.31

19

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

20

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

21

BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)

90679-SG9-E01

$3.73

22

CLIP, CONNECTOR (DARK GREEN)

91565-S0X-003

$3.03

23

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

24

NUT, FLANGE (6MM)

94050-06000

$1.49

25

WASHER, PLAIN (8MM)

94102-08000

$1.49

26

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

27

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

28

BOLT, FLANGE (8X14)

95701-08014-00

$1.49

29

FUSE, MINI (5A) (Honda Code 5026521)

98200-40500

$1.49

30

FUSE, MINI (10A)

98200-41000

$1.49
