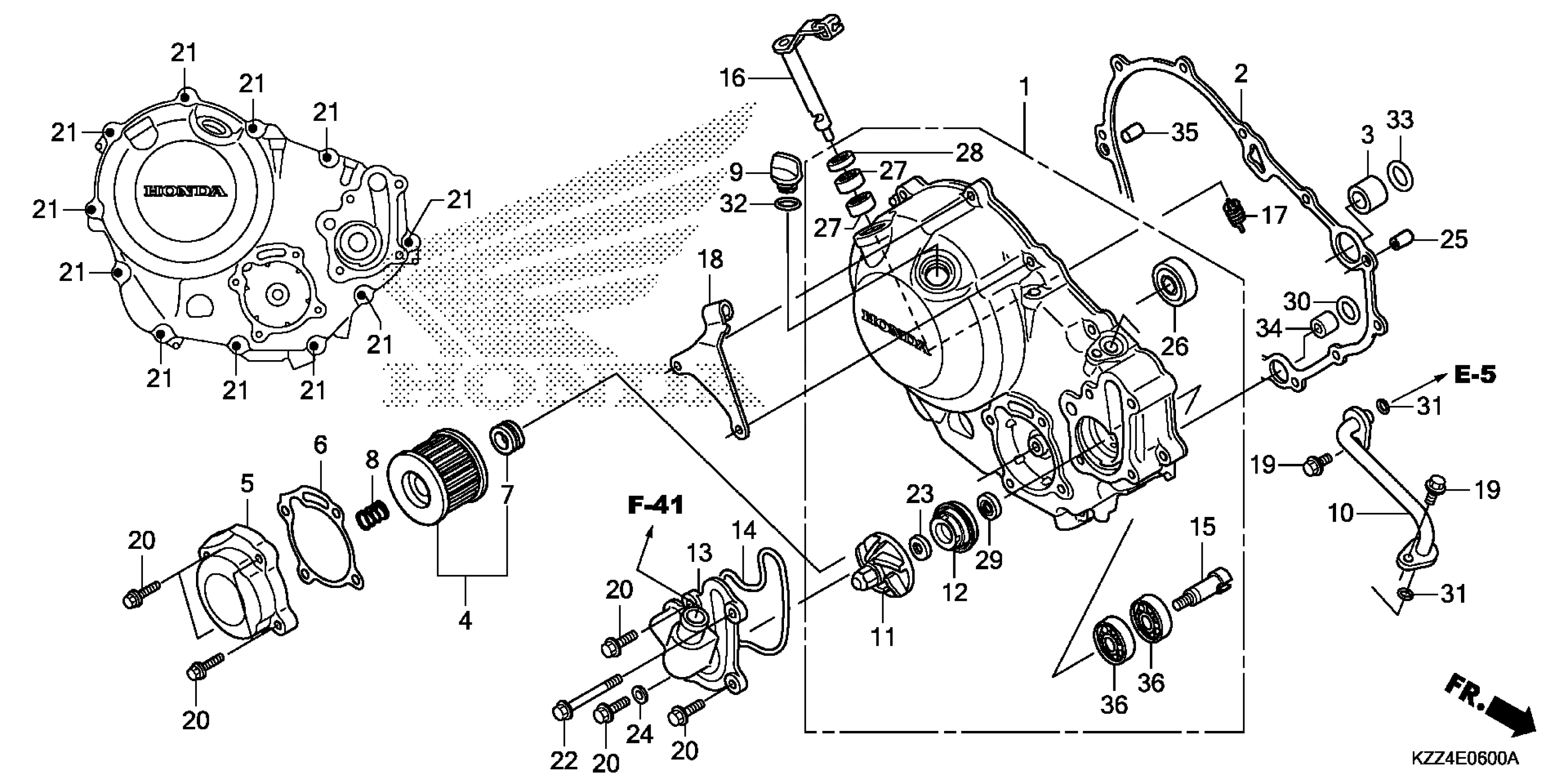

Honda CRF250LAC (16) MOTORCYCLE, THA, VIN# MLHMD381-G5300001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER ASSY., R. CRANKCASE

11300-KZZ-D20

$147.00

1

COVER ASSY., R. CRANKCASE This part replaces 11300-KZZ-901.

11300-KZZ-D20

$147.00

2

GASKET, R. CRANKCASE COVER This part replaces 11394-KYJ-900.

11394-K87-A30

$10.20

3

COLLAR, OIL PASSAGE (18MM)

15326-KT7-000

$2.97

4

ELEMENT, OIL FILTER This part replaces 15410-KYJ-901.

15410-KYJ-902

$6.17

4

ELEMENT, OIL FILTER

15410-KYJ-902

$6.17

5

COVER, OIL FILTER

15411-KZZ-900

$16.52

6

GASKET, OIL FILTER COVER

15412-KYJ-901

$5.65

7

RUBBER, FILTER

15413-MC8-000

$3.35

8

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

9

CAP, OIL FILLER

15611-KA4-710

$14.40

10

PIPE, WATER

19120-KZZ-900

$7.28

11

IMPELLER, WATER PUMP

19215-KGH-900

$5.19

12

SEAL, MECHANICAL

19217-P72-013

$40.65

13

COVER, WATER PUMP

19220-KZZ-900

$41.20

14

GASKET, WATER PUMP COVER

19226-KYJ-901

$1.66

15

SHAFT, WATER PUMP This part replaces 19241-KYJ-900.

19241-KZZ-D20

$12.41

16

LEVER, CLUTCH

22810-KZZ-900

$32.77

17

SPRING, CLUTCH LEVER

22815-KM7-700

$4.17

18

RECEIVER, CLUTCH CABLE

22821-KZZ-900

$10.61

19

BOLT, FLANGE (6X16) (NSHF)

90010-KYJ-900

$1.49

20

BOLT, FLANGE (6X25) (NSHF)

90012-KYJ-900

$1.49

21

BOLT, FLANGE (6X30) (NSHF)

90013-KYJ-900

$1.49

22

BOLT, FLANGE (6X65) (NSHF)

90015-KYJ-900

$1.49

23

WASHER (7.2X13X1.2)

90423-KJ9-000

$2.34

23

WASHER (7.2X13X1.2) This part replaces 90423-KW6-900.

90423-KJ9-000

$2.34

24

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

25

PIN, DOWEL (8X12)

90702-KFM-900

$1.49

26

BEARING, RADIAL BALL (6001U)

91009-KYJ-901

$19.33

27

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

27

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

28

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

29

OIL SEAL (12X20X5) (ARAI)

91205-KF0-003

$3.47

30

O-RING (11.8X1.9)

91301-KYJ-901

$1.49

31

O-RING (9.8X2.4)

91302-KYJ-901

$1.49

32

O-RING (18X3)

91307-035-000

$2.92

33

O-RING (17.8X1.9) (NOK)

91322-PT0-003

$2.58

33

O-RING (17.8X1.9) (NOK) This part replaces 91322-PT0-004.

91322-PT0-003

$2.58

34

PIN A, DOWEL (12X16)

94301-12160

$2.27

35

PIN B, DOWEL (8X14)

94302-08140

$2.25

36

BEARING, RADIAL BALL (6001)

96100-60013-00

$11.99
