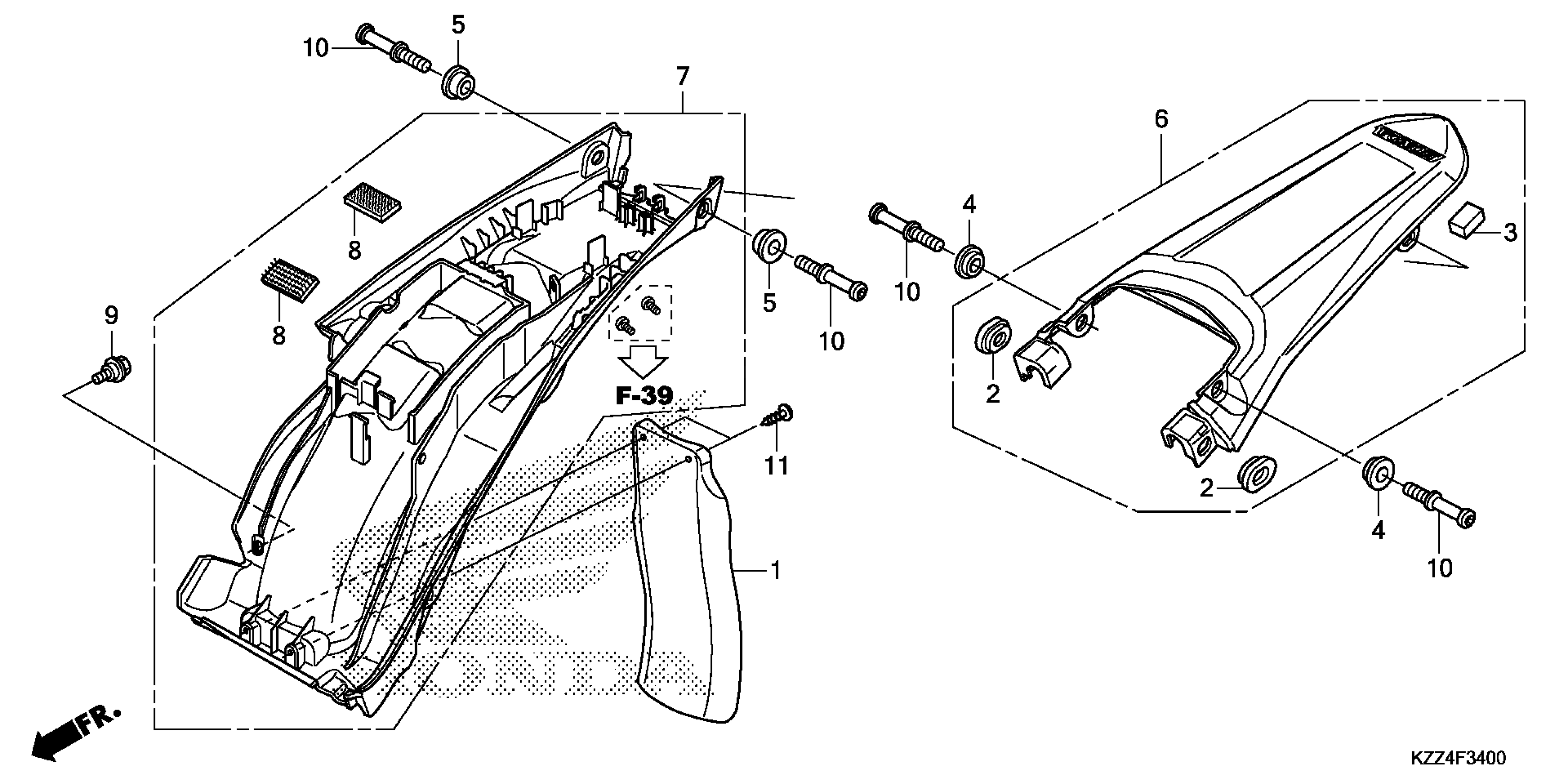

Honda CRF250LAC (16) MOTORCYCLE, THA, VIN# MLHMD381-G5300001 REAR FENDER Diagram

SPLASH GUARD

17218-KZZ-900

$5.02

GROMMET, SPEAKER PANEL

64266-MG9-770

$2.86

RUBBER SPONGE, RR. FENDER

64465-KZZ-900

$2.24

COLLAR A, FENDER SETTING

77223-KZZ-900

$1.71

COLLAR B, FENDER SETTING

77224-KZZ-900

$1.09

FENDER SET, RR. (TYPE1) (WL)

80010-KZZ-900ZD

$83.32

FENDER SET B, RR.

80150-KZZ-305

$21.59

TAPE, MAGIC (25X50) (FEMALE)

83643-355-300

$2.80

BOLT, FLANGE (6MM)

90110-KZZ-900

$0.69

BOLT, HOOK (8MM)

90116-KZZ-900

$2.22

SCREW, TAPPING (5X20)

93913-15510

$0.87
