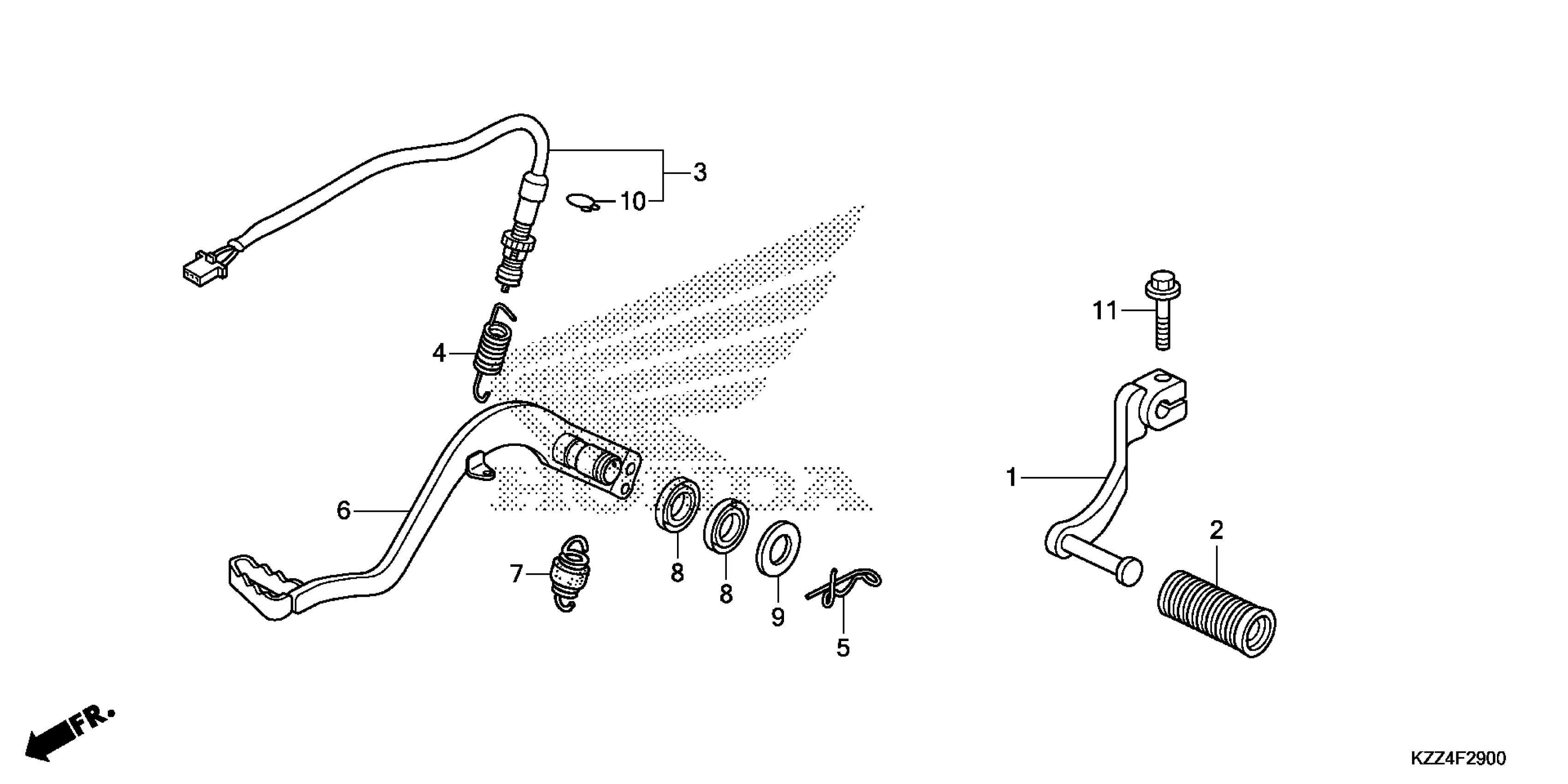

Honda CRF250LAC (16) MOTORCYCLE, THA, VIN# MLHMD381-G5300001 PEDAL Diagram

PEDAL, GEARSHIFT (COO)

24710-KZZ-305

$15.41

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP

35350-KZZ-902

$17.02

SPRING, STOP SWITCH

35357-KZZ-900

$1.56

PIN, SNAP

43950-KZZ-900

$5.31

PEDAL, RR. BRAKE (COO)

46500-KZZ-305

$15.38

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$7.48

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

WASHER, PLAIN (16MM)

90439-463-000

$1.50

CLIP, SWITCH COVER

90601-KAF-003

$2.67

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55
