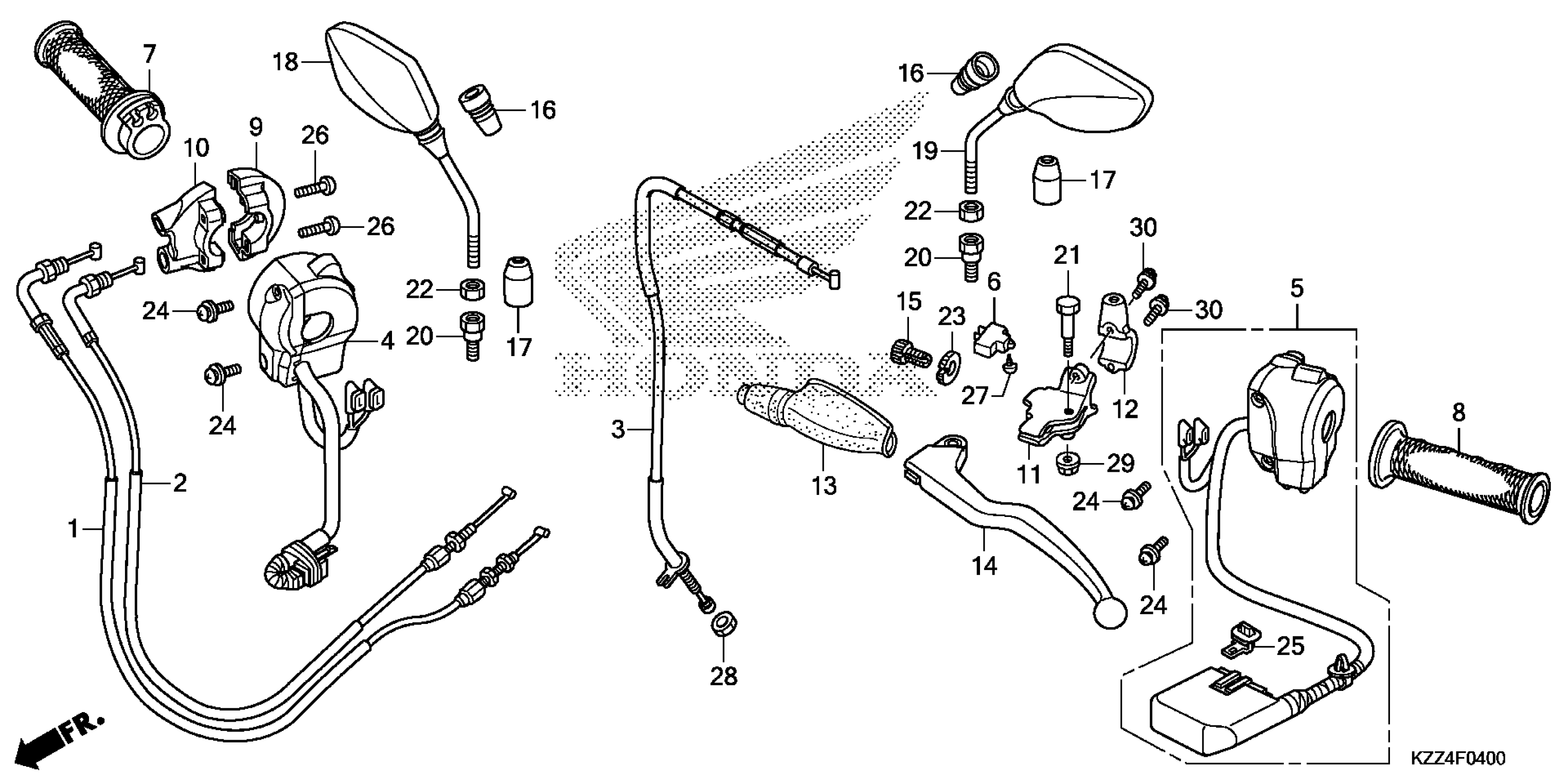

Honda CRF250LAC (16) MOTORCYCLE, THA, VIN# MLHMD381-G5300001 HANDLE LEVER@SWITCH@CABLE@MIRROR Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-KZZ-900

$13.49

2

CABLE B, THROTTLE

17920-KZZ-900

$12.78

3

CABLE, CLUTCH

22870-KZZ-900

$15.87

4

SWITCH ASSY., ENGINE STOP

35130-KZZ-901

$77.14

5

SWITCH, TURN SIGNAL This part replaces 35200-KZZ-911.

35200-KZZ-912

$39.48

5

SWITCH, TURN SIGNAL

35200-KZZ-912

$39.48

6

SWITCH ASSY., CLUTCH

35330-MK5-003

$17.76

7

GRIP, THROTTLE (COO)

53140-KZZ-305

$8.17

8

GRIP, L. HANDLE (COO)

53150-KZZ-305

$8.71

9

HOUSING, THROTTLE (UPPER) (RR.)

53167-MGS-D30

$16.86

10

HOUSING, THROTTLE (LOWER) (FR.)

53168-MGS-D30

$17.98

11

BRACKET, L. HANDLE LEVER

53172-KZZ-900

$14.79

12

HOLDER, L. LEVER BRACKET

53174-KZZ-900

$16.07

13

COVER, L. HANDLE LEVER

53177-KZZ-900

$2.92

14

LEVER, L. HANDLE (COO)

53178-KZZ-305

$12.21

15

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

16

BOOT, MIRROR

88114-KWN-900

$2.07

17

CAP, LOCK NUT

88115-KWN-900

$1.66

18

MIRROR, R. (COO)

88210-KWN-305

$21.59

19

MIRROR, L. (COO)

88220-KWN-305

$21.59

20

BOLT B, ADAPTER (10MM)

90103-KZR-701

$1.49

21

BOLT, HANDLE LEVER PIVOT

90113-HA0-770

$3.67

22

NUT, HEX. (10MM) (LEFT HAND THREAD)

90301-KWW-640

$1.49

23

NUT, FIXING

90321-315-670

$7.31

24

SCREW-WASHER (5X16)

90508-KZZ-900

$1.49

25

CLIP, CONNECTOR (NATURAL)

91533-S04-003

$3.90

26

SCREW, PAN (5X22)

93500-05022-0G

$1.49

27

SCREW, TAPPING (3X12)

93901-32320

$1.49

28

NUT, HEX. (8MM)

94002-08000-0S

$1.49

29

NUT, FLANGE (6MM)

94050-06070

$1.49

30

BOLT, FLANGE (6X20)

96001-06020-07

$1.49
