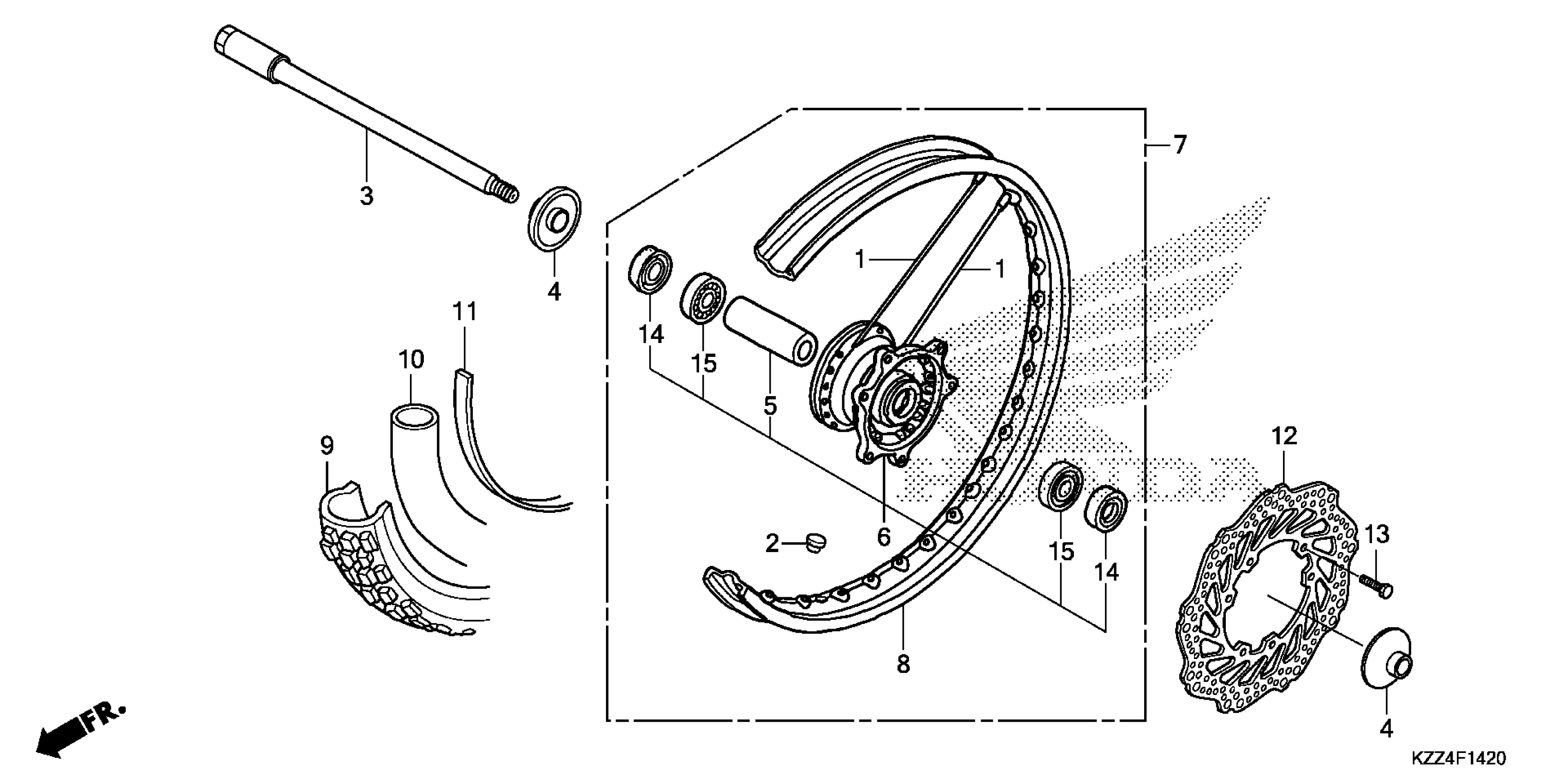

Honda CRF250LAC (16) MOTORCYCLE, THA, VIN# MLHMD381-G5300001 FRONT WHEEL Diagram

SPOKE SET, FR.

06440-KZZ-900

$2.31

CAP, RIM HOLE

42717-329-000

$4.21

AXLE, FR. WHEEL

44301-KZZ-900

$33.85

COLLAR, FR. WHEEL SIDE

44310-KZZ-900

$9.94

COLLAR, FR. AXLE DISTANCE

44620-KZZ-900

$5.10

HUB SUB-ASSY., FR.

44635-KZZ-900

$75.51

WHEEL SUB-ASSY., FR.

44650-KZZ-900

$511.25

RIM, FR. WHEEL (21X1.60) This part replaces 44701-KZZ-901.

44701-KZZ-902

$232.87

RIM, FR. WHEEL (21X1.60)

44701-KZZ-902

$232.87

TIRE, FR. (3.00-21 51P) (IRC) This part replaces 44711-KZZ-901.

44711-KZZ-904

$88.87

TIRE, FR. (3.00-21 51P) (IRC) This part replaces 44711-KZZ-902.

44711-KZZ-904

$88.87

TIRE, FR. (3.00-21 51P) (IRC) This part replaces 44711-KZZ-903.

44711-KZZ-904

$88.87

TIRE, FR. (3.00-21 51P) (IRC)

44711-KZZ-904

$88.87

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-KAE-005.

44712-446-631

Unavailable

FLAP, TIRE (IRC)

44713-KZZ-901

$3.03

DISK, FR. BRAKE

45351-KZZ-901

$58.97

BOLT, DISK (6X17)

90105-KZZ-900

$1.49

DUST SEAL (23X35X5)

91251-KZZ-901

$2.34

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85
