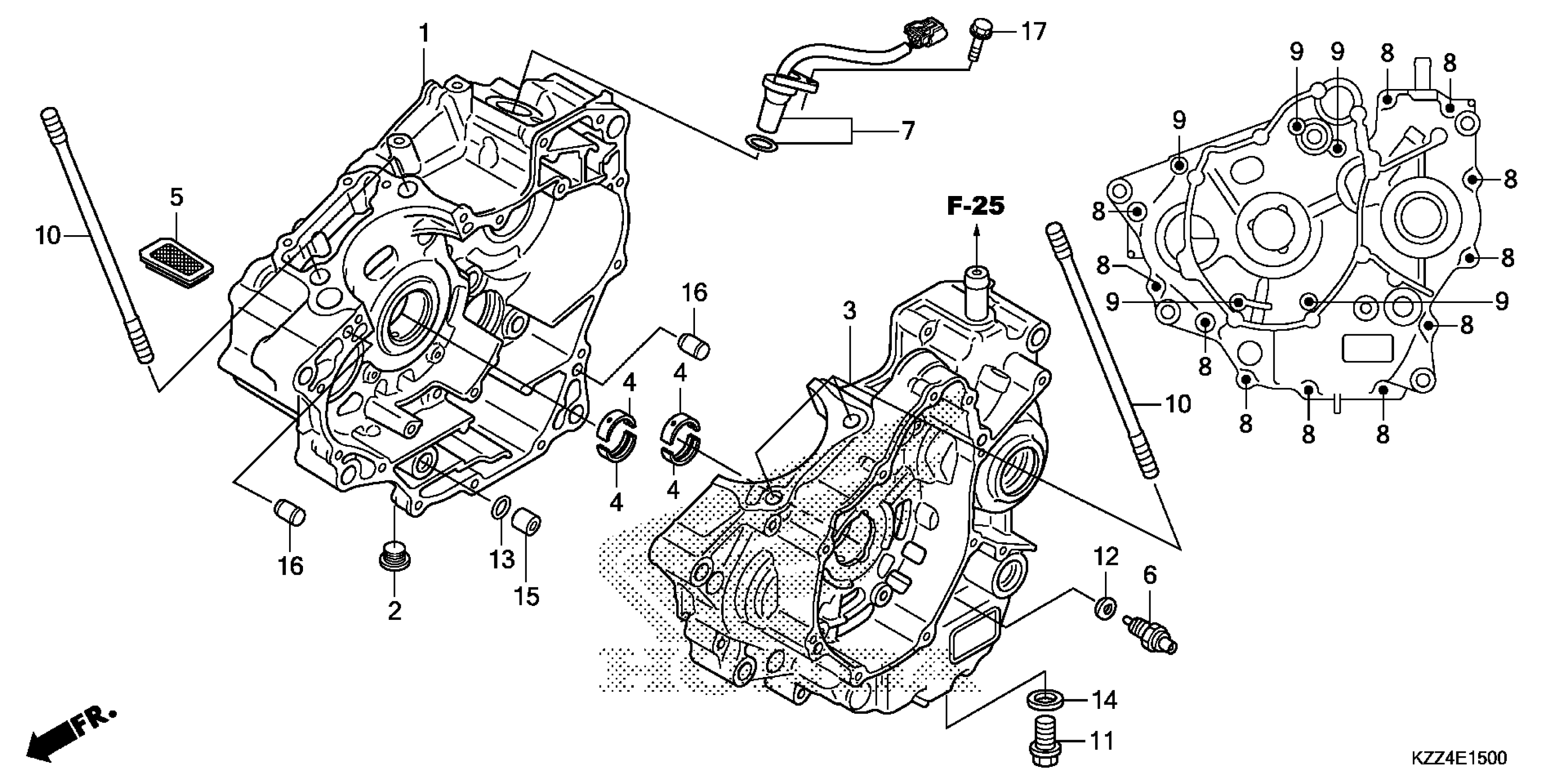

Honda CRF250LAC (16) MOTORCYCLE, THA, VIN# MLHMD381-G5300001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-KZZ-900

$150.43

2

BOLT, SEALING (16MM)

11107-KYJ-900

$2.87

3

CRANKCASE, L.

11200-KZZ-900

$155.96

4

BEARING A, CRANKSHAFT (BLUE)

13312-KYJ-901

$11.69

4

BEARING B, CRANKSHAFT (BLACK)

13313-KYJ-901

$11.77

4

BEARING C, CRANKSHAFT (BROWN)

13314-KYJ-901

$12.67

4

BEARING D, CRANKSHAFT (OVER SIZE) (RED) | (Optional).

13315-KYJ-305

$11.77

4

BEARING E, CRANKSHAFT (OVER SIZE) (GREEN) | (Optional).

13316-KYJ-305

$12.12

4

BEARING F, CRANKSHAFT (OVER SIZE) (YELLOW) | (Optional).

13317-KYJ-305

$12.12

4

BEARING G, CRANKSHAFT (OVER SIZE) (PINK) | (Optional).

13318-KYJ-305

$12.12

5

SCREEN, OIL FILTER

15421-KYJ-900

$2.80

6

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$16.98

7

SENSOR ASSY., SPEED

37700-KZZ-901

$41.80

8

BOLT, FLANGE (6X40) (NSHF)

90014-KYJ-900

$0.57

9

BOLT, FLANGE (6X70) (NSHF)

90016-KYJ-900

$0.78

10

BOLT, STUD (10X178)

90032-KYJ-900

$2.61

11

BOLT, DRAIN PLUG (12MM)

90061-KYJ-900

$0.87

12

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.22

13

O-RING (11.8X1.9)

91301-KYJ-901

$0.41

14

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

15

PIN A, DOWEL (12X16)

94301-12160

Unavailable

16

PIN B, DOWEL (8X14)

94302-08140

$2.04

17

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.48
