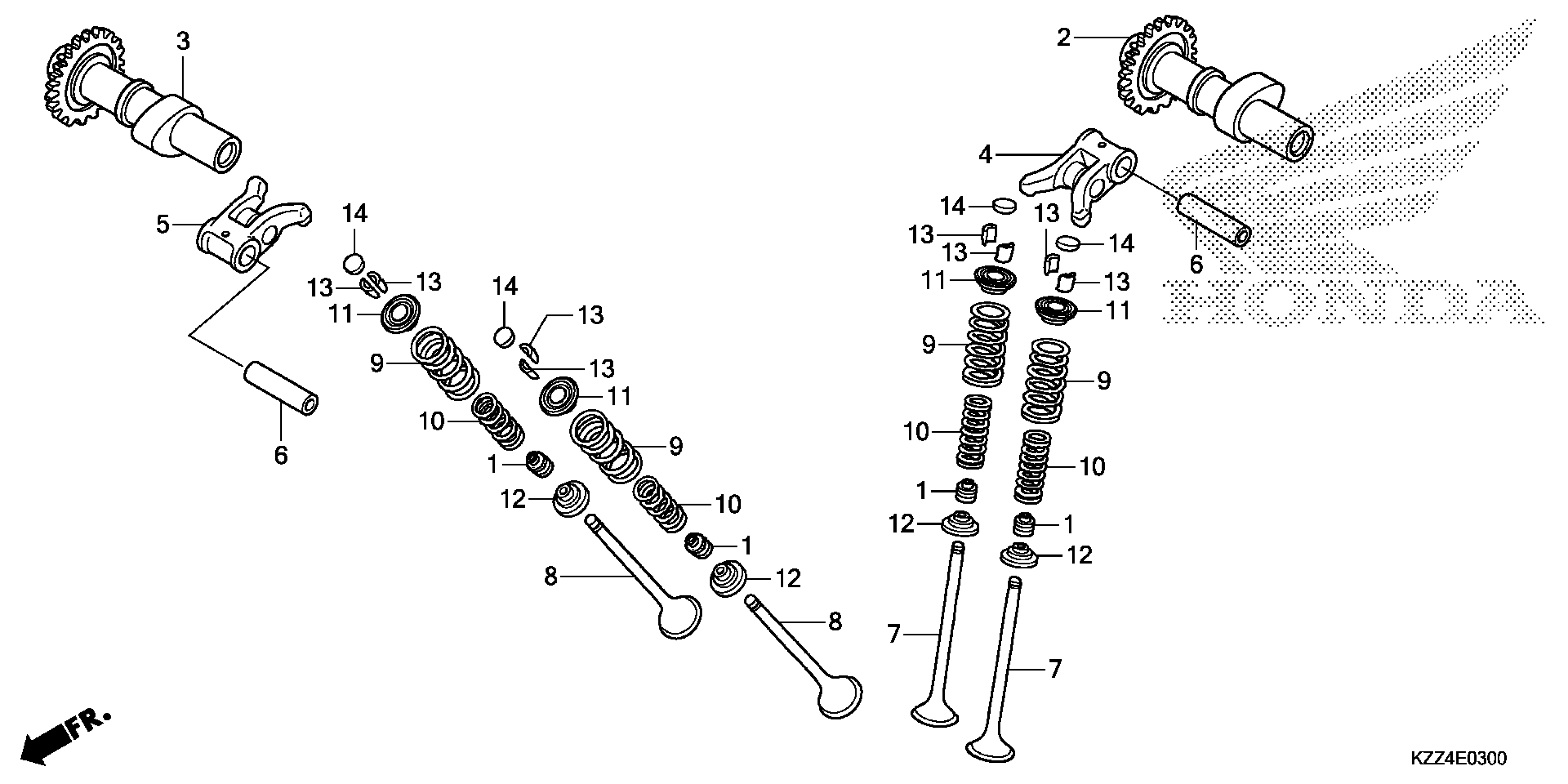

Honda CRF250LAC (16) MOTORCYCLE, THA, VIN# MLHMD381-G5300001 CAMSHAFT@VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (ARAI)

12209-ML0-722

$7.64

2

CAMSHAFT, IN. (34T)

14110-KYJ-900

$49.77

3

CAMSHAFT, EX. (34T)

14210-KYJ-900

$46.92

4

ARM, IN. VALVE ROCKER

14430-K33-D00

$92.00

5

ARM, EX. VALVE ROCKER

14440-K33-D00

$97.59

6

SHAFT, ROCKER ARM

14451-KYJ-900

$5.40

7

VALVE, IN.

14711-KYJ-900

$11.26

8

VALVE, EX.

14721-KYJ-900

$27.07

9

SPRING, VALVE (OUTER)

14751-KYJ-900

$5.79

10

SPRING, VALVE (INNER)

14761-KYJ-900

$3.48

11

RETAINER, VALVE SPRING

14771-MFL-000

$9.69

12

SEAT, VALVE SPRING

14775-KYJ-900

$4.25

13

COTTER, VALVE

14781-ML0-720

$3.45

14

SHIM, TAPPET (1.200) (Honda Code 4064283)

14901-KT7-013

$9.48

14

SHIM, TAPPET (1.225) (Honda Code 4105565)

14902-KT7-013

$9.48

14

SHIM, TAPPET (1.250) (Honda Code 4105573)

14903-KT7-013

$9.48

14

SHIM, TAPPET (1.275) (Honda Code 4105581)

14904-KT7-013

$9.48

14

SHIM, TAPPET (1.300) (Honda Code 4105599)

14905-KT7-013

$9.48

14

SHIM, TAPPET (1.325) (Honda Code 4105607)

14906-KT7-013

$9.05

14

SHIM, TAPPET (1.350) (Honda Code 4105615)

14907-KT7-013

$9.48

14

SHIM, TAPPET (1.375) (Honda Code 4105623)

14908-KT7-013

$9.48

14

SHIM, TAPPET (1.400) (Honda Code 4105631)

14909-KT7-013

$9.48

14

SHIM, TAPPET (1.425) (Honda Code 4105649)

14910-KT7-013

$9.48

14

SHIM, TAPPET (1.450) (Honda Code 4105656)

14911-KT7-013

$9.48

14

SHIM, TAPPET (1.475) (Honda Code 4105664)

14912-KT7-013

$9.48

14

SHIM, TAPPET (1.500) (Honda Code 4105672)

14913-KT7-013

$9.48

14

SHIM, TAPPET (1.525) (Honda Code 4105680)

14914-KT7-013

$9.48

14

SHIM, TAPPET (1.550) (Honda Code 4105698)

14915-KT7-013

$9.48

14

SHIM, TAPPET (1.575) (Honda Code 4105706)

14916-KT7-013

$9.48

14

SHIM, TAPPET (1.600) (Honda Code 4105714)

14917-KT7-013

$8.92

14

SHIM, TAPPET (1.625) (Honda Code 4105722)

14918-KT7-013

$8.92

14

SHIM, TAPPET (1.650) (Honda Code 4105730)

14919-KT7-013

$8.92

14

SHIM, TAPPET (1.675) (Honda Code 4105748)

14920-KT7-013

$8.92

14

SHIM, TAPPET (1.700) (Honda Code 4105755)

14921-KT7-013

$8.92

14

SHIM, TAPPET (1.725) (Honda Code 4105763)

14922-KT7-013

$8.92

14

SHIM, TAPPET (1.750) (Honda Code 4105771)

14923-KT7-013

$8.92

14

SHIM, TAPPET (1.775) (Honda Code 4105789)

14924-KT7-013

$8.92

14

SHIM, TAPPET (1.800) (Honda Code 4105797)

14925-KT7-013

$8.92

14

SHIM, TAPPET (1.825) (Honda Code 4105805)

14926-KT7-013

$8.92

14

SHIM, TAPPET (1.850) (Honda Code 4105813)

14927-KT7-013

$9.48

14

SHIM, TAPPET (1.875) (Honda Code 4105821)

14928-KT7-013

$8.92

14

SHIM, TAPPET (1.900) (Honda Code 4105839)

14929-KT7-013

$8.92

14

SHIM, TAPPET (1.925) (Honda Code 4105847)

14930-KT7-013

$8.92

14

SHIM, TAPPET (1.950) (Honda Code 4105854)

14931-KT7-013

$8.92

14

SHIM, TAPPET (1.975) (Honda Code 4105862)

14932-KT7-013

$9.48

14

SHIM, TAPPET (2.000) (Honda Code 4105870)

14933-KT7-013

$8.92

14

SHIM, TAPPET (2.025) (Honda Code 4105888)

14934-KT7-013

$8.92

14

SHIM, TAPPET (2.050) (Honda Code 4105896)

14935-KT7-013

$8.92

14

SHIM, TAPPET (2.075) (Honda Code 4105904)

14936-KT7-013

$9.48

14

SHIM, TAPPET (2.100) (Honda Code 4105912)

14937-KT7-013

$8.92

14

SHIM, TAPPET (2.125) (Honda Code 4105920)

14938-KT7-013

$8.92

14

SHIM, TAPPET (2.150) (Honda Code 4105938)

14939-KT7-013

$8.92

14

SHIM, TAPPET (2.175) (Honda Code 4105946)

14940-KT7-013

$8.92

14

SHIM, TAPPET (2.200) (Honda Code 4105953)

14941-KT7-013

$8.92

14

SHIM, TAPPET (2.225) (Honda Code 4105961)

14942-KT7-013

$8.92

14

SHIM, TAPPET (2.250) (Honda Code 4105979)

14943-KT7-013

$8.92

14

SHIM, TAPPET (2.275) (Honda Code 4105987)

14944-KT7-013

$9.48

14

SHIM, TAPPET (2.300) (Honda Code 4105995)

14945-KT7-013

$9.48

14

SHIM, TAPPET (2.325) (Honda Code 4106001)

14946-KT7-013

$9.48

14

SHIM, TAPPET (2.350) (Honda Code 4106019)

14947-KT7-013

$9.48

14

SHIM, TAPPET (2.375) (Honda Code 4106027)

14948-KT7-013

$9.48

14

SHIM, TAPPET (2.400) (Honda Code 4106035)

14949-KT7-013

$9.48

14

SHIM, TAPPET (2.425) (Honda Code 4106043)

14950-KT7-013

$8.92

14

SHIM, TAPPET (2.450) (Honda Code 4106050)

14951-KT7-013

$9.48

14

SHIM, TAPPET (2.475) (Honda Code 4106068)

14952-KT7-013

$9.48

14

SHIM, TAPPET (2.500) (Honda Code 4106076)

14953-KT7-013

$8.92

14

SHIM, TAPPET (2.525) (Honda Code 4106084)

14954-KT7-013

$9.48

14

SHIM, TAPPET (2.550) (Honda Code 4106092)

14955-KT7-013

$9.48

14

SHIM, TAPPET (2.575) (Honda Code 4106100)

14956-KT7-013

$9.48

14

SHIM, TAPPET (2.600) (Honda Code 4106118)

14957-KT7-013

$9.48

14

SHIM, TAPPET (2.625) (Honda Code 4106126)

14958-KT7-013

$9.48

14

SHIM, TAPPET (2.650) (Honda Code 4106134)

14959-KT7-013

$8.92

14

SHIM, TAPPET (2.675) (Honda Code 4106142)

14960-KT7-013

$9.48

14

SHIM, TAPPET (2.700) (Honda Code 4106159)

14961-KT7-013

$8.92

14

SHIM, TAPPET (2.725) (Honda Code 4106167)

14962-KT7-013

$9.05

14

SHIM, TAPPET (2.750) (Honda Code 4106175)

14963-KT7-013

$9.48

14

SHIM, TAPPET (2.775) (Honda Code 4106183)

14964-KT7-013

$9.48

14

SHIM, TAPPET (2.800) (Honda Code 4106191)

14965-KT7-013

$8.92

14

SHIM, TAPPET (2.825)

14966-KT7-013

$9.48

14

SHIM, TAPPET (2.850)

14967-KT7-013

$9.48

14

SHIM, TAPPET (2.875)

14968-KT7-013

$9.48

14

SHIM, TAPPET (2.900)

14969-KT7-013

$8.92
