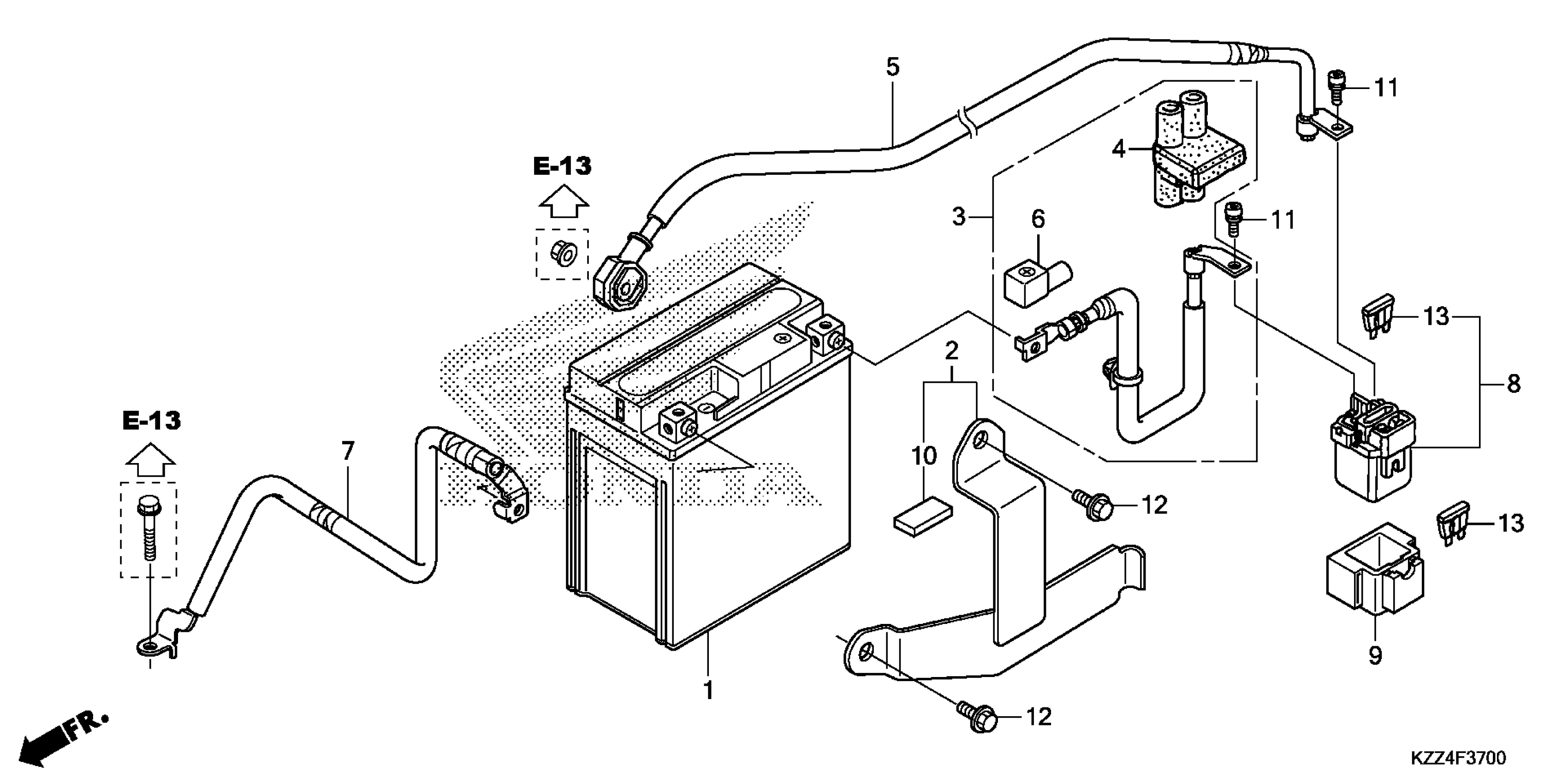

Honda CRF250LAC (16) MOTORCYCLE, THA, VIN# MLHMD381-G5300001 BATTERY Diagram

#

Description

Price

1

BATTERY (YTX7L-BS) (YUASA) (MSDS) This part replaces 31500-KW3-676.

31500-KW3-676AH

$76.28

1

BATTERY (YTX7L-BS) (YUASA) (MSDS)

31500-KW3-676AH

$76.28

1

BATTERY (YTX7L-BS) (YUASA) (MSDS) This part replaces 31500-KW3-677.

31500-KW3-676AH

$76.28

2

BAND, BATTERY

31510-KZZ-900

$10.53

3

CABLE, STARTER MAGNETIC BATTERY

32401-KZZ-900

$22.93

4

COVER, STARTER MAGNETIC TERMINAL

32406-MFF-D00

$28.57

5

CABLE, STARTER MOTOR

32410-KZZ-900

$18.74

6

COVER, BATTERY TERMINAL

32414-GAG-000

$3.62

7

CABLE, BATTERY GROUND

32601-KZZ-900

$14.40

8

SWITCH ASSY., STARTER MAGNETIC

35850-MT4-003

$71.60

9

RUBBER, SHOCK ABSORBER

35856-MT3-000

$8.96

10

RUBBER, BATTERY (10X20X3)

50383-KZZ-900

Unavailable

11

BOLT, SOCKET (5X9)

90111-MR5-000

$2.41

12

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.16

13

FUSE, BLADE (30A)

98200-33000

$1.21
