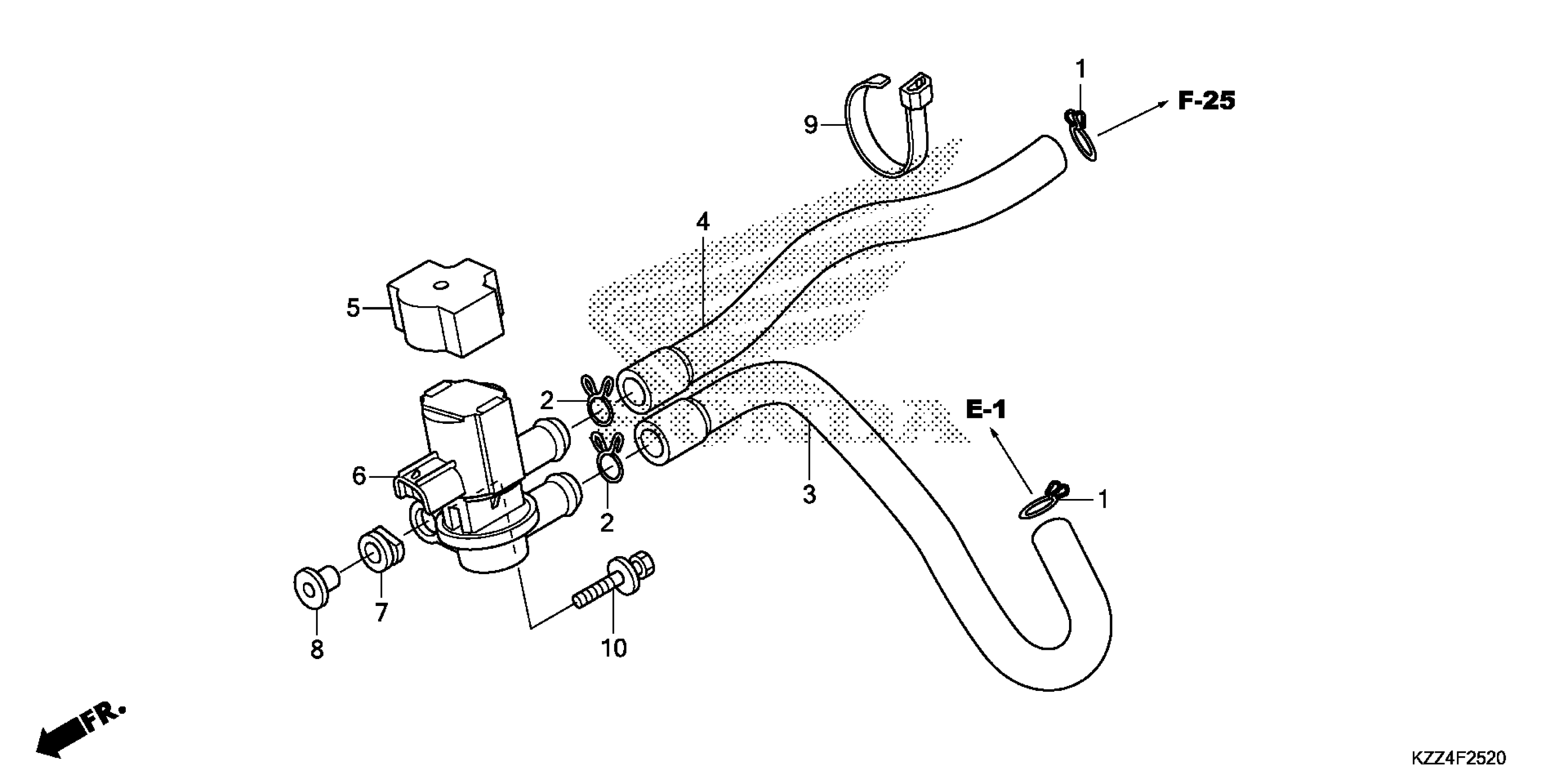

Honda CRF250LAC (16) MOTORCYCLE, THA, VIN# MLHMD381-G5300001 AIR INJECTION SOLENOID VALVE Diagram

#

Description

Price

1

CLIP, OIL DRAIN TUBE

17316-611-000

$9.23

2

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

3

TUBE, AIR INJECTION (AISV-ENG)

18651-KZZ-900

$10.00

4

TUBE (AISV-AIR CLEANER)

18653-KZZ-900

$13.15

5

CAP, AIR INJECTION SOLENOID VALVE

35451-KVZ-630

$3.84

6

VALVE ASSY., AIR INJECTION SOLENOID This part replaces 36450-KVZ-631.

36450-KVZ-632

$61.57

6

VALVE ASSY., AIR INJECTION SOLENOID

36450-KVZ-632

$61.57

7

RUBBER, MOUNTING

43516-MR5-000

$4.92

8

COLLAR, PILLION SEAT

77302-473-000

$4.31

9

BAND, WIRE

90650-KW3-000

$4.48

10

BOLT-WASHER (6X28)

93404-06028-00

$1.49
