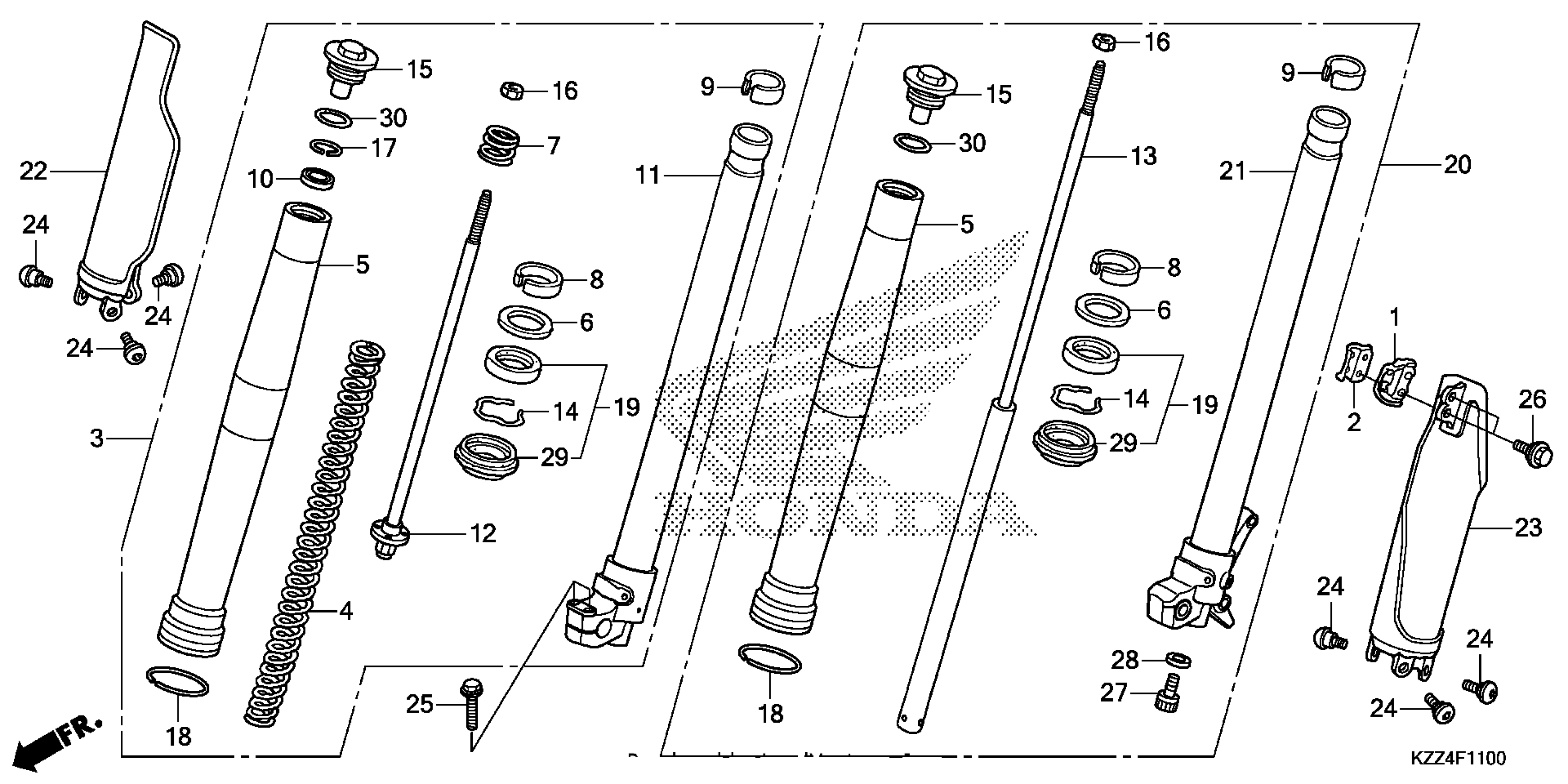

Honda CRF250LAC (14) MOTORCYCLE, THA, VIN# MLHMD381-E5000001 TO MLHMD381-E5099999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, BRAKE HOSE

45461-KZZ-900

$1.49

2

CLAMP B, BRAKE HOSE

45462-KZZ-900

$2.05

3

FORK ASSY., R. FR. (COO) (SHOWA)

51400-KZZ-305

$675.59

4

SPRING, FR. FORK

51401-KZZ-901

$96.62

5

TUBE (OUTER)

51410-KZZ-901

$553.89

6

RING, BACK-UP

51412-KA4-711

$9.65

7

SPRING, REBOUND

51412-KZZ-901

$13.72

8

BUSH, GUIDE

51414-MFN-D01

$7.08

9

BUSH, SLIDER

51415-MGP-D01

$14.84

10

SEAT, STOPPER

51419-KZZ-901

$6.61

11

PIPE, R. SLIDE

51425-KZZ-901

$390.34

12

ROD

51426-KZZ-901

$138.39

13

DAMPER, FR.

51430-KZZ-901

$486.10

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

15

BOLT, FR. FORK

51450-KZZ-901

$51.82

16

NUT, HEX. (10MM)

51451-MAJ-G41

$2.90

17

RING, STOPPER

51456-KZZ-901

$10.20

18

RING, WEAR

51476-KZZ-901

$15.44

19

SEAL SET, FR. FORK

51490-MFL-003

$19.85

20

FORK ASSY., L. FR. (COO) (SHOWA)

51500-KZZ-305

$1,008.79

21

PIPE, L. SLIDE

51525-KZZ-901

$284.90

22

PROTECTOR, R. FR. FORK (TYPE1)

51610-KZZ-900ZC

$29.62

23

PROTECTOR, L. FR. FORK (TYPE1)

51620-KZZ-900ZC

$29.62

24

BOLT, PROTECTOR (6MM)

90106-KZZ-900

$1.49

25

BOLT, FLANGE (8X40)

90108-KZZ-900

$1.49

26

BOLT, FLANGE (6MM)

90113-KZZ-900

$1.49

27

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

28

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

29

DUST SEAL This part replaces 91254-MEJ-003.

91254-MEJ-013

$12.93

30

O-RING (44.7X2.4)

91356-KZ3-003

$3.92
