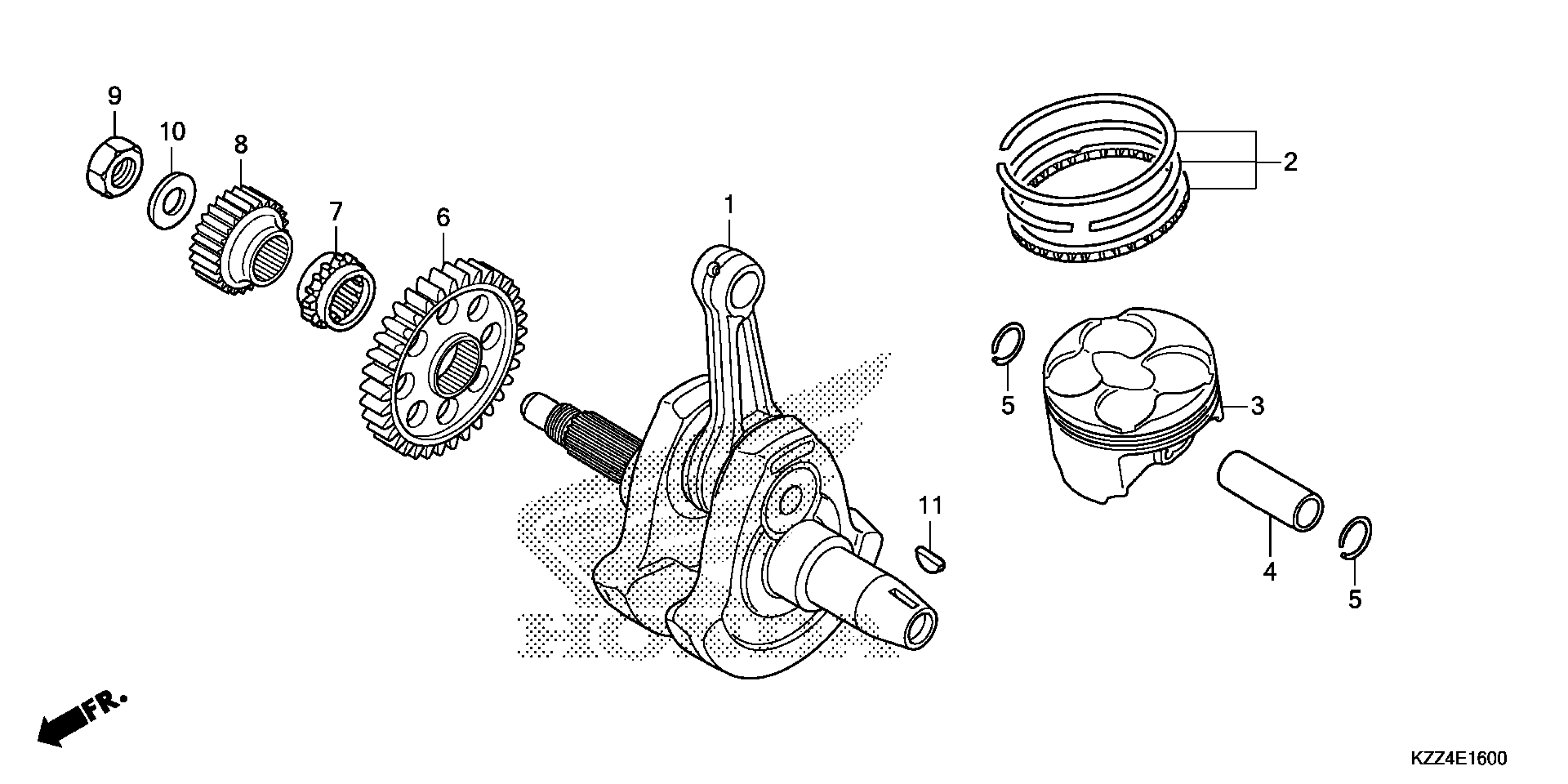

Honda CRF250LAC (14) MOTORCYCLE, THA, VIN# MLHMD381-E5000001 TO MLHMD381-E5099999 CRANKSHAFT@PISTON Diagram

#

Description

Price

1

CRANK SHAFT COMP This part replaces 13000-KYJ-902.

13000-K0A-RB0

$683.23

1

CRANK SHAFT COMP This part replaces 13000-KYJ-903.

13000-K0A-RB0

$683.23

1

CRANK SHAFT COMP This part replaces 13000-KYJ-904.

13000-K0A-RB0

$683.23

2

RING SET, PISTON (STD)

13010-KYJ-305

$20.91

3

PISTON (STD)

13101-KYJ-900

$74.49

4

PIN, PISTON

13111-MEL-000

$75.11

5

CLIP, PISTON PIN (17MM)

13112-KYJ-900

$1.49

6

GEAR, BALANCER DRIVE (34T)

13417-KYJ-900

$25.20

7

SPROCKET, TIMING (17T)

14311-KYJ-900

$10.21

8

GEAR, PRIMARY DRIVE (26T)

23121-KYJ-900

$30.70

9

NUT, LOCK (16MM)

90235-KYJ-900

$5.66

10

WASHER (16MM)

90434-KPS-900

$2.05

11

KEY, WOODRUFF (25X18)

90742-KYJ-900

$2.34
