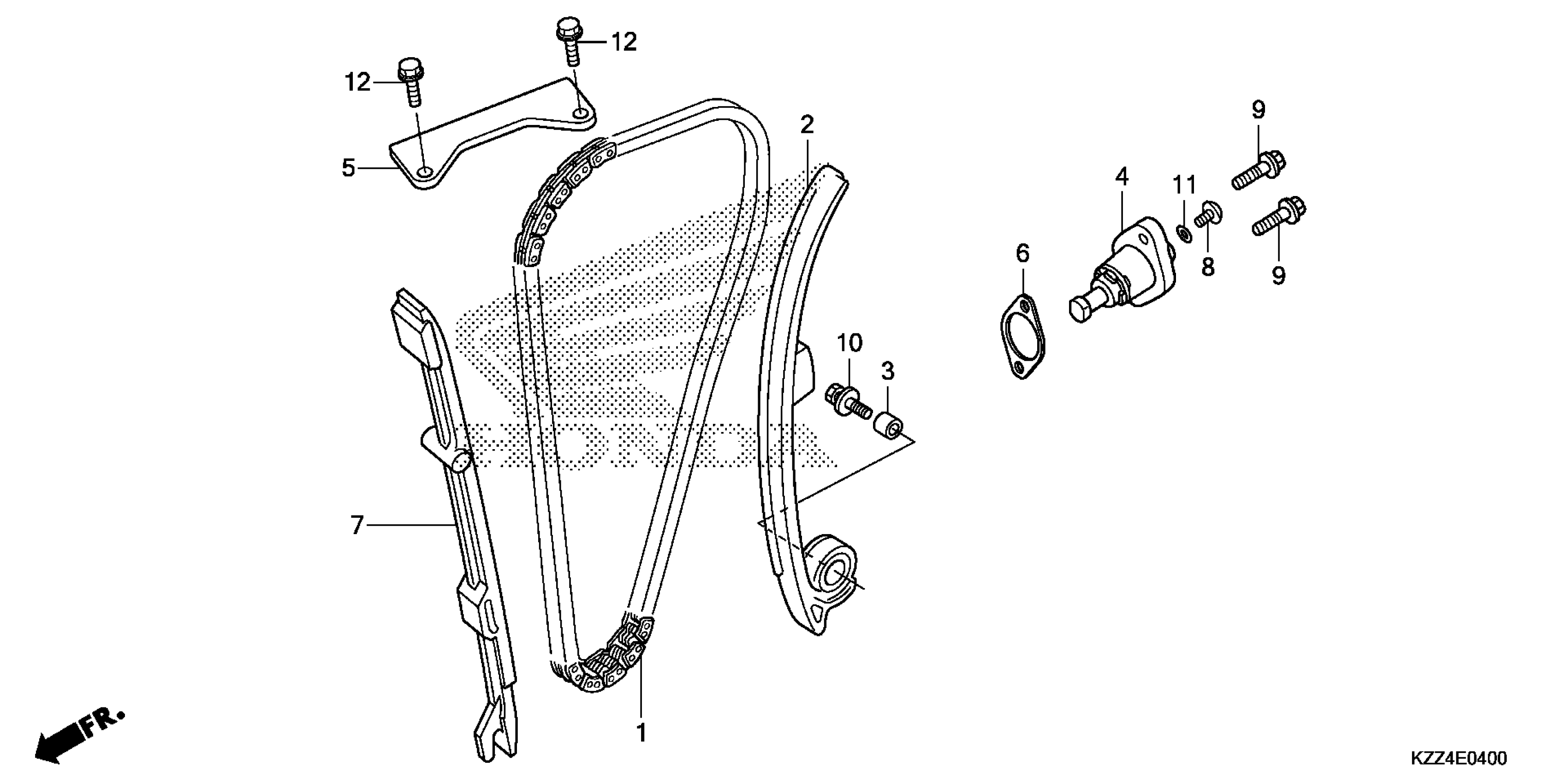

Honda CRF250LAC (14) MOTORCYCLE, THA, VIN# MLHMD381-E5000001 TO MLHMD381-E5099999 CAM CHAIN@TENSIONER Diagram

CHAIN, CAM (128L) (DAIDO)

14401-KYJ-901

$55.05

TENSIONER, CAM CHAIN

14510-KYJ-900

$42.82

COLLAR, TENSIONER

14517-KYJ-900

$1.49

LIFTER ASSY., TENSIONER

14520-KZZ-901

$84.12

GUIDE B, CAM CHAIN

14546-KYJ-900

$7.70

GASKET, TENSIONER LIFTER

14560-KGH-900

$1.49

GUIDE A, CAM CHAIN

14611-KYJ-900

$6.41

SCREW, PAN (6X6)

90005-KYJ-900

$1.49

BOLT, FLANGE (6X22) (NSHF)

90011-KYJ-900

$1.49

BOLT-WASHER (6X25)

90022-KYJ-900

$1.49

O-RING (1.5X9.5)

91306-MG3-000

$2.33

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
