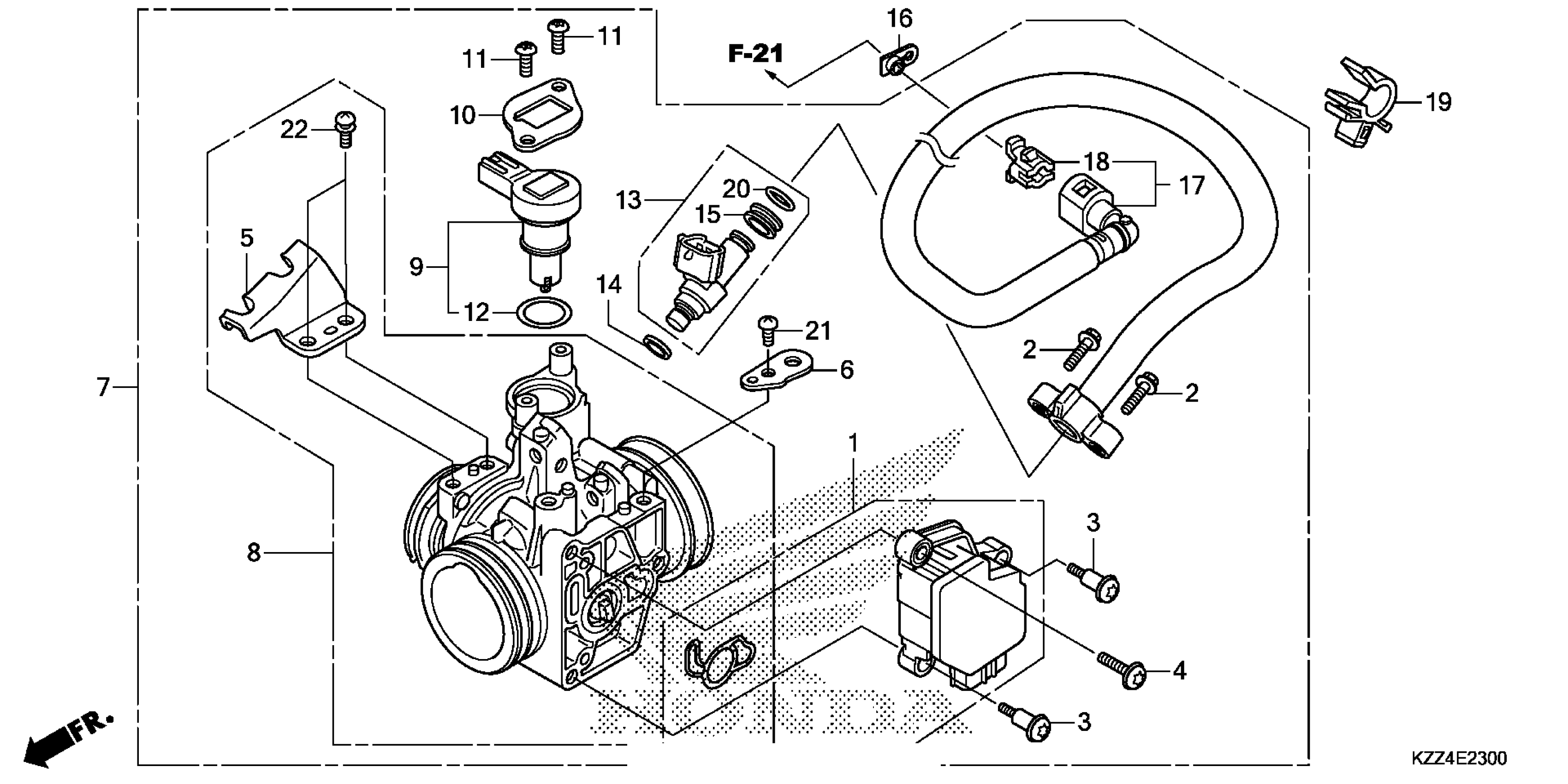

Honda CRF250LAC (13) MOTORCYCLE, THA, VIN# MLHMD381-D5000001 TO MLHMD381-D5099999 THROTTLE BODY Diagram

SENSOR SET

16060-KYJ-901

$63.63

BOLT, FLANGE (5X20)

16080-KPH-701

$4.29

SCREW, TORX (5X8.7)

16081-KYJ-901

$2.53

SCREW, TORX (5X17)

16082-KYJ-901

$2.00

STAY, WIRE

16169-MFR-671

$15.81

STAY, HARNESS CLAMP

16196-HP6-A01

$8.69

BODY ASSY., THROTTLE (GQ32A A)

16400-KZZ-901

$345.38

BODY SET

16410-KZZ-901

$71.46

VALVE SET, IDLE AIR CONTROL

16430-KYJ-901

$143.29

PLATE, IDLE AIR CONTROL VALVE

16432-MFE-641

$6.72

SCREW, TORX

16433-HN8-A61

$0.34

O-RING (17.8X1.9)

16435-HN8-A61

$8.15

INJECTOR ASSY., FUEL

16450-MFE-641

$157.47

SEAL RING, INJECTOR

16472-MCW-000

$2.21

CUSHION RING, INJECTOR

16473-P7A-004

$6.94

DAMPER, CONNECTOR

16719-MEW-920

$2.80

HOSE, FUEL FEED

17526-KZZ-901

$72.26

RETAINER

17711-MGE-003

$6.05

CLAMP, HOSE (BLACK)

90611-KZZ-901

$0.76

O-RING (7.8X1.9)

91301-P7A-004

$3.21

SCREW, PAN (5X10)

93500-05010-0H

Unavailable

SCREW, PAN (5X10) This part replaces 93500-05010-08.

93500-05010-0H

Unavailable

SCREW, PAN (5X10) This part replaces 93500-05010-1H.

93500-05010-0H

Unavailable

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.13

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.13
