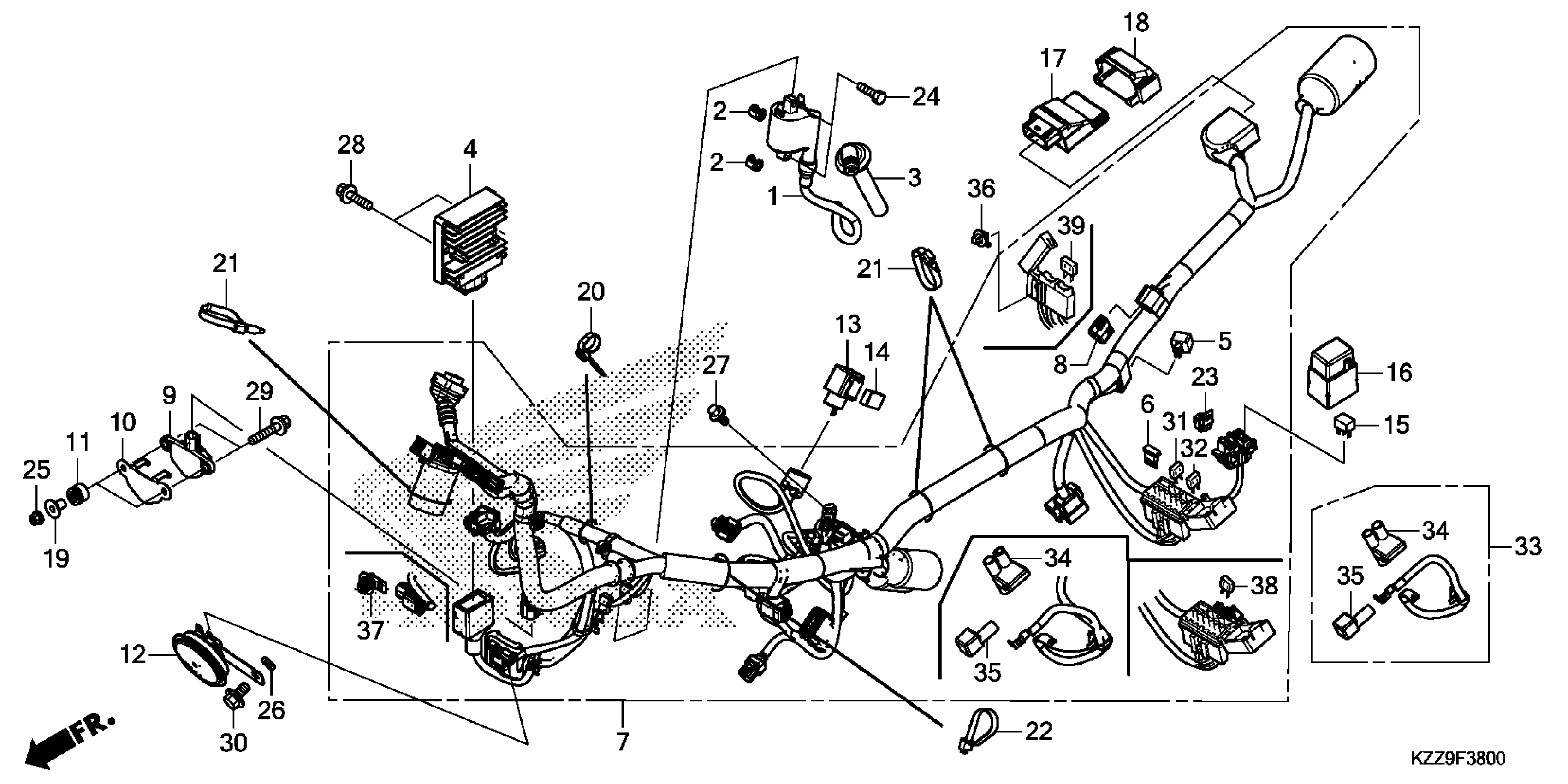

Honda CRF250LAAC (20) MOTORCYCLE, THA, VIN# MLHMD445-L5300001 WIRE HARNESS (1) Diagram

COIL, IGNITION

30510-KZZ-901

$31.77

SPACER, IGNITION COIL

30520-GFM-900

$2.38

CAP ASSY., NOISE SUPPRESSOR

30700-KZZ-901

$34.51

RECTIFIER ASSY., REGULATOR

31600-KVK-901

$206.54

RECTIFIER, SILICON

31700-MM8-610

$22.75

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.70

WIRE HARNESS

32100-KZZ-G90

$690.65

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.12

SENSOR ASSY., BANK ANGLE (M6)

35160-KVS-751

$98.77

STAY, BANK ANGLE SENSOR

35161-KZZ-900

$2.35

RUBBER, SPEEDOMETER MOUNTING

37244-MM4-000

$4.76

HORN (HIGH)

38110-KYJ-901

$25.25

RELAY, TURN SIGNAL (MITSUBA)

38301-KYJ-641

$68.43

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$2.80

RELAY, POWER (MICRO ISO 4P) (OMRON)

38501-KWN-901

$5.70

COVER, RELAY (2P)

38506-KZZ-900

$3.29

PGM-FI UNIT

38770-KZZ-J11

$163.10

CUSHION, PGM-FI UNIT

38771-KTY-D30

$1.38

COLLAR, PILLION SEAT

77302-473-000

$3.93

BAND, WIRE

90650-KW3-000

$4.16

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

BAND, WIRE HARNESS

90651-MA6-720

$3.47

CLIP, CONNECTOR (DARK GREEN)

91565-S0X-003

$3.30

BOLT, HEX. (6X20)

92101-06020-4J

$1.26

NUT, FLANGE (6MM)

94050-06000

$0.59

WASHER, PLAIN (8MM)

94102-08000

$0.86

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

BOLT, FLANGE (6X30)

95701-06030-00

$1.71

BOLT, FLANGE (8X14)

95701-08014-00

$1.19

FUSE, MINI (5A) (Honda Code 5026521)

98200-40500

$1.10

FUSE, MINI (10A)

98200-41000

$1.20

COVER, STARTER MAGNETIC TERMINAL

32406-MFF-D00

$28.16

COVER, BATTERY TERMINAL

32414-GAG-000

$3.57

CLIP, CONNECTOR (NATURAL)

91533-S5A-003

$9.96

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$5.71

FUSE, MINI (10A)

98200-41000

$1.20

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.59
