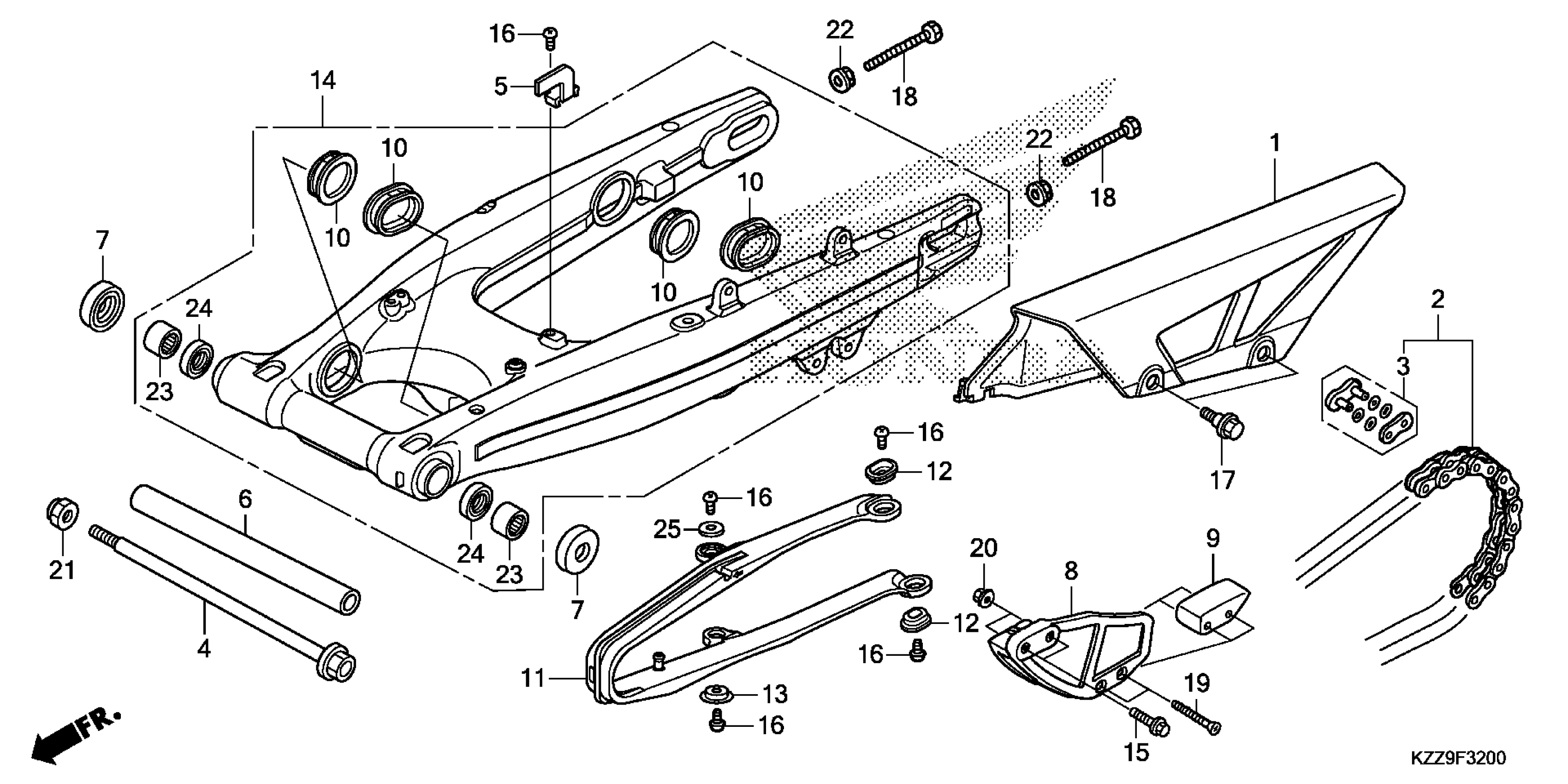

Honda CRF250LAAC (20) MOTORCYCLE, THA, VIN# MLHMD445-L5300001 SWINGARM Diagram

CASE, DRIVE CHAIN

40510-KZZ-900

$15.77

CHAIN, DRIVE (DID520VF-120ZB) (DAIDO) (STANDARD LINK 108L)

40540-KYJ-902

$138.46

MASTER LINK (DAIDO)

40545-KYJ-902

$14.88

BOLT, SWINGARM PIVOT

52101-KZZ-900

$13.97

STAY, CHAIN CASE

52131-KZZ-900

$1.49

COLLAR, CENTER PIVOT DISTANCE

52141-KZZ-900

$56.57

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$17.31

GUIDE, CHAIN

52146-KV6-010

$33.73

SLIDER, CHAIN GUIDE

52147-KV6-010

$20.76

CAP, RR. SWINGARM

52161-KZZ-900

$2.74

SLIDER, CHAIN

52170-KZZ-900

$19.83

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

WASHER, CHAIN SLIDER

52171-MAN-620

$3.21

SWINGARM SUB-ASSY., RR.

52200-KZZ-900

$633.90

BOLT, FLANGE (6X20)

90103-KZZ-900

$1.49

SCREW, PAN (5X12)

90107-MJP-G50

$1.89

BOLT, FLANGE (6MM)

90111-KZZ-900

$1.49

BOLT, HEX. (8X47.5)

90112-KZZ-900

$1.49

SCREW, FLAT (6X53)

90115-KZZ-900

$1.49

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

NUT, U (14MM) (FUJI SEIMITSU)

90305-KCJ-951

$6.05

NUT, HEX. (10MM)

90309-357-000

$3.40

BEARING, NEEDLE (20X26X20) (TOYO) BEARING, SWINGARM PIVOT

91070-GC4-601

$24.72

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

WASHER, PLAIN (5MM)

94103-05700

$1.49
