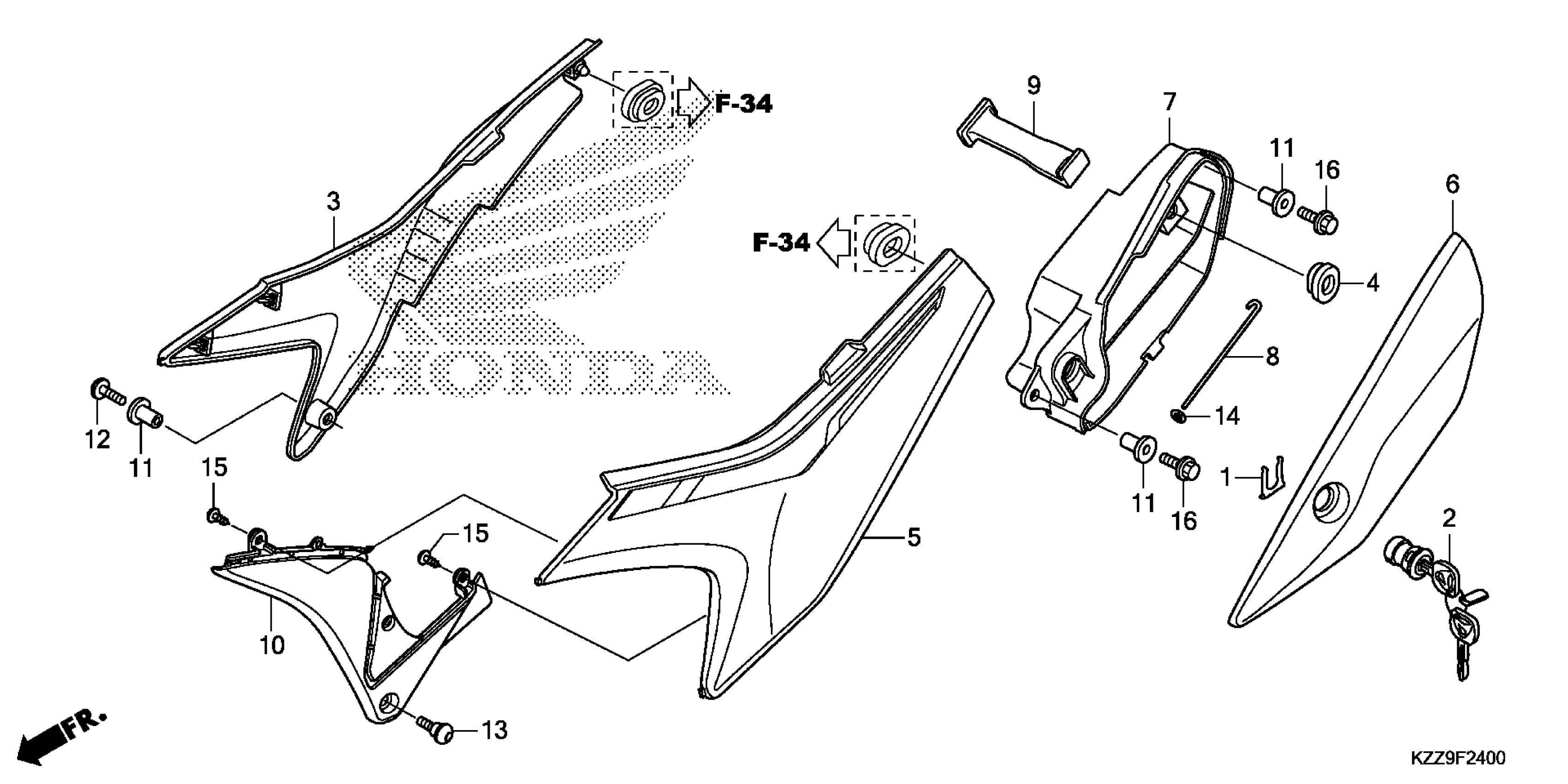

Honda CRF250LAAC (20) MOTORCYCLE, THA, VIN# MLHMD445-L5300001 SIDE COVER (1) Diagram

SPRING, LOCK KEY SETTING

37222-MCS-G00

$4.17

LOCK ASSY., POCKET LID

77233-MBL-611

$17.98

COVER SET, R. SIDE (TYPE1) (WL)

83500-KZZ-D10ZA

$28.80

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

COVER SET, L. SIDE (TYPE1) (WL)

83600-KZZ-D10ZA

$69.61

COVER, TOOL BOX *NH196* (ROSS WHITE)

83602-KZZ-900ZB

$27.29

BOX, TOOL

83603-KZZ-900

$11.79

HINGE, TOOL BOX

83604-KZZ-900

$1.49

BAND, TOOL

83607-KZZ-900

$4.92

COVER, L. SIDE (LOWER)

83701-KZZ-900

$6.41

COLLAR, SIDE COVER

83905-KZZ-900

$1.49

SCREW, PAN (6X18)

90132-KZZ-900

$2.26

SCREW, PAN (6X14)

90133-KPP-T00

$1.49

NUT, PUSH (2.6)

90310-ZB7-701

$2.18

SCREW, TAPPING (4X10)

93903-24280

$1.49

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
