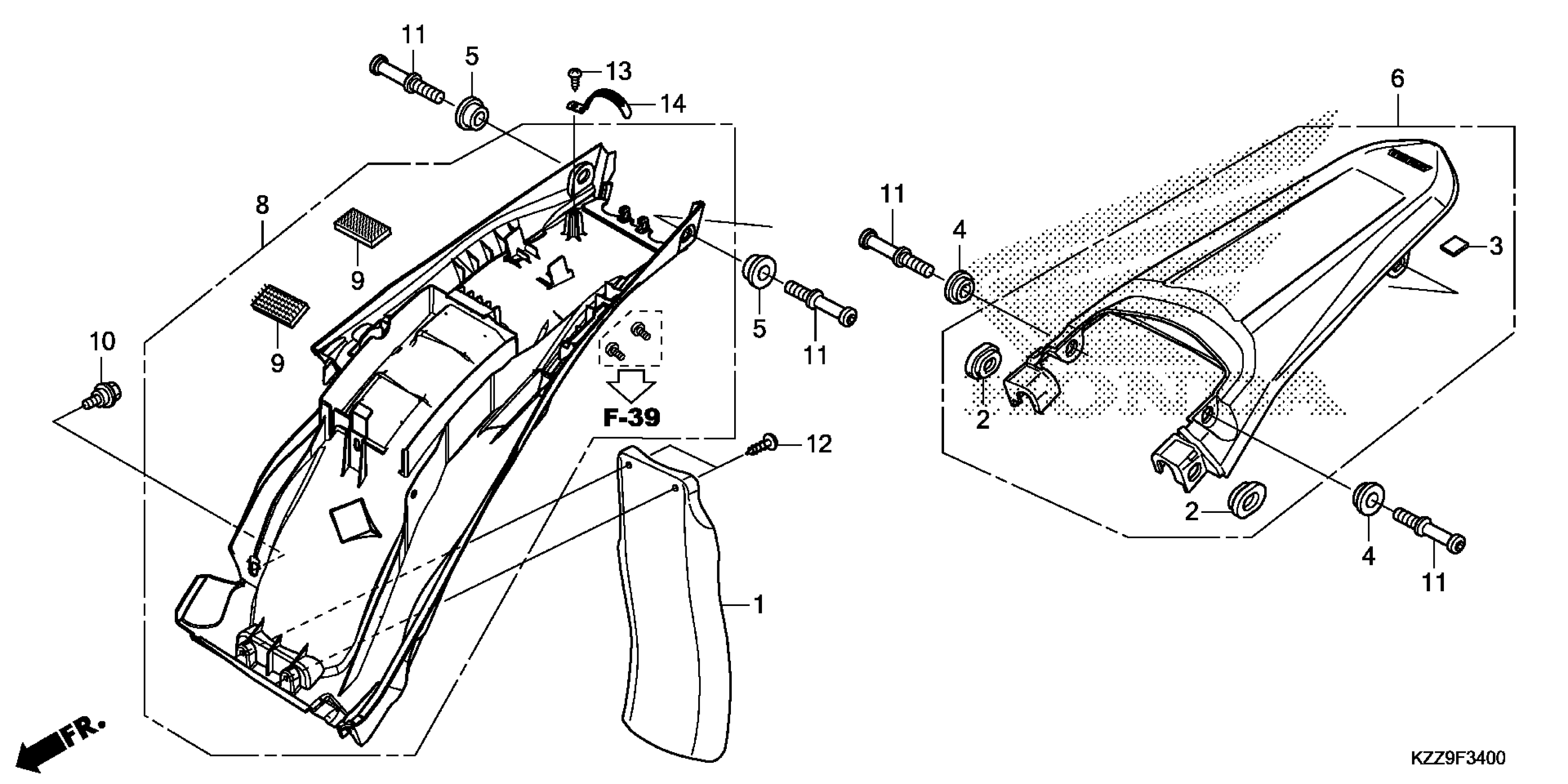

Honda CRF250LAAC (20) MOTORCYCLE, THA, VIN# MLHMD445-L5300001 REAR FENDER Diagram

SPLASH GUARD

17218-KZZ-900

$5.41

GROMMET, SPEAKER PANEL

64266-MG9-770

$2.99

RUBBER SPONGE, RR. FENDER

64465-KZZ-J00

$1.49

COLLAR A, FENDER SETTING

77223-KZZ-900

$1.90

COLLAR B, FENDER SETTING

77224-KZZ-900

$1.49

FENDER SET, RR. (TYPE1) (WL)

80010-KZZ-D10ZC

$33.57

FENDER SET B, RR.

80150-KZZ-307

$30.69

TAPE, MAGIC (25X50) (FEMALE)

83643-355-300

$2.92

BOLT, FLANGE (6MM)

90110-KZZ-900

$1.49

BOLT, HOOK (8MM)

90116-KZZ-900

$2.48

SCREW, TAPPING (5X20)

93913-15510

$1.49

SCREW, TAPPING (4X10)

93913-14120

$1.49

CLIP (4X90)

94591-49000

$3.01
