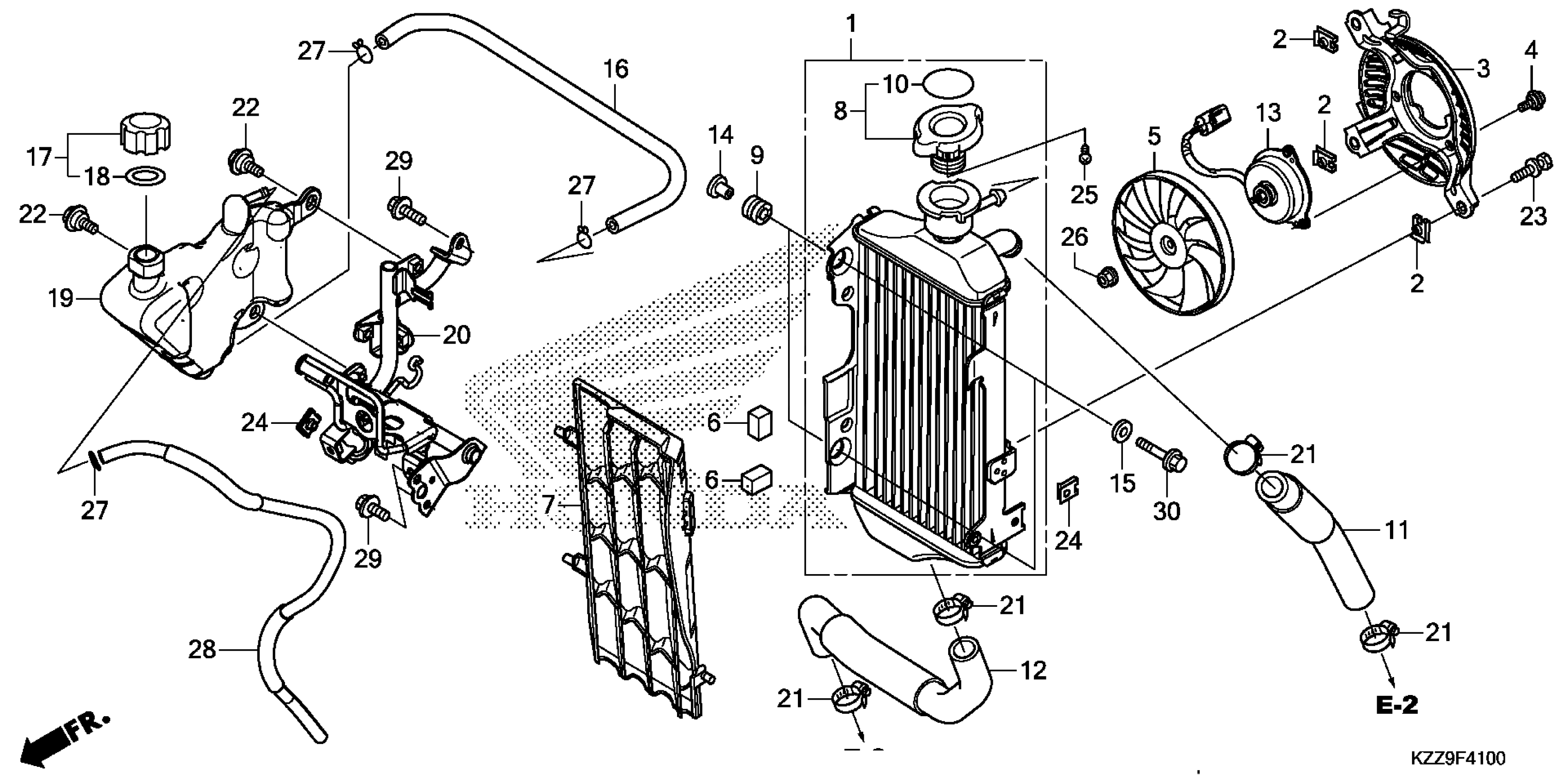

Honda CRF250LAAC (20) MOTORCYCLE, THA, VIN# MLHMD445-L5300001 RADIATOR Diagram

#

Description
Price

1

RADIATOR

19010-KZZ-D11

$128.48

2

NUT, SETTING (6MM)

19014-KEA-003

$3.10

3

SHROUD

19015-KZZ-902

$7.40

4

SCREW, PAN (4X8.5)

19016-KEA-003

$1.62

5

FAN, COOLING

19020-KVZ-631

$29.32

6

RUBBER, RADIATOR

19022-KZZ-900

$2.15

7

GRILLE, RADIATOR

19034-KZZ-900

$14.24

8

CAP, RADIATOR (TOYO)

19037-KZZ-D11

$27.15

9

RUBBER, RADIATOR MOUNTING

19051-KRN-000

$2.67

10

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

11

HOSE, RADIATOR (UPPER)

19062-KZZ-900

$18.49

12

HOSE, RADIATOR (LOWER)

19067-KZZ-900

$26.72

13

MOTOR ASSY., FAN (TOYO)

19080-KZZ-J01

$86.62

14

COLLAR, RADIATOR MOUNTING

19091-KZZ-900

$1.49

15

WASHER, RADIATOR MOUNTING

19092-KZZ-900

$1.49

16

TUBE, RESERVE TANK

19101-KZZ-J00

$12.13

17

CAP ASSY., RESERVE TANK

19105-KZZ-900

$5.14

18

GASKET, RESERVE TANK

19107-MG8-000

$5.05

19

TANK, RADIATOR RESERVE

19110-KZZ-J00

$13.84

20

STAY, RESERVE TANK

19150-KZZ-J00

$52.67

21

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

22

BOLT, FLANGE (6MM)

90110-KZZ-900

$1.49

23

BOLT-WASHER (6X16)

90120-KCR-003

$4.39

24

NUT, CLIP (6MM)

90303-KZZ-J00

$1.49

25

SCREW, TAPPING (3X6)

93901-22020

$1.49

26

NUT, FLANGE (3MM)

90315-MFL-003

$2.33

27

CLIP, TUBE (B10)

95002-02100

$1.90

28

TUBE, RESERVE TANK (DRAIN)

19102-KZZ-J00

$12.44

29

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

30

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
