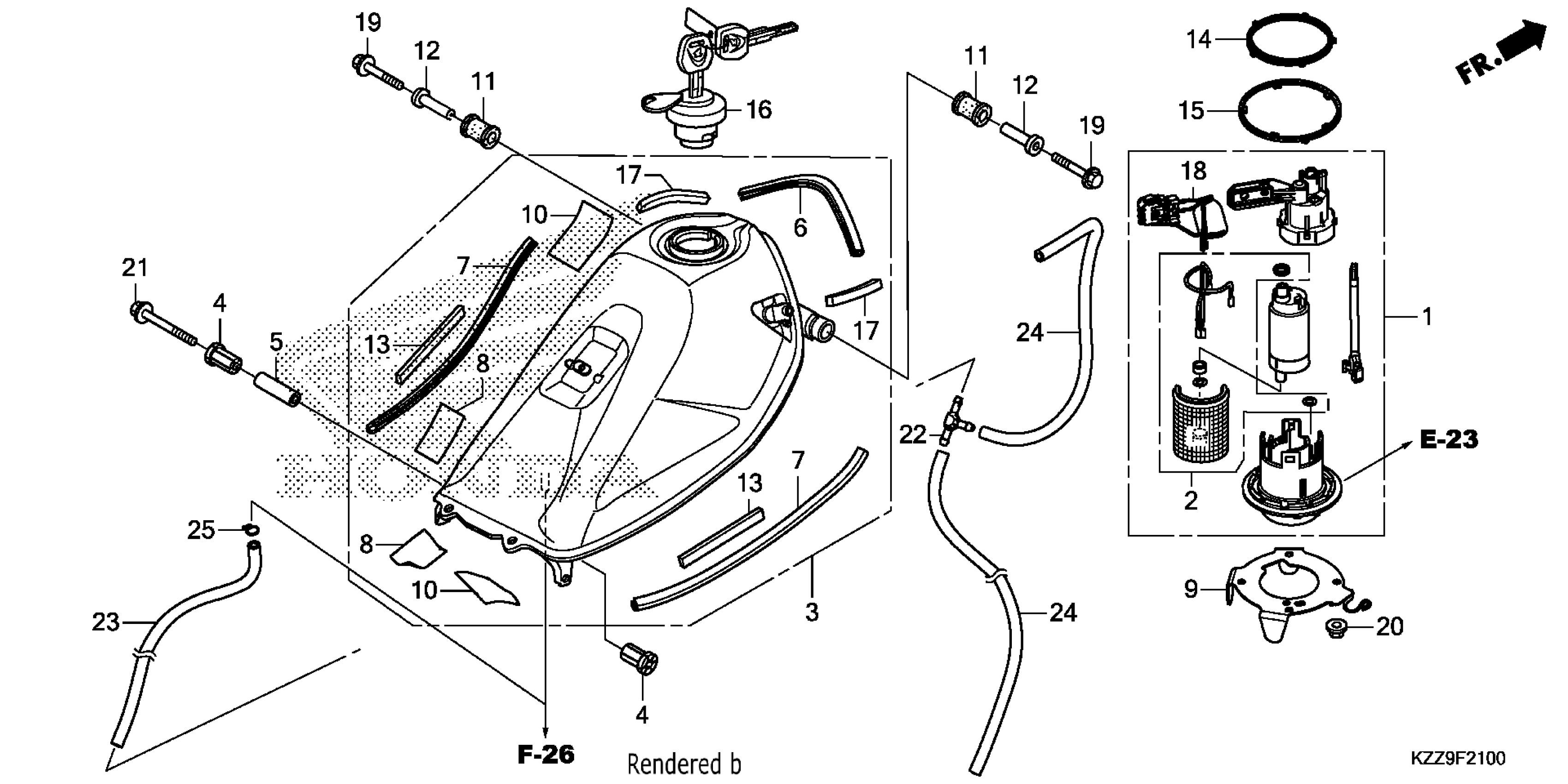

Honda CRF250LAAC (20) MOTORCYCLE, THA, VIN# MLHMD445-L5300001 FUEL TANK (1) Diagram

PUMP ASSY., FUEL (MSDS)

16700-KZZ-D21

$415.54

FILTER SET

16707-K45-N01

$24.22

TANK ASSY., FUEL *NH105* (MAT BLACK)

17500-KZZ-D20ZA

$281.80

CUSHION, FUEL TANK PIVOT

17506-KZZ-900

$2.05

COLLAR, TANK SET

17507-KZZ-900

$1.59

TRIM A, FUEL TANK

17516-KZZ-900

$6.31

TRIM B, FUEL TANK

17517-KZZ-900

$7.19

SEAL, TANK

17521-KY1-300

$2.31

PLATE, SETTING

17527-KZZ-J00

$8.11

TAPE B, TANK GUARD

17528-KCZ-930

$3.39

RUBBER, RR. TANK MOUNTING (FRONT SIDE)

17534-MFJ-D00

$4.75

COLLAR

17538-KZZ-900

$2.41

RUBBER, TANK GUARD

17544-KZZ-900

$1.49

GASKET, FUEL PUMP

17572-KPN-A71

$20.60

DUST SEAL

17573-KPN-A71

$12.89

CAP, FUEL FILLER (HONDALOCK) This part replaces 17620-MEG-003.

17620-MEG-013

$72.96

CAP, FUEL FILLER (HONDALOCK)

17620-MEG-013

$72.96

CUSHION, SHROUD

17850-KZZ-900

$1.49

FUEL UNIT

37800-KZZ-D21

$35.87

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
