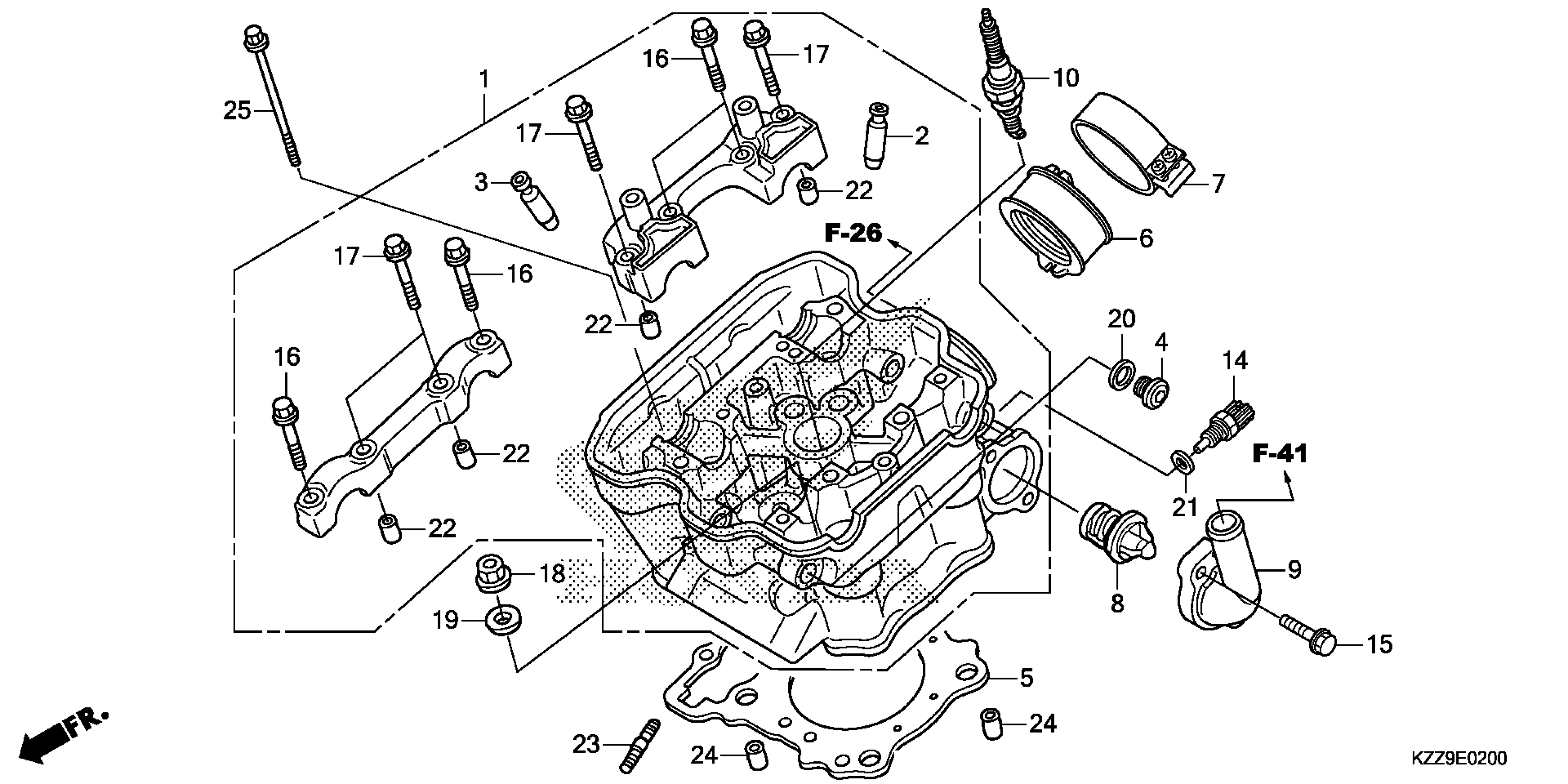

Honda CRF250LAAC (20) MOTORCYCLE, THA, VIN# MLHMD445-L5300001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12010-K33-950

$119.03

2

GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE)

12204-KYJ-305

$17.27

3

GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE)

12205-KYJ-305

$17.27

4

BOLT, SEALING (12MM)

12207-KYJ-900

$1.35

5

GASKET, CYLINDER HEAD

12251-KYJ-901

$20.16

6

INSULATOR, THROTTLE BODY

16211-KYJ-901

$8.83

7

BAND, INSULATOR

16217-KYJ-900

$4.94

8

THERMOSTAT

19300-KGF-911

$50.64

9

COVER, THERMOSTAT

19321-KZZ-900

$11.20

10

SPARK PLUG (SIMR8A9) (NGK)

31916-MEH-003

$16.40

14

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$27.61

15

BOLT, FLANGE (6X22) (NSHF)

90011-KYJ-900

$0.43

16

BOLT, FLANGE (6X32)

90017-KYJ-900

$0.70

17

BOLT, FLANGE (6X39.5)

90019-KYJ-900

$0.75

18

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.41

18

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.41

18

NUT, FLANGE (10MM)

94050-10000

$1.41

19

WASHER (10MM)

90410-GCC-000

$1.96

20

WASHER (12.2X17X1.5)

90418-KYJ-900

$0.86

21

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.38

22

PIN, DOWEL (8X14)

90702-KRM-840

$0.61

22

PIN, DOWEL (8X14) This part replaces 91105-KSP-910.

90702-KRM-840

$0.61

22

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

23

BOLT, STUD (8X22)

92900-08022-3E

$2.10

24

PIN A, DOWEL (12X16)

94301-12160

Unavailable

25

BOLT, FLANGE (6X120)

95701-06120-00

$0.99
