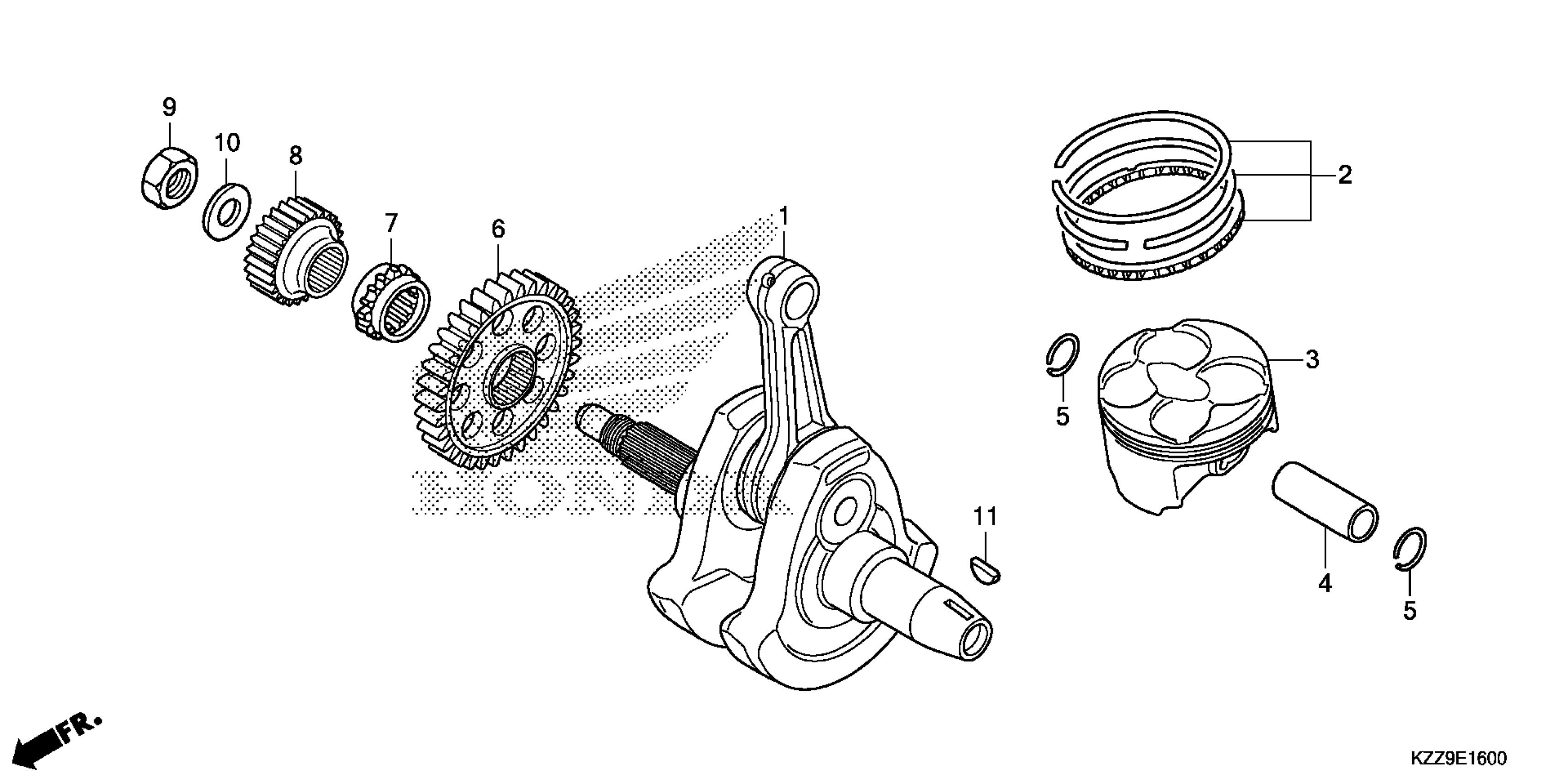

Honda CRF250LAAC (20) MOTORCYCLE, THA, VIN# MLHMD445-L5300001 CRANKSHAFT@PISTON Diagram

#

Description

Price

1

CRANK SHAFT COMP This part replaces 13000-KYJ-904.

13000-K0A-RB0

$683.23

2

RING SET, PISTON (STD)

13011-KZZ-D20

$27.51

2

RING SET, PISTON (0.25) | (Optional).

13021-KZZ-D20

$19.26

2

RING SET, PISTON (0.50) | (Optional).

13031-KZZ-D20

$19.26

3

PISTON

13101-K33-J00

$73.30

3

PISTON (0.25) | (Optional).

13102-KZZ-D21

Unavailable

3

PISTON (0.50) | (Optional).

13103-KZZ-D21

Unavailable

4

PIN, PISTON

13111-MEL-000

$75.11

5

CLIP, PISTON PIN (17MM)

13112-K33-D00

$1.49

6

GEAR, BALANCER DRIVE (35T)

13417-K33-D00

$37.62

7

SPROCKET, TIMING (17T)

14311-KYJ-900

$10.21

8

GEAR, PRIMARY DRIVE (26T)

23121-K33-D01

$28.51

9

NUT, LOCK (16MM)

90235-KYJ-900

$5.66

10

WASHER (16MM)

90434-KPS-900

$2.05

11

KEY, WOODRUFF (25X18)

90742-KYJ-900

$2.34
