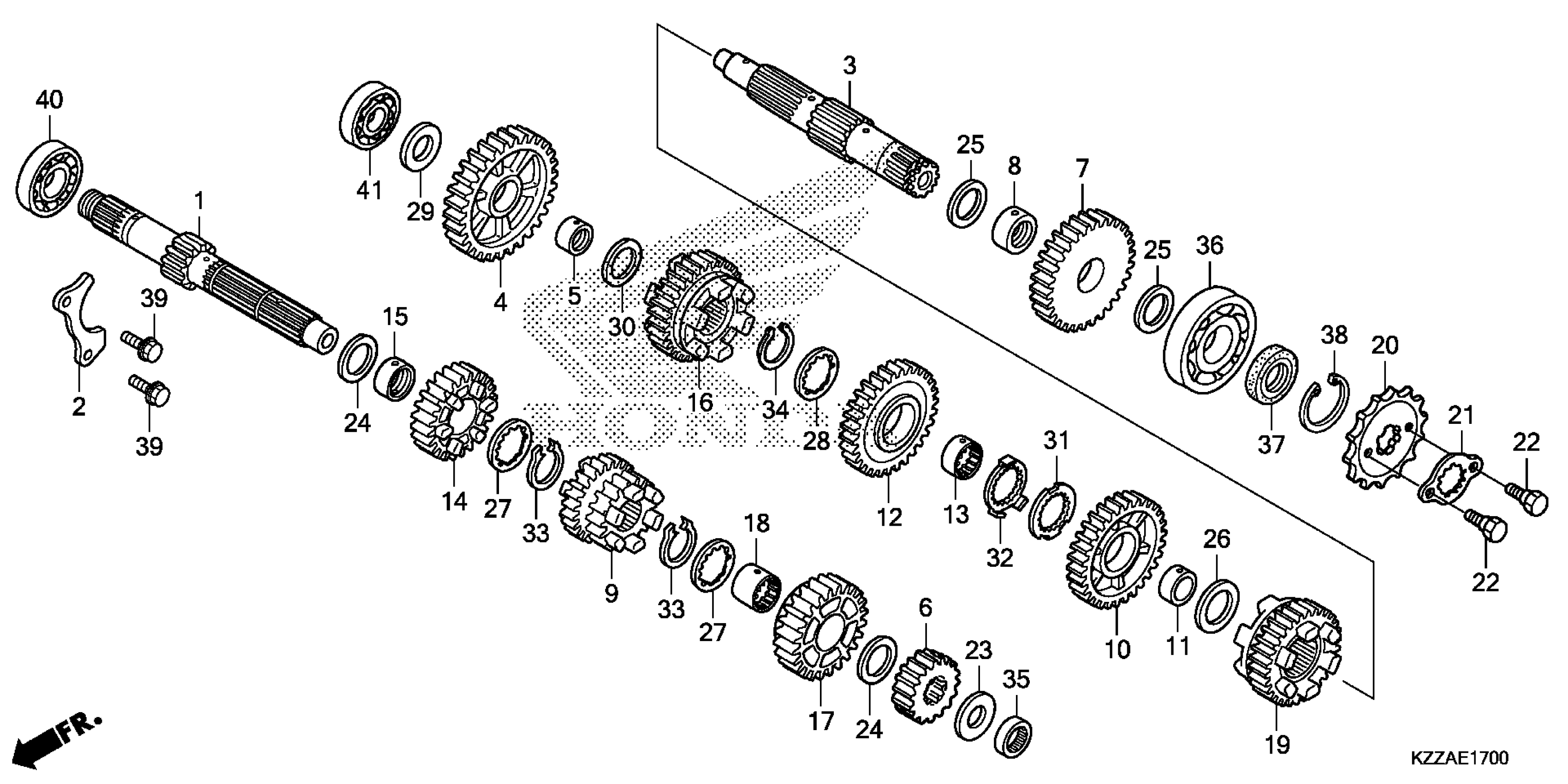

Honda CRF250LAAC (18) MOTORCYCLE, THA, VIN# MLHMD445-J5100001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (12T)

23211-KZZ-900

$30.18

2

PLATE, BEARING SETTING

23212-KYJ-900

$2.16

3

COUNTERSHAFT

23221-KZZ-901

$35.93

4

GEAR, COUNTERSHAFT LOW (40T)

23411-KZZ-900

$23.49

5

COLLAR (20X23X10.5)

23412-KYJ-900

$12.16

6

GEAR, MAINSHAFT SECOND (17T)

23421-KZZ-900

$9.76

7

GEAR, COUNTERSHAFT SECOND (36T)

23431-KZZ-900

$18.32

8

COLLAR (22X25X11)

23432-KYJ-900

$9.19

9

GEAR, MAINSHAFT THIRD & FOURTH (21T/23T)

23441-KZZ-900

$39.01

10

GEAR, COUNTERSHAFT THIRD (33T)

23451-KZZ-900

$20.63

11

COLLAR (25X28X10)

23452-KYJ-900

$9.76

12

GEAR, COUNTERSHAFT FOURTH (30T)

23471-KZZ-900

$19.90

13

COLLAR, SPLINE (25X10)

23472-KYJ-900

$14.44

14

GEAR, MAINSHAFT FIFTH (29T)

23481-KZZ-D20

$16.60

15

BUSH (20X23X17.4)

23482-KYJ-900

$27.94

16

GEAR, COUNTERSHAFT FIFTH (32T)

23491-KZZ-D20

$26.56

17

GEAR, MAINSHAFT SIXTH (31T)

23501-KZZ-D20

$18.31

18

COLLAR, SPLINE (23MM)

23502-KYJ-900

$19.37

19

GEAR, COUNTERSHAFT SIXTH (30T)

23511-KZZ-D20

$28.00

20

SPROCKET, DRIVE (14T)

23801-KYJ-901

$11.33

21

PLATE, FIXING

23802-KYJ-900

Unavailable

22

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.41

23

WASHER (17X26X1.0)

90405-KYJ-900

$1.15

24

WASHER (20X27X1.0)

90406-KYJ-900

$1.18

25

WASHER (22X29X1.0)

90407-KYJ-900

$1.15

26

WASHER (25X32X1.0)

90408-KYJ-900

$1.18

27

WASHER, SPLINE (20X26X1.6)

90451-KYJ-900

$0.97

28

WASHER, SPLINE (25X31X1.0)

90452-KYJ-900

$0.99

29

WASHER (17X28X1.0)

90453-KYJ-900

$1.18

30

WASHER B, THRUST (20MM)

90454-KPS-900

$0.74

31

WASHER, SPLINE (25X42X1.6)

90454-KYJ-900

$1.37

32

WASHER, LOCK (25MM)

90455-KYJ-900

$28.97

33

CIRCLIP (OUTER) (20MM)

90601-KYJ-900

$7.56

34

CIRCLIP (OUTER) (25MM)

90602-KYJ-900

$6.35

35

BEARING, NEEDLE (17X27X13)

91003-KYJ-901

$19.12

36

BEARING, RADIAL BALL (63/22)

91005-KYJ-901

$19.35

37

OIL SEAL (22X36X5)

91207-KYJ-901

$2.74

38

CIRCLIP (INNER) (37MM)

94520-37000

$2.57

39

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

40

BEARING, RADIAL BALL (6304)

96100-63040-00

$13.22

41

BEARING, RADIAL BALL (6203U)

96140-62030-00

$17.12
