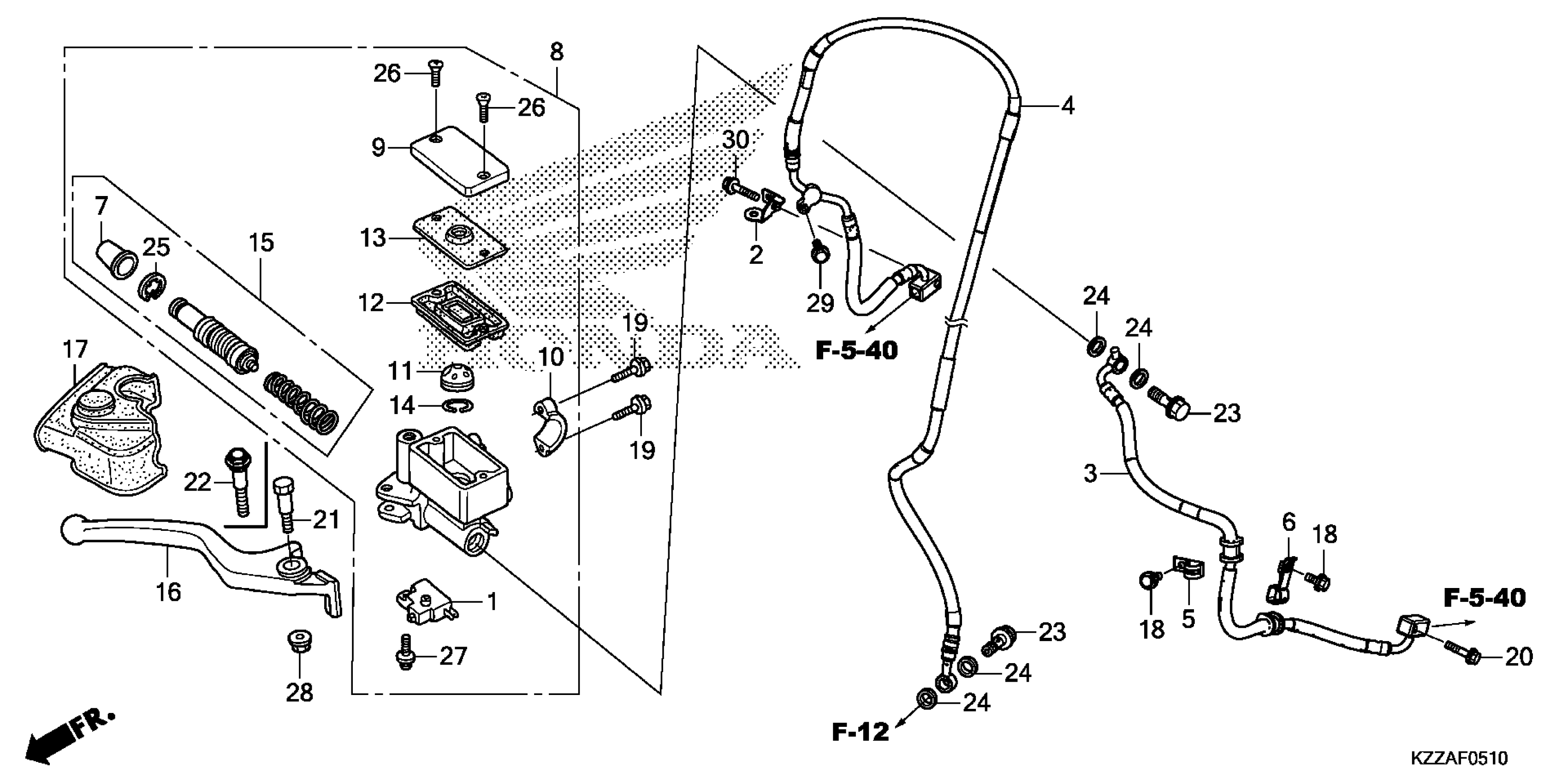

Honda CRF250LAAC (18) MOTORCYCLE, THA, VIN# MLHMD445-J5100001 FRONT BRAKE MASTER CYLINDER (2) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

2

STAY, FR. SPEED SENSOR WIRE

38526-KZZ-J80

$7.16

3

HOSE A, FR. BRAKE

45124-KZZ-G41

$45.16

4

HOSE D, FR. BRAKE

45127-KZZ-G41

$104.43

5

CLAMP, FR. BRAKE HOSE

45181-KZZ-G40

$12.46

6

CLAMP B, FR. BRAKE HOSE

45182-KZZ-J80

$7.62

7

BOOT

45504-410-003

$12.16

8

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-KZZ-305

$76.67

8

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-KZZ-901.

45510-KZZ-305

$76.67

9

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

10

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

11

SEPARATOR

45518-MEN-J01

$7.18

12

DIAPHRAGM

45520-MG7-006

$10.61

13

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

14

RING

45523-KA3-731

$2.92

15

MASTER CYLINDER SET

45530-471-831

$40.86

16

LEVER, R. HANDLEBAR (COO)

53175-KZZ-305

$11.08

16

LEVER, R. HANDLEBAR (COO) This part replaces 53175-KZZ-900.

53175-KZZ-305

$11.08

17

COVER, R. HANDLE LEVER

53176-KZZ-901

$5.48

18

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

19

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

20

BOLT, FLANGE (6X25)

90013-GHB-670

$2.33

21

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

23

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

24

WASHER, OIL BOLT

90545-300-000

$3.99

25

CIRCLIP

90651-MA5-671

$2.66

26

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

26

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

27

SCREW-WASHER (4X12)

93893-04012-07

$1.49

27

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

28

NUT, FLANGE (6MM)

94050-06000

$1.49

29

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

30

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
