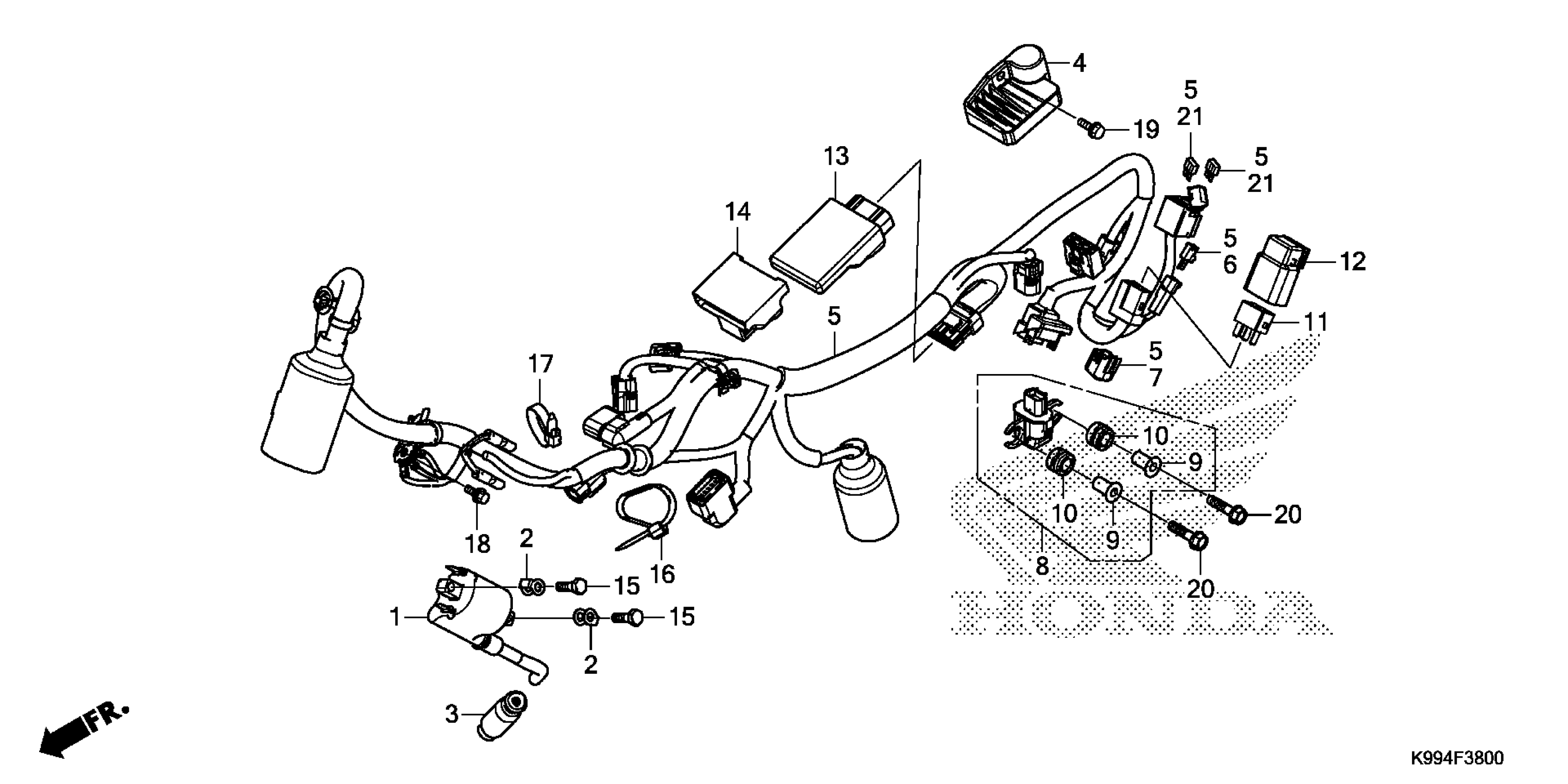

Honda CRF250FAC (25) MOTORCYCLE, BRA, VIN# 9C2ME131-SR100001 WIRE HARNESS Diagram

COIL, IGNITION

30510-K99-A01

$51.21

SPACER, IGNITION COIL (NOT AVAILABLE)

30520-K3H-B00

$1.49

CAP ASSY., NOISE SUPPRESSOR (NGK)

30700-K31-901

$18.05

RECTIFIER, REGULATOR

31600-K99-A01

$147.61

WIRE HARNESS

32100-K99-A01

$369.70

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$15.33

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

SENSOR ASSY., BANK ANGLE

35160-K99-A01

$55.59

COLLAR

35162-KVS-J00

$14.87

GROMMET

35163-MGC-003

$2.25

RELAY, POWER (MICRO ISO 4P)

38501-KSS-B31

$43.72

SUSPENSION, POWER RELAY

38506-KVS-600

$4.89

PGM-FI UNIT

38770-K99-A01

$70.38

CUSHION, PGM-FI UNIT

38771-KRE-G01

$2.74

BOLT, HEX. (6X20) This part replaces 90102-KVS-J00.

92101-06020-4J

$1.49

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

FUSE F (7.5A) (MINI)

98200-40750

$1.49
