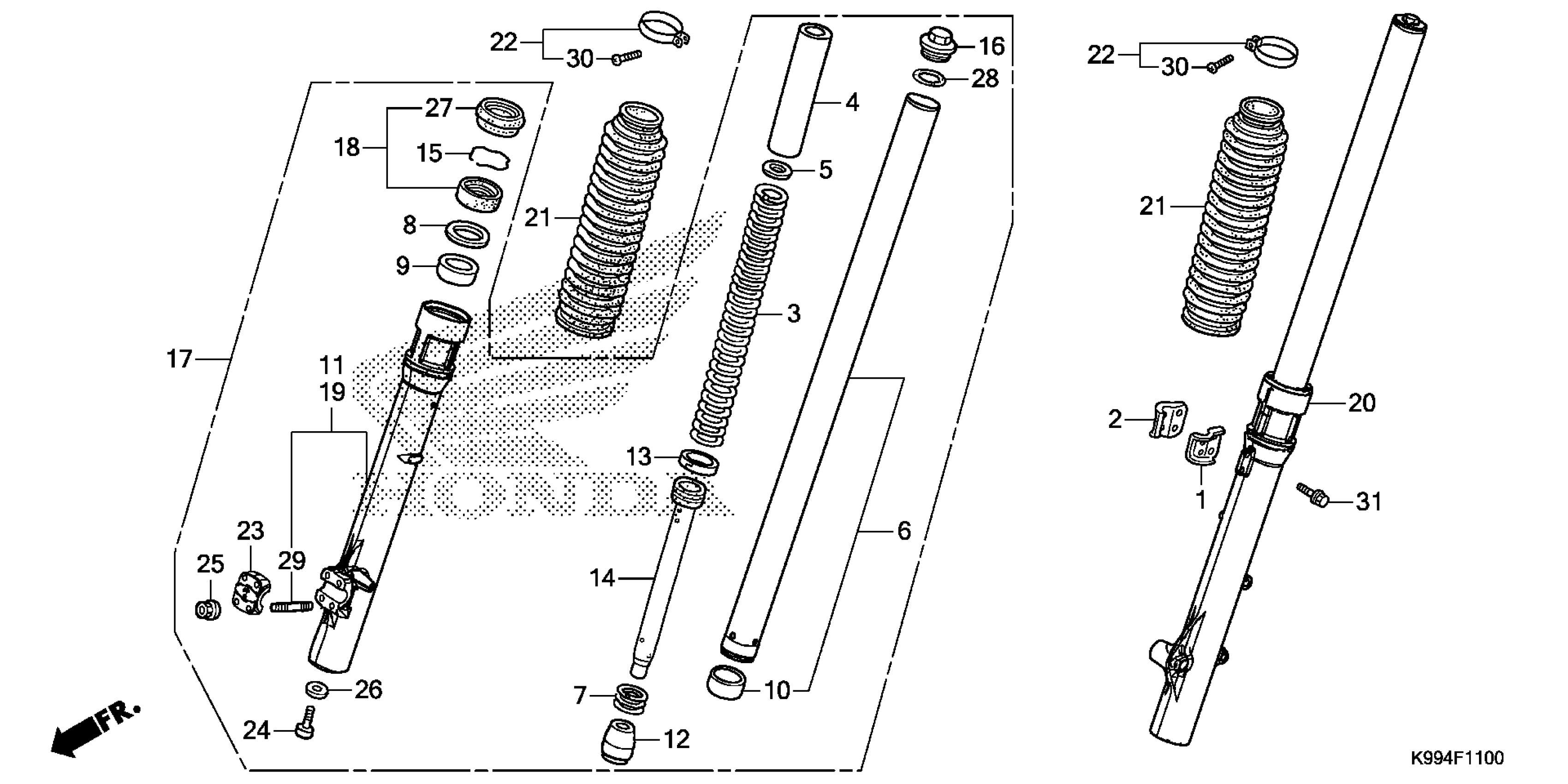

Honda CRF250FAC (25) MOTORCYCLE, BRA, VIN# 9C2ME131-SR100001 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, BRAKE HOSE

45461-KPS-900

$7.90

2

CLAMP B, BRAKE HOSE

45462-KPE-730

$10.57

3

SPRING, FR. FORK

51401-K99-A01

$27.48

4

COLLAR, SPRING (SHOWA) (R.)

51402-KV3-701

$24.00

5

SEAT, SPRING (SHOWA)

51403-KF0-003

$4.78

6

PIPE, FR. FORK

51410-K99-A01

$84.79

7

SPRING, REBOUND

51411-K99-A01

$2.07

8

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

9

BUSH, GUIDE (SHOWA)

51414-KCR-003

$14.02

9

BUSH, GUIDE (SHOWA) This part replaces 51414-MN5-003.

51414-KCR-003

$14.02

10

BUSH, SLIDER

51415-K99-A01

$3.51

11

CASE SET, R. FR. (LOWER) (SHOWA)

51430-KPE-C01

$101.98

12

PIECE, OIL LOCK

51432-MV4-003

$14.02

13

RING, PISTON

51437-KV3-701

$7.19

14

PIPE, SEAT

51440-K99-A01

$16.44

15

RING, OIL SEAL STOP

51447-MCG-003

$1.49

16

BOLT, FR. FORK

51454-MM9-671

$38.35

17

FORK SUB-ASSY., R. FR. *NH109MS* (SHOT SILVER METALLIC SPECIAL)

51480-K99-A01ZA

$254.80

18

SEAL SET, FR. FORK

51490-K99-A01

$11.16

19

CASE SET, L. FR. (LOWER)

51530-K99-A01

$112.43

20

FORK SUB-ASSY., L. FR.

51580-K99-A01

$238.60

21

BOOT, FR. FORK (NOT AVAILABLE)

51611-KF0-003

$59.75

22

BAND, FR. FORK BOOT (NOT AVAILABLE)

51612-KF0-003

$10.91

23

HOLDER, AXLE *NH109MS* (SHOT SILVER METALLIC SPECIAL)

51634-MK5-003ZK

$29.13

24

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

25

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

26

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

27

DUST SEAL, FR. FORK

91254-KF0-003

$21.03

28

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76

29

BOLT, STUD (6X25) (R. SIDE ONLY)

92900-06025-0E

$1.49

30

SCREW, PAN (3X20)

93500-03020-0A

$1.49

31

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
