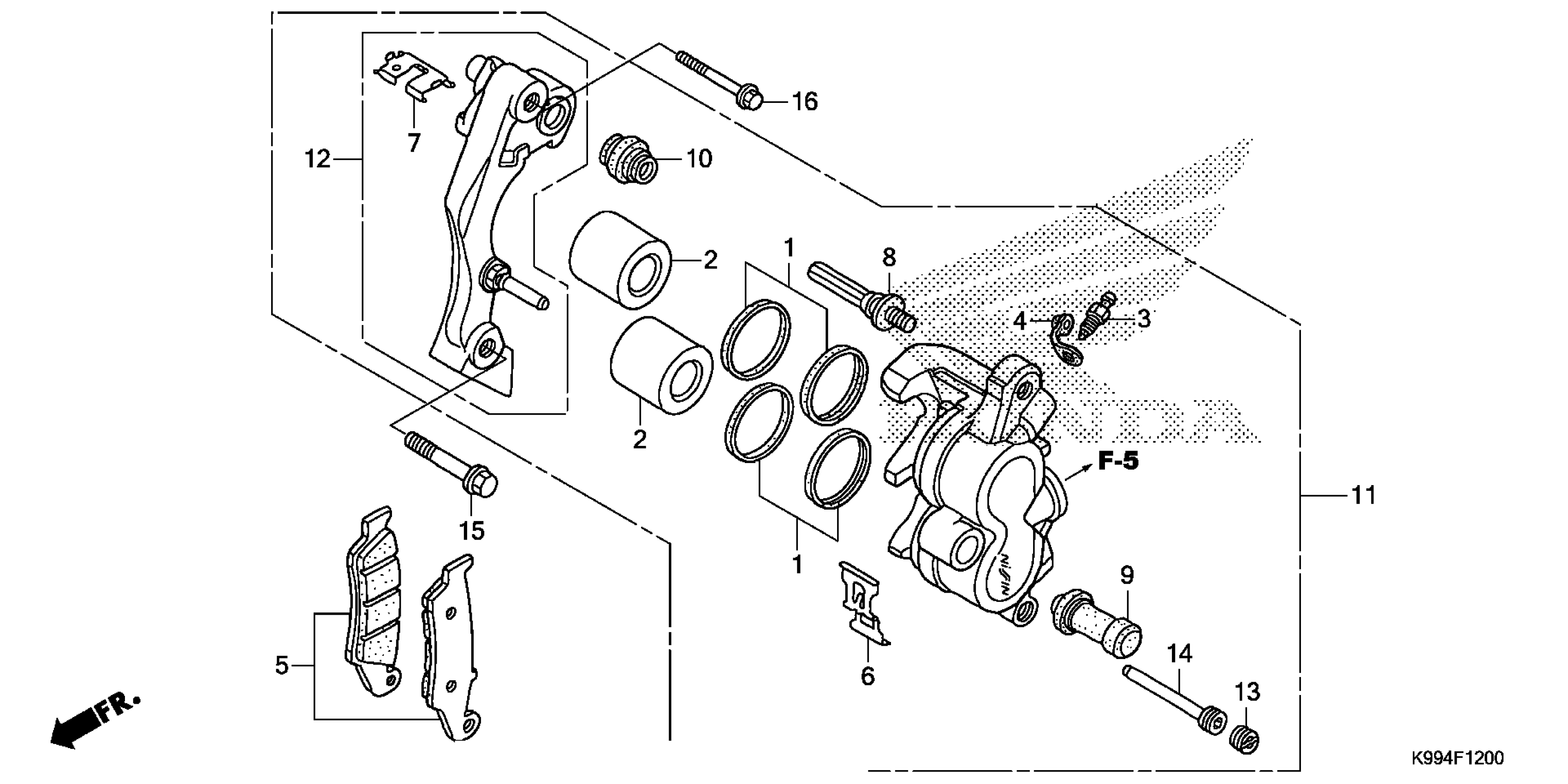

Honda CRF250FAC (25) MOTORCYCLE, BRA, VIN# 9C2ME131-SR100001 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

PISTON (27X27)

43107-MBG-006

$33.79

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PAD SET, FR.

45105-MY6-415

$47.06

SPRING, PAD

45108-MY1-006

$10.74

RETAINER

45112-KS6-701

$6.08

BOLT A, BOLT

45131-HA5-672

$15.44

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-KZ4-J21

$243.03

BRACKET SUB-ASSY., L. FR. CALIPER

45190-KZ4-J21

$84.89

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-HA5-672

$10.63

BOLT, FLANGE (8X40)

90131-KPS-900

$2.34

BOLT, FLANGE (8X50)

90132-MY2-000

$4.80
