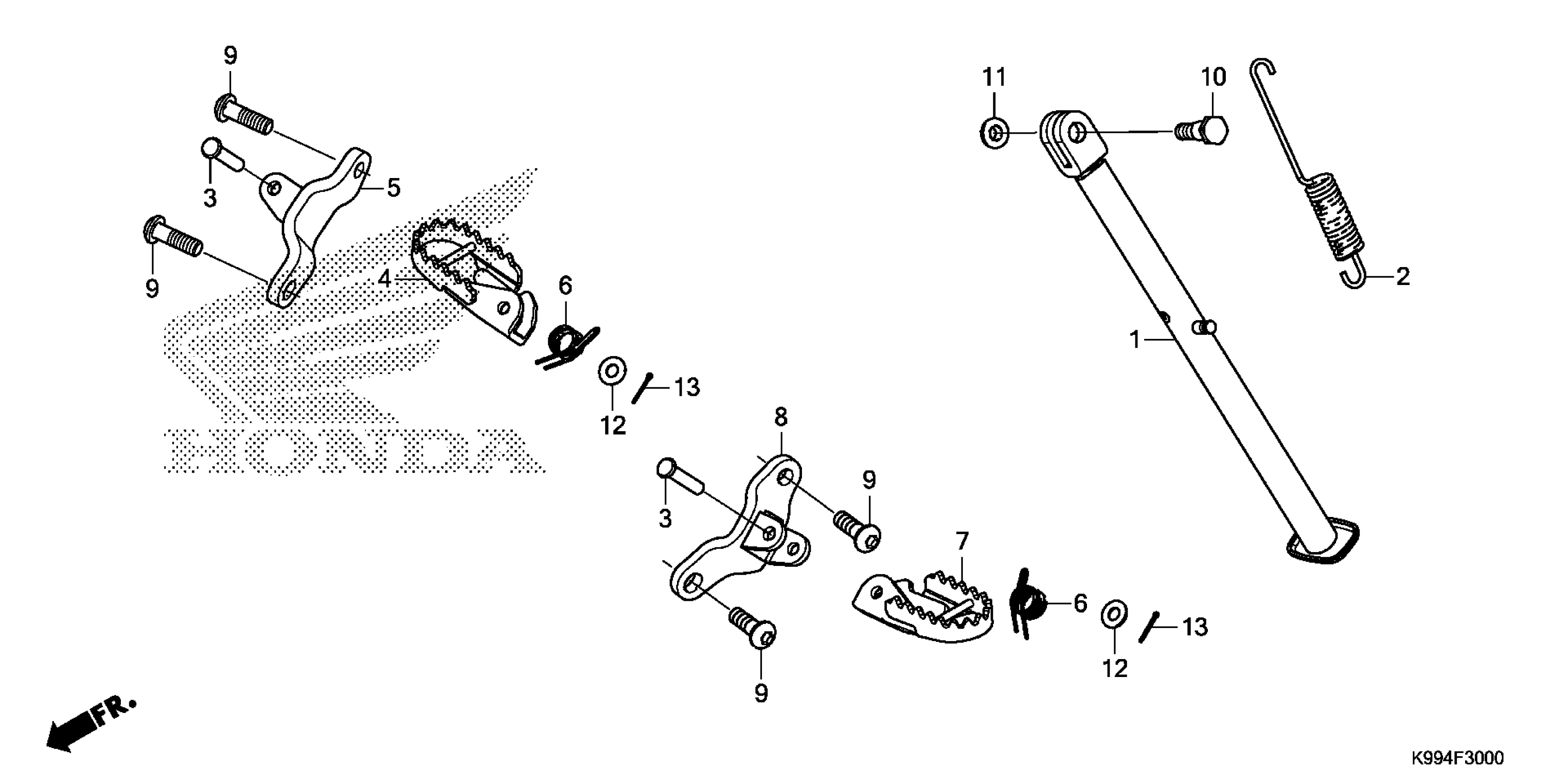

Honda CRF250FAC (24) MOTORCYCLE, BRA, VIN# 9C2ME131-RR100001 TO 9C2ME131-RR199999 STEP@STAND Diagram

BAR, SIDE STAND

50530-K99-A00

$85.46

SPRING, SIDE STAND

50541-KZZ-J00

$6.91

PIN, STEP BAR JOINT

50603-KPS-900

$2.24

STEP, R.

50612-K99-A00

$18.40

ARM, R. STEP

50615-K99-A00

$17.24

SPRING, FOOTPEG RETURN SPRING, STEP RETURN

50617-MA0-770

$5.54

SPRING, FOOTPEG RETURN This part replaces 50617-466-000.

50617-MA0-770

$5.54

STEP, L.

50642-K99-A00

$17.37

ARM, L. STEP

50645-K99-A00

$19.69

BOLT, STEP BRACKET

90105-K99-A00

Unavailable

SCREW, SIDE STAND PIVOT

90107-GN1-010

$4.31

NUT, SIDE STAND

90203-MF9-710

$3.50

WASHER, PLAIN (8MM)

94101-08000

Unavailable

PIN, COTTER (2.0X15)

94201-20150

$1.04
