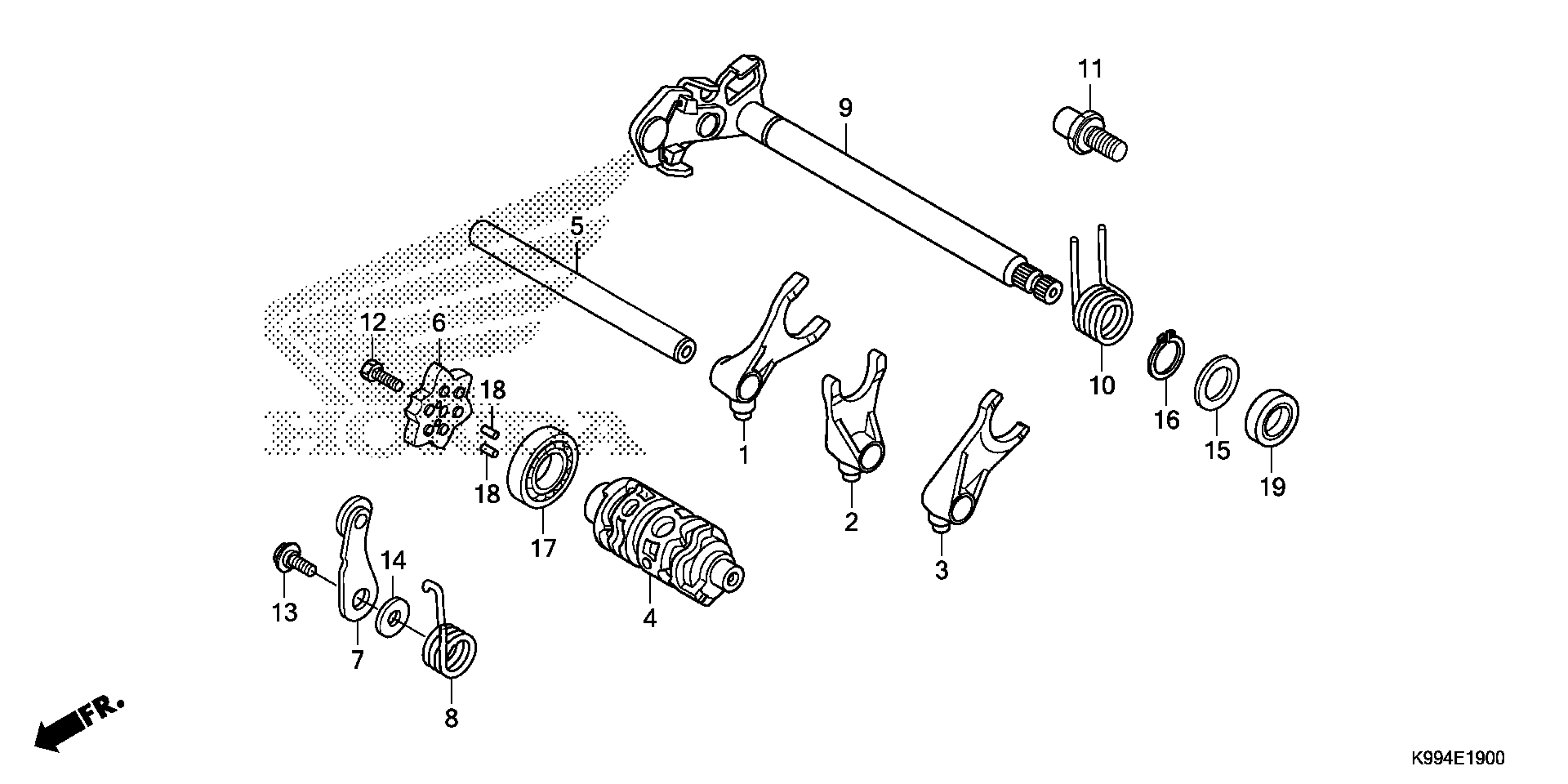

Honda CRF250FAC (23) MOTORCYCLE, BRA, VIN# 9C2ME131-PR100001 TO 9C2ME131-PR999999 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT

24211-K99-A00

$18.93

FORK, CENTER GEARSHIFT

24212-K99-A00

$10.67

FORK, L. GEARSHIFT

24213-K99-A00

$18.69

DRUM, GEARSHIFT

24301-K99-A00

$1,027.87

SHAFT, GEARSHIFT FORK

24321-KYJ-900

$10.84

PLATE, GEARSHIFT DRUM STOPPER (NA USE ALT:24410-KVS-900)

24410-KSP-860

Unavailable

STOPPER, GEARSHIFT DRUM

24430-KRM-B10

$12.38

STOPPER, GEARSHIFT DRUM This part replaces 24430-KTT-900.

24430-KRM-B10

$12.38

SPRING, DRUM STOPPER

24435-K31-900

$2.74

SPINDLE, GEARSHIFT

24610-K31-900

$24.12

SPRING, GEARSHIFT RETURN

24651-KRM-840

$2.59

PIN, SHIFT RETURN SPRING

24652-KRM-840

$6.50

BOLT, HEX. (6X20)

90003-KVS-900

$2.10

PIVOT, SHIFT DRUM STOPPER ARM

90022-KRM-840

$1.49

WASHER, DRUM STOPPER This part replaces 90417-KRM-840.

90417-360-000

$1.74

WASHER, DRUM STOPPER

90417-360-000

$1.74

WASHER (14MM)

90457-KRM-840

$1.49

CIRCLIP (OUTER) (14MM) This part replaces 90606-KRM-840.

94510-14000

$1.49

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

BEARING, RADIAL BALL (6905) (NSK)

91009-K31-901

$14.34

ROLLER (3X8.5)

91112-KRH-900

$2.21

OIL SEAL (14X22X5) (ARAI)

91203-KSP-911

$1.98
