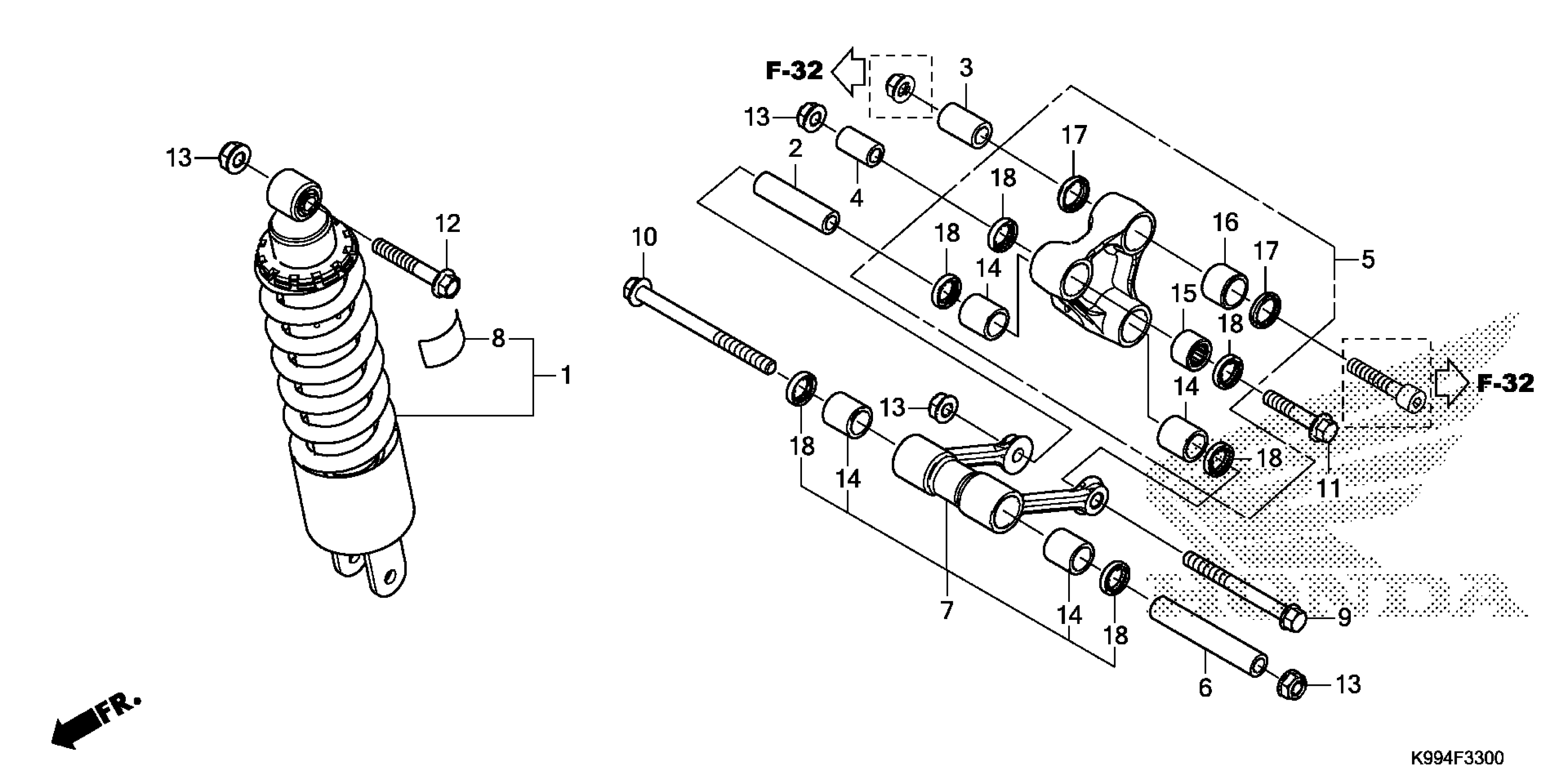

Honda CRF250FA (25) MOTORCYCLE, BRA, VIN# 9C2ME134-SR400001 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER SET

52490-K99-A01

$204.78

COLLAR A, CUSHION ARM

52462-KPS-900

$6.06

COLLAR B, CUSHION ARM

52463-KPE-900

$6.66

COLLAR C, CUSHION ARM

52464-KPE-900

$4.94

ARM SUB-ASSY., CUSHION

52465-K99-A00

$176.46

COLLAR, CONNECTING ROD

52472-K99-A00

$11.01

CONNECTING ROD SUB-ASSY., CUSHION

52475-K99-A00

Unavailable

LABEL, RR. DAMPER

87516-MBL-610

$3.99

BOLT, FLANGE (10X100)

90101-KPS-900

$5.16

BOLT, FLANGE (10X128)

90102-K99-A00

$4.15

BOLT, FLANGE (10X52)

90107-K99-A00

$3.38

BOLT, FLANGE (10X65)

90157-KB7-940

$4.69

NUT, U (10MM)

90304-KGH-901

Unavailable

BEARING (17X24X25)

91073-KPE-901

$4.43

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$18.07

BEARING, NEEDLE (20X26X20)

91072-MY1-005

$17.00

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$8.47

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.91
