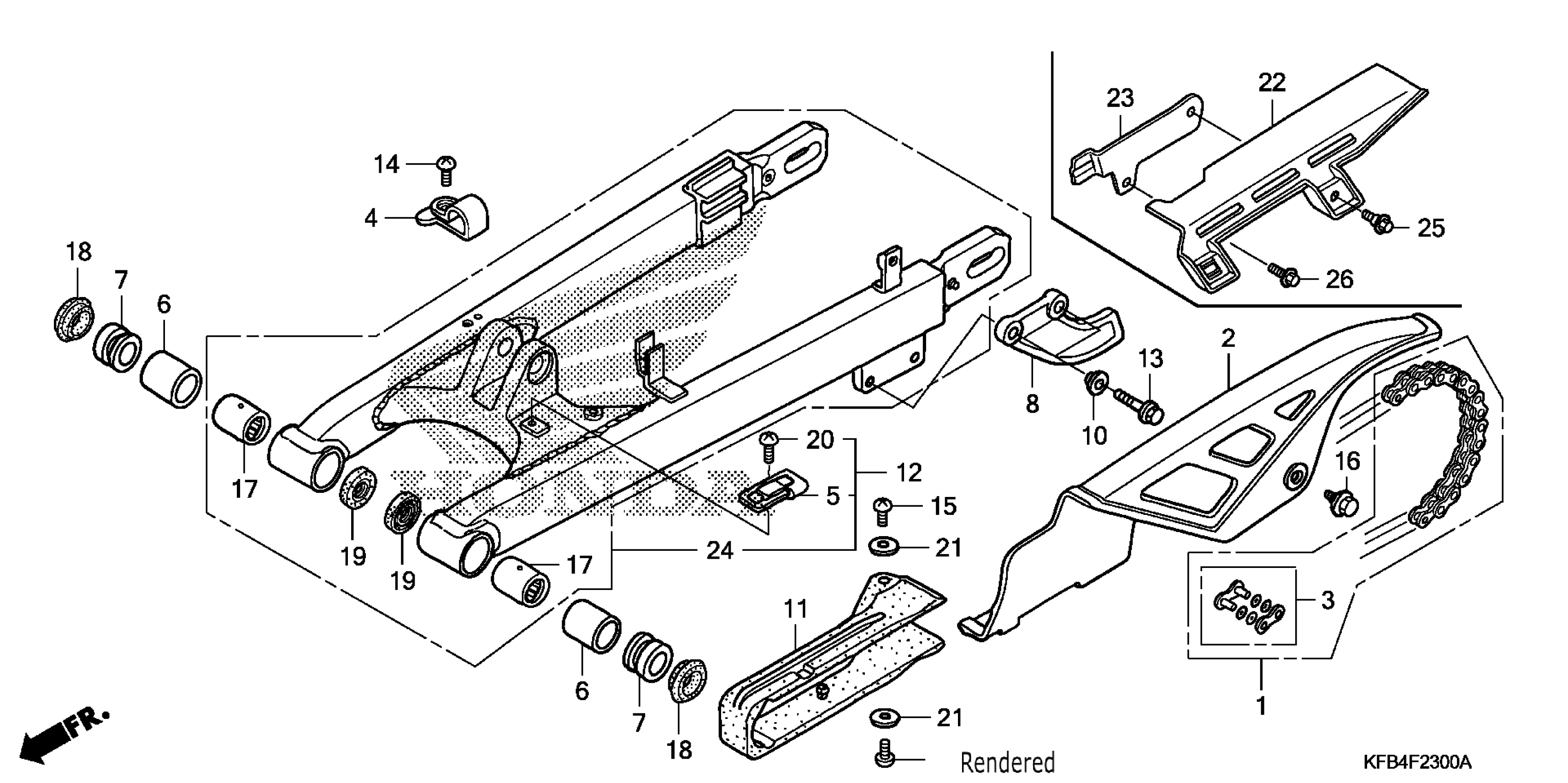

Honda CRF230MAC (09) MOTORCYCLE, JPN, VIN# JH2MD375-9K000001 SWINGARM Diagram

#

Description
Price

1

CHAIN, DRIVE (RK EXCEL) (RK520MOZ9-100LJ.FZ) (STANDARD LINK 100L) (NA USE ALT:40540-KRG-305)

40540-KFB-005

Unavailable

1

CHAIN, DRIVE (DID520V-100ZB) (DAIDO) (STANDARD LINK 100L)

40540-KRG-305

$152.22

3

MASTER LINK (RK EXCEL)

40545-KCN-306

$9.26

3

MASTER LINK (DAIDO)

40545-KPM-305

$8.49

4

GUIDE, BRAKE HOSE

43468-KFB-000

$4.61

6

COLLAR, SWINGARM PIVOT

52141-KFB-000

Unavailable

7

COLLAR, PIVOT

52142-KFB-000

Unavailable

8

GUARD, DRIVE CHAIN

52156-KB9-000

$28.41

10

COLLAR, CHAIN GUARD

52159-KB7-000

$5.90

11

SLIDER, CHAIN

52170-KFB-000

Unavailable

13

BOLT, FLANGE (6X20)

90101-MAS-000

$2.93

14

SCREW, PAN (5X10)

90104-ML7-920

$2.80

15

SCREW, PAN (5X8)

90115-KV3-700

$2.38

17

BEARING, SWINGARM PIVOT (NTN)

91071-MA0-003

$29.73

18

DUST SEAL, SWINGARM PIVOT

91251-KFB-003

$2.70

19

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$8.27

21

WASHER, PLAIN (5MM)

94103-05700

$0.86

22

CASE, DRIVE CHAIN

40510-KCZ-J91

$23.20

23

MASTER LINK CASE

40511-KCZ-J90

Unavailable

24

SWINGARM SUB-ASSY., RR.

52200-KFB-940

$573.71

25

BOLT, FLANGE (6MM)

90111-187-000

$5.21

26

BOLT, FLANGE (6X10)

95701-06010-07

$1.48
