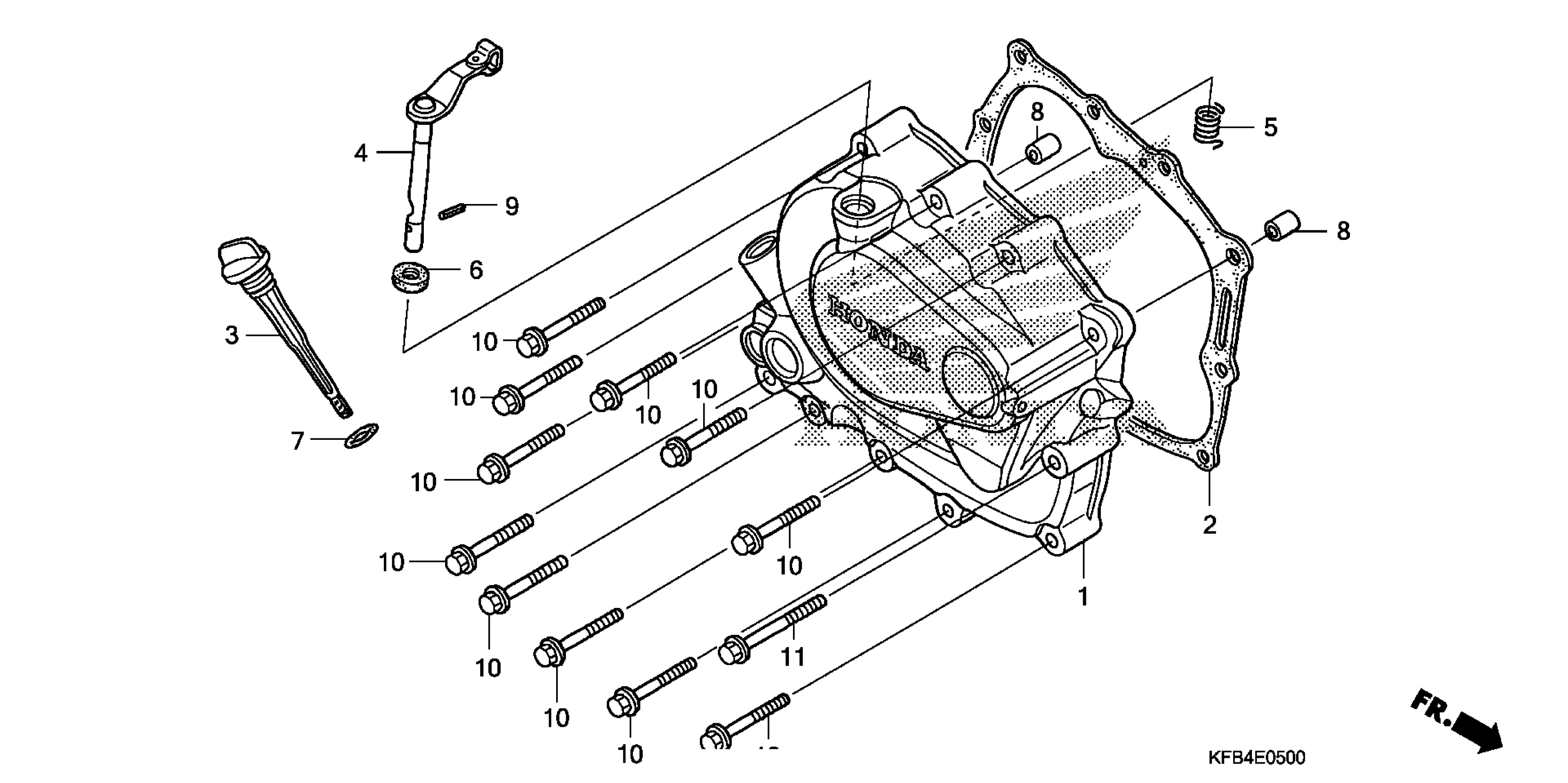

Honda CRF230MAC (09) MOTORCYCLE, JPN, VIN# JH2MD375-9K000001 RIGHT CRANKCASE COVER Diagram

#

Description

Price

1

COVER, R. CRANKCASE

11330-KFB-000

$207.36

2

GASKET, R. COVER This part replaces 11393-KCN-000.

11393-KCN-020

$14.34

2

GASKET, R. COVER This part replaces 11393-KCN-010.

11393-KCN-020

$14.34

3

DIPSTICK, OIL

15650-KFB-940

Unavailable

4

LEVER, CLUTCH This part replaces 22810-KBB-900.

22810-437-000

Unavailable

5

SPRING, CLUTCH LEVER

22815-428-000

$3.28

6

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

6

OIL SEAL (12X22X5)

91201-965-000

$4.06

7

O-RING (18X3)

91307-035-000

$2.92

8

PIN, DOWEL (8X14)

94301-08140

$2.25

9

PIN, SPRING (3X10)

94305-30102

$1.74

10

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

11

BOLT, FLANGE (6X50)

96001-06050-00

$2.16
