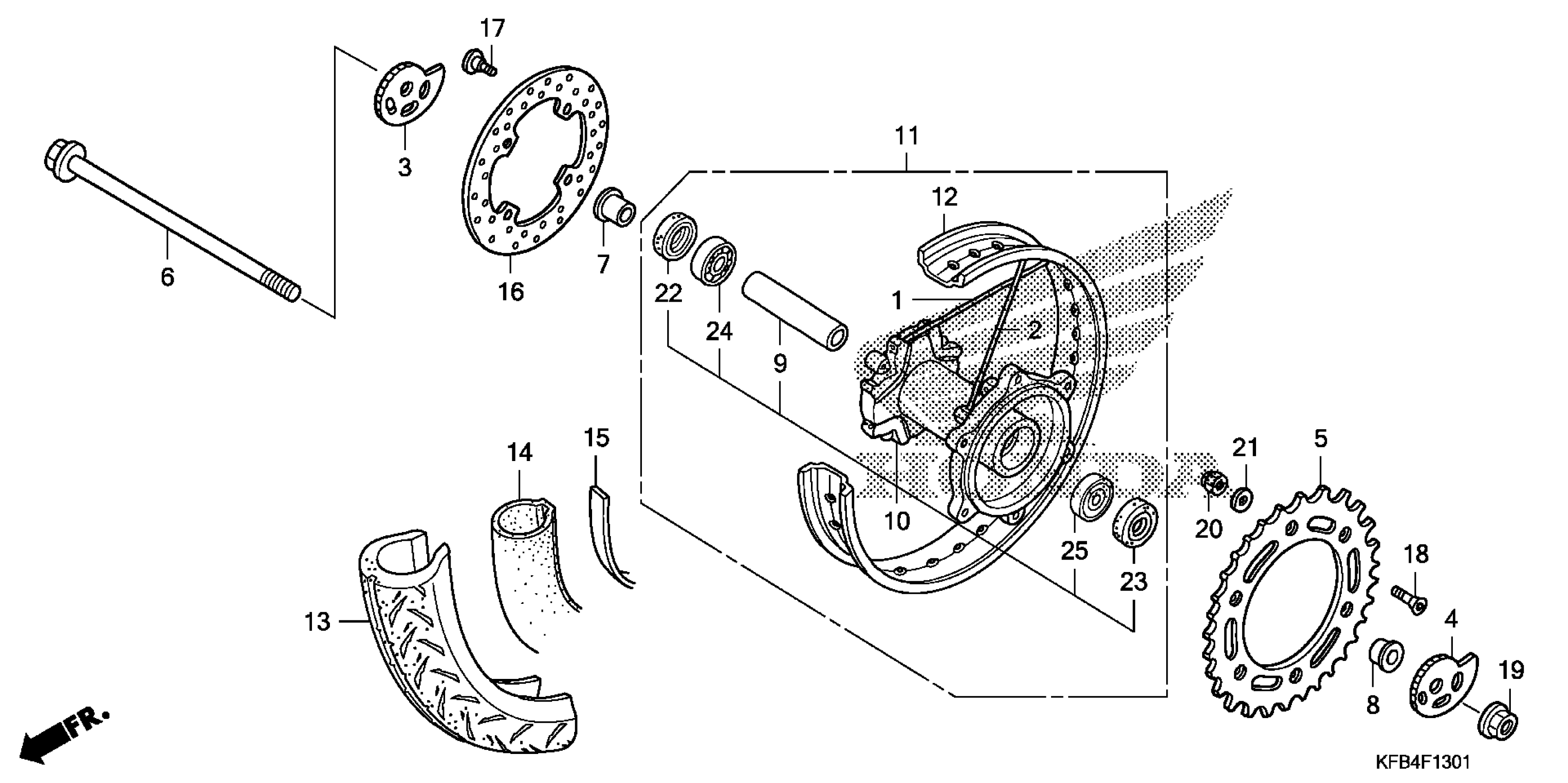

Honda CRF230MAC (09) MOTORCYCLE, JPN, VIN# JH2MD375-9K000001 REAR WHEEL (CRF230M) Diagram

#

Description
Price

1

SPOKE SET, R. RR. (R. SIDE)

06420-KCZ-J90

$3.43

2

SPOKE SET, L. RR. (L. SIDE)

06421-KCZ-J90

Unavailable

3

ADJUSTER, R. CHAIN

40544-MN1-670

$10.95

4

ADJUSTER, L. CHAIN

40545-MN1-670

$11.59

5

SPROCKET, FINAL DRIVEN (38T)

41201-KFB-940

Unavailable

6

AXLE, RR. WHEEL

42301-KFB-000

Unavailable

7

COLLAR A, RR. WHEEL SIDE

42311-KFB-940

Unavailable

8

COLLAR B, RR. WHEEL SIDE

42312-KFB-940

Unavailable

9

COLLAR, RR. AXLE DISTANCE

42620-KAE-000

$14.25

10

HUB SUB-ASSY., RR.

42635-KFB-940

$501.03

11

WHEEL SUB-ASSY., RR.

42650-KFB-940

Unavailable

12

RIM, RR. WHEEL (3.50X17)

42701-KFB-941

$331.00

13

TIRE, RR. (DUNLOP) (130/70-17M/C 62H GT401K)

42711-KCZ-J92

Unavailable

14

TUBE, TIRE (DUNLOP)

42712-KCZ-J91

$33.51

15

FLAP, TIRE (DUNLOP)

42713-KCZ-J91

Unavailable

16

DISK, RR. BRAKE

43351-KZ1-770

$159.20

17

BOLT, DISK (8X22)

90105-MK5-010

$4.60

18

SCREW, FLAT (8X31)

90125-KA4-000

$2.87

19

NUT, FLANGE (16MM)

90305-ME5-003

$3.96

20

NUT, U (8MM) (FUSE RASHI)

90309-ML3-791

$4.06

21

WASHER (8MM)

90465-MC4-000

$2.29

22

OIL SEAL (25X40X7)

91252-KCY-671

$9.21

23

OIL SEAL (25X47X6.5)

91253-033-003

$5.54

24

BEARING, RADIAL BALL (6203U)

96140-62030-10

$10.69

25

BEARING, RADIAL BALL (6303U)

96140-63030-10

$13.01
