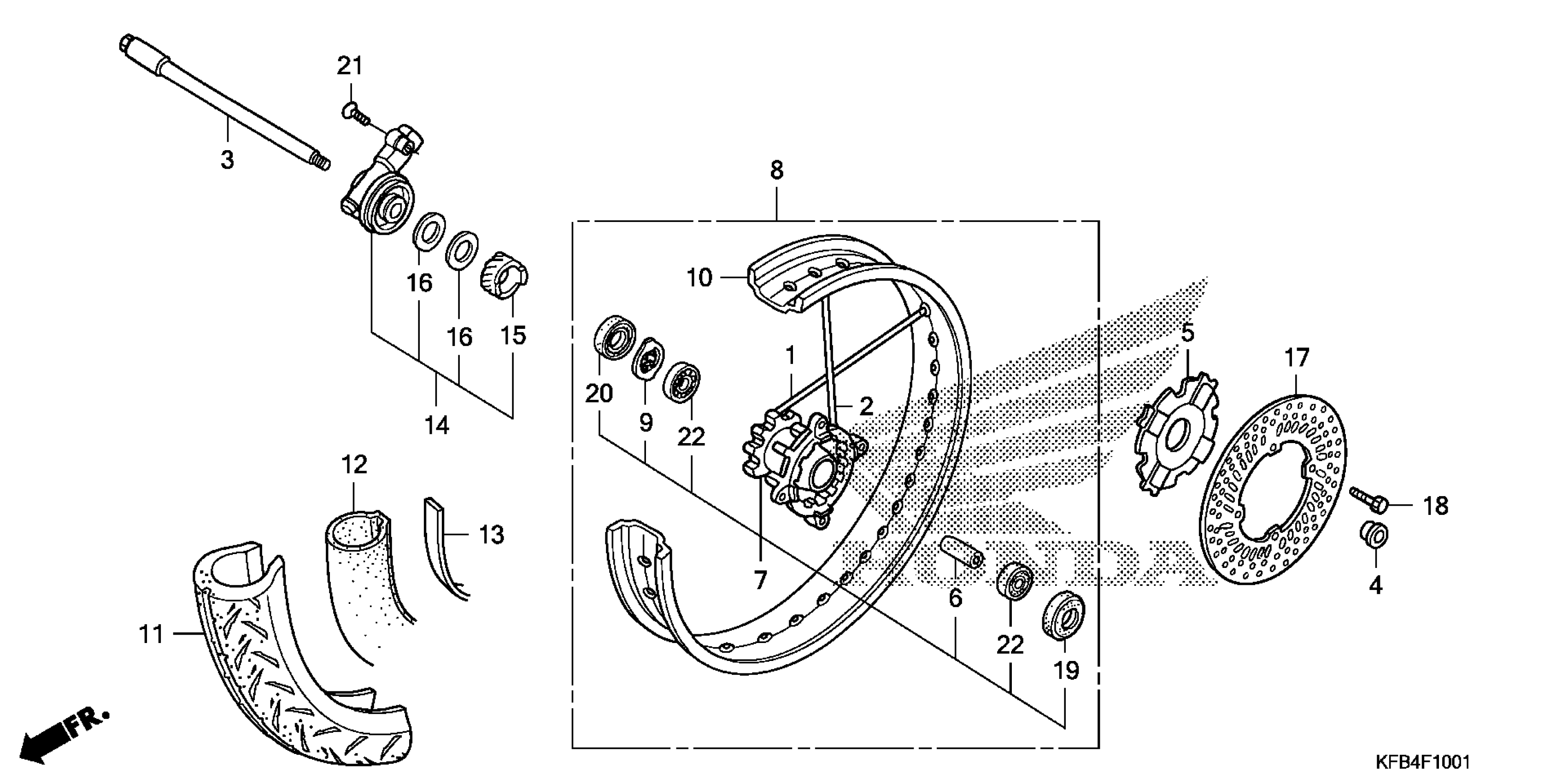

Honda CRF230MAC (09) MOTORCYCLE, JPN, VIN# JH2MD375-9K000001 FRONT WHEEL (CRF230M) Diagram

#

Description
Price

1

SPOKE SET A, FR. (R. SIDE)

06440-KFB-940

$3.99

2

SPOKE SET B, FR. (L. SIDE)

06441-KFB-940

$3.99

3

AXLE, FR. WHEEL

44301-KBR-730

Unavailable

4

COLLAR, FR. WHEEL

44311-MG3-000

$16.19

5

COVER, FR. HUB *NH1* (BLACK) | Black NH1;

44610-KW3-010ZB

$12.80

6

COLLAR, FR. AXLE DISTANCE

44620-KBR-730

$5.77

7

HUB SUB-ASSY., FR.

44635-KFB-940

Unavailable

8

WHEEL SUB-ASSY., FR.

44650-KFB-940

Unavailable

9

RETAINER, GEAR BOX

44680-MA0-000

$6.90

10

RIM, FR. WHEEL

44701-KFB-941

Unavailable

11

TIRE, FR. (110/70-17 M/C 54H) (DUNLOP)

44711-KCZ-J92

Unavailable

12

TUBE, TIRE (DUNLOP)

44712-KCZ-J91

Unavailable

13

FLAP, TIRE (DUNLOP)

44713-KCZ-J91

$4.71

14

BOX ASSY., SPEEDOMETER GEAR

44800-KFB-941

Unavailable

15

GEAR, SPEEDOMETER

44806-KW3-000

$28.35

16

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.13

17

DISK, FR. BRAKE

45351-KV6-670

$232.48

18

BOLT, DISK (6X17)

90105-KAE-870

$2.80

19

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$4.70

19

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$4.70

20

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$8.80

20

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$8.80

20

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$8.80

21

SCREW, OVAL (5X20)

93700-05020-0G

$0.48

22

BEARING, RADIAL BALL (6202U)

96140-62020-10

$9.75
