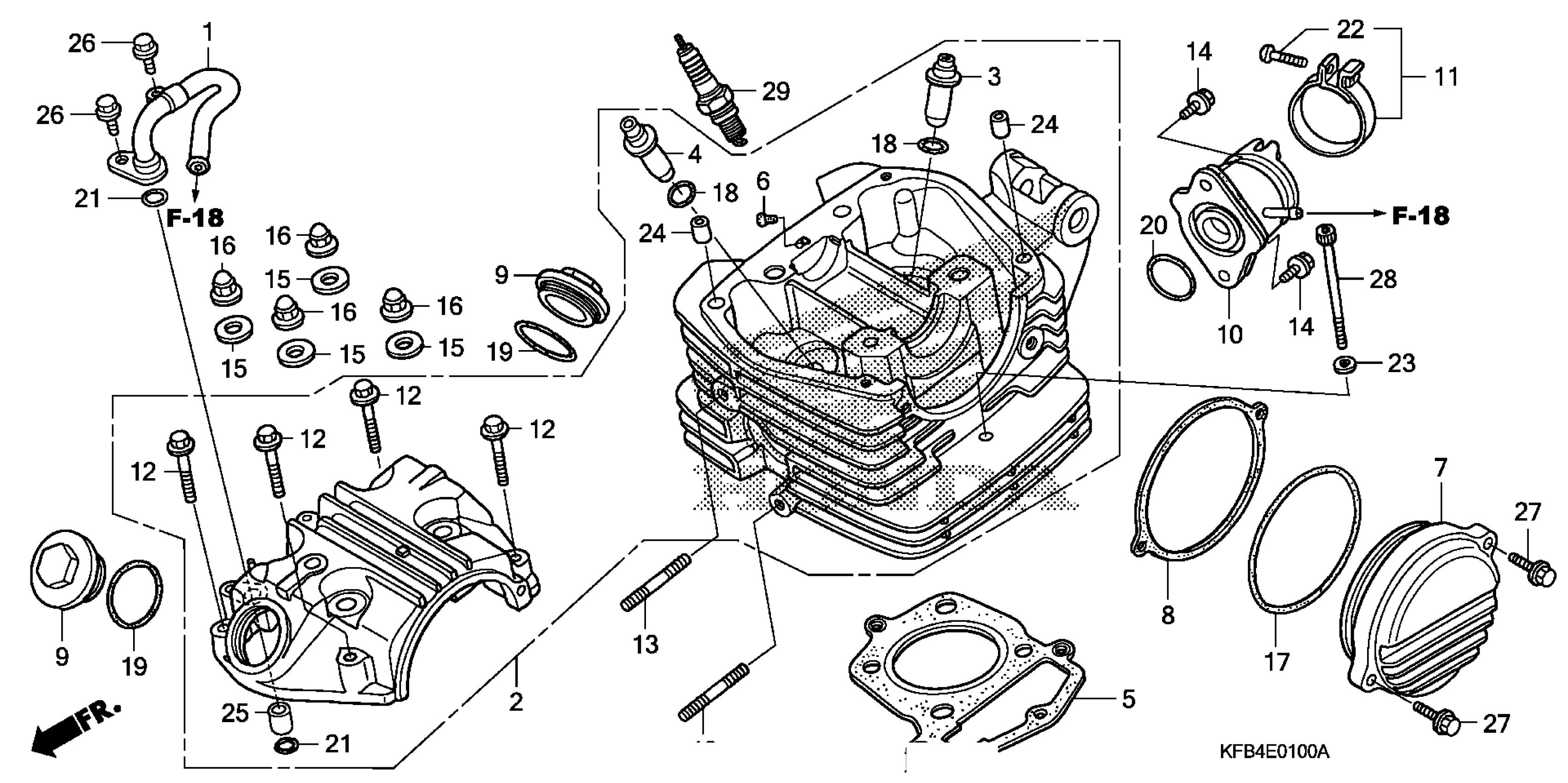

Honda CRF230MAC (09) MOTORCYCLE, JPN, VIN# JH2MD375-9K000001 CYLINDER HEAD Diagram

#

Description
Price

1

PIPE, AIR SUCTION

11105-KFB-840

$70.94

2

CYLINDER HEAD ASSY.

12000-KPM-940

$516.74

3

GUIDE, VALVE (OVER SIZE)

12204-439-305

$19.78

4

GUIDE, EX. VALVE (OVER SIZE)

12206-KCN-305

$23.23

5

GASKET, CYLINDER HEAD

12251-KT0-711

$21.20

6

RUBBER, OIL SEAL

12271-383-000

$2.80

7

COVER, L. CYLINDER HEAD

12331-KCM-700

$27.32

8

GASKET This part replaces 12339-KT0-710.

12339-KT0-712

$6.56

8

GASKET This part replaces 12339-KT0-711.

12339-KT0-712

$6.56

9

CAP, TAPPET ADJUSTING HOLE

12361-383-000

$5.98

10

INSULATOR, CARBURETOR

16210-KPK-940

$35.92

11

BAND C, INSULATOR

16219-MN4-000

$9.00

12

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.79

13

BOLT, STUD (7X24)

90041-KY0-980

$2.80

14

BOLT, FLANGE SOCKET (6X22)

90091-MM5-640

$3.67

15

WASHER, SEALING (8MM)

90442-028-000

$1.61

16

NUT, CAP (8MM)

90443-107-000

$2.62

17

O-RING (75X2.5)

91301-107-000

$4.54

18

O-RING (10X1.6)

91301-200-000

$2.80

19

O-RING (35X3) (ARAI)

91303-KK3-830

$2.80

20

O-RING (33.5X3.0)

91304-HB3-003

$7.18

21

O-RING (9.8X1.9)

91305-PE2-003

$2.41

22

SCREW, PAN (5X32)

93500-05032-0G

$0.46

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM)

94101-06800

Unavailable

24

PIN, DOWEL (8X14)

94301-08140

$2.04

25

PIN, DOWEL (10X12)

94301-10120

$2.25

26

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

27

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

28

BOLT, SOCKET (6X125)

96700-06125-10

$2.32

29

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.00

29

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.25
