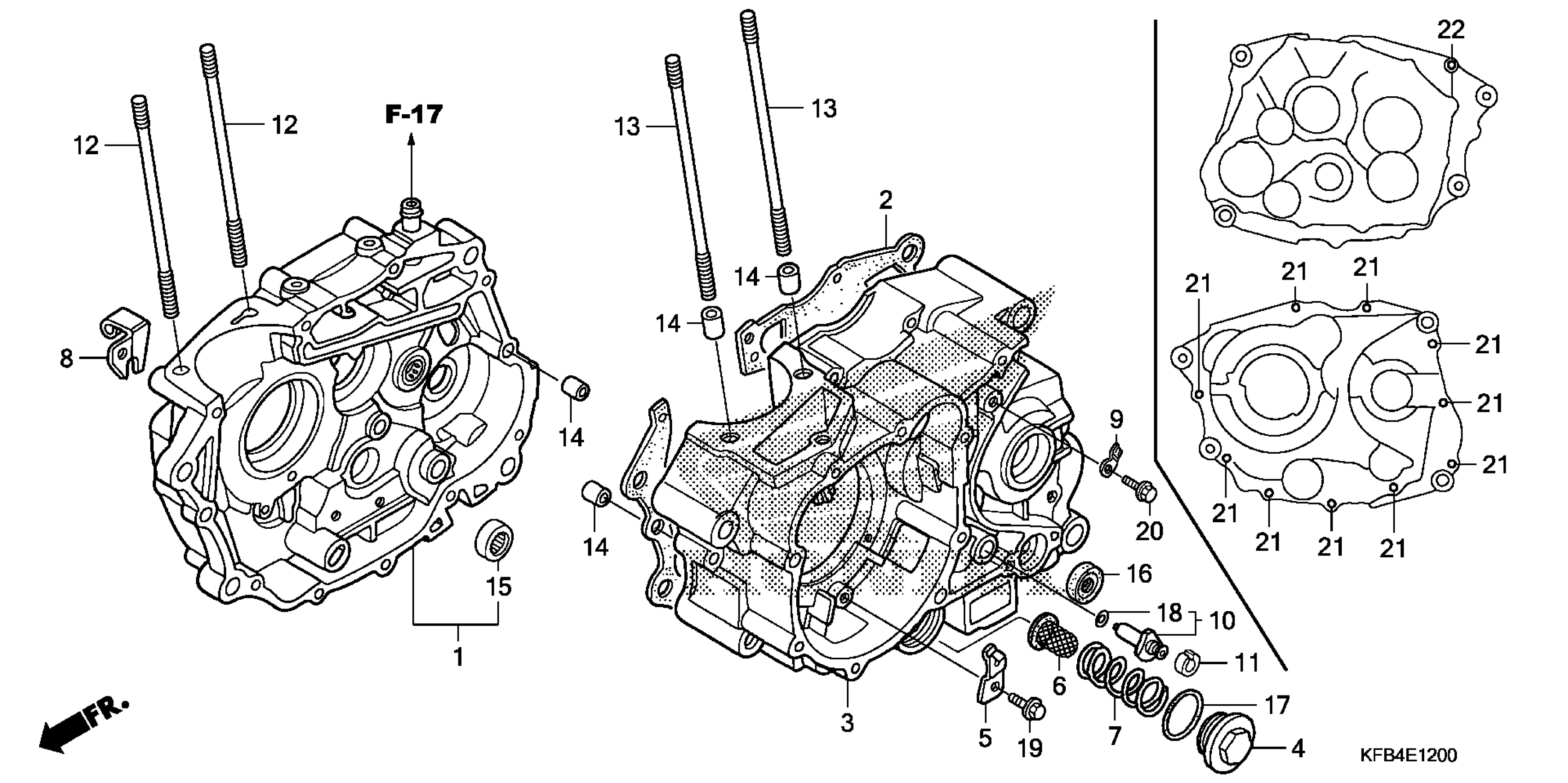

Honda CRF230MAC (09) MOTORCYCLE, JPN, VIN# JH2MD375-9K000001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-KFB-600

$322.18

2

GASKET, CRANKCASE This part replaces 11191-KCN-000.

11191-KCN-010

$15.35

2

GASKET, CRANKCASE

11191-KCN-010

$15.35

3

CRANKCASE, L.

11200-KCN-010

$343.51

4

CAP, TAPPET ADJUSTING HOLE

12361-383-000

$6.14

5

PLATE, CAM CHAIN SETTING

14513-KBB-900

$3.38

6

SCREEN, OIL FILTER

15421-107-000

$6.02

7

SPRING, OIL FILTER SCREEN

15426-107-000

$3.47

8

HOLDER, CLUTCH WIRE

22838-437-010

Unavailable

9

CLAMP, WIRE HARNESS

32976-KCT-690

$2.76

10

CONTACT, NEUTRAL SWITCH

35750-GS3-003

$8.34

11

SPACER, NEUTRAL SWITCH

35752-KCT-690

$2.75

12

BOLT A, CYLINDER STUD

90031-KFB-000

$5.86

13

BOLT B, CYLINDER STUD

90032-KFB-000

$5.86

14

PIN A, DOWEL (10X14) This part replaces 90703-HC4-000.

94301-10140

$2.80

14

PIN A, DOWEL (10X14)

94301-10140

$2.80

15

BEARING, NEEDLE (21MM)

91008-KCN-003

$16.19

16

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$2.87

17

O-RING (35X3) (ARAI)

91303-KK3-830

$2.80

18

O-RING (7X1.7)

91312-107-000

$2.94

19

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

20

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable

21

BOLT, FLANGE (6X50)

96001-06050-00

$2.69

22

BOLT, FLANGE (6X60)

96001-06060-00

$2.69
