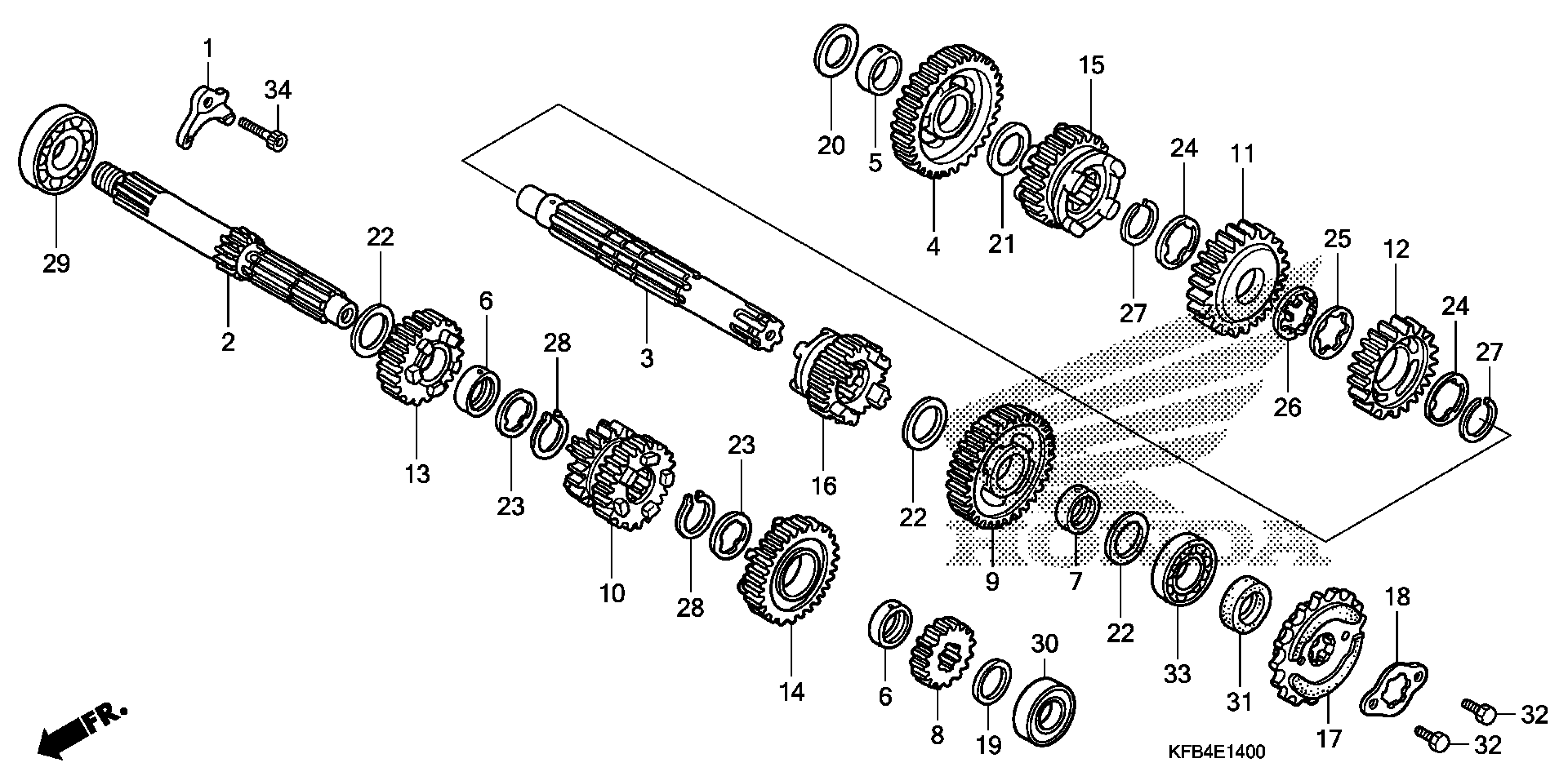

Honda CRF230LAC (09) MOTORCYCLE, JPN, VIN# JH2MD371-9K100001 TO JH2MD371-9K109999 TRANSMISSION Diagram

#

Description
Price

1

PLATE, BEARING SETTING

11108-KHA-940

$13.75

2

MAINSHAFT (12T)

23210-KFB-750

$129.77

3

COUNTERSHAFT, TRANSMISSION

23221-KFB-000

$92.12

4

GEAR, COUNTERSHAFT FIRST (37T)

23421-KFB-000

Unavailable

5

COLLAR, COUNTERSHAFT LOW GEAR

23427-439-000

$17.01

6

BUSH (20MM)

23431-KFB-000

$18.81

7

BUSH (20MM)

23431-437-000

$25.64

8

GEAR, MAINSHAFT SECOND (16T)

23441-KFB-000

$47.59

9

GEAR, COUNTERSHAFT SECOND (33T)

23451-KFB-000

Unavailable

10

GEAR, MAINSHAFT THIRD & FOURTH (20T/23T)

23461-KFB-750

Unavailable

11

GEAR, COUNTERSHAFT THIRD (29T)

23471-KFB-000

$68.46

12

GEAR, COUNTERSHAFT FOURTH (26T)

23491-KFB-750

$69.06

13

GEAR, MAINSHAFT FIFTH (25T)

23501-KFB-000

$59.58

14

GEAR, MAINSHAFT FIFTH (27T)

23501-KPM-000

$71.55

15

GEAR, COUNTERSHAFT FIFTH (24T)

23511-KFB-000

$73.01

16

GEAR, COUNTERSHAFT FIFTH (22T)

23511-KPM-000

$75.09

17

SPROCKET, DRIVE (13T)

23801-KCN-000

$53.77

18

PLATE A2, FIXING

23811-KR3-600

$4.26

19

WASHER, THRUST (15MM)

90451-107-000

$1.30

20

WASHER, THRUST (15MM)

90451-365-000

$2.85

21

WASHER, THRUST (16.5MM)

90452-437-000

$3.16

22

WASHER, THRUST (20MM)

90454-107-000

$1.59

23

WASHER A, SPLINE (20MM)

90455-107-000

$1.75

24

WASHER, SPLINE (22MM)

90463-437-000

$3.25

25

WASHER, COUNTERSHAFT THIRD SPLINE

90464-360-000

$4.43

26

WASHER, LOCK

90465-360-000

$6.13

27

CIRCLIP (OUTER) (22MM)

90601-437-000

$2.91

28

SET-RING (20MM)

90605-200-000

$2.67

29

BEARING, RADIAL BALL (20X55X11)

91005-KCN-003

$11.86

30

BEARING, BALL (6202) (NTN) This part replaces 91015-KK6-003.

91005-KK0-003

$33.32

31

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.15

32

BOLT, HEX. (6X10)

92101-06010-0A

$1.28

33

BEARING, RADIAL BALL (6204)

96100-62040-00

$10.98

34

BOLT, SOCKET (8X18)

96600-08018-18

$1.35
