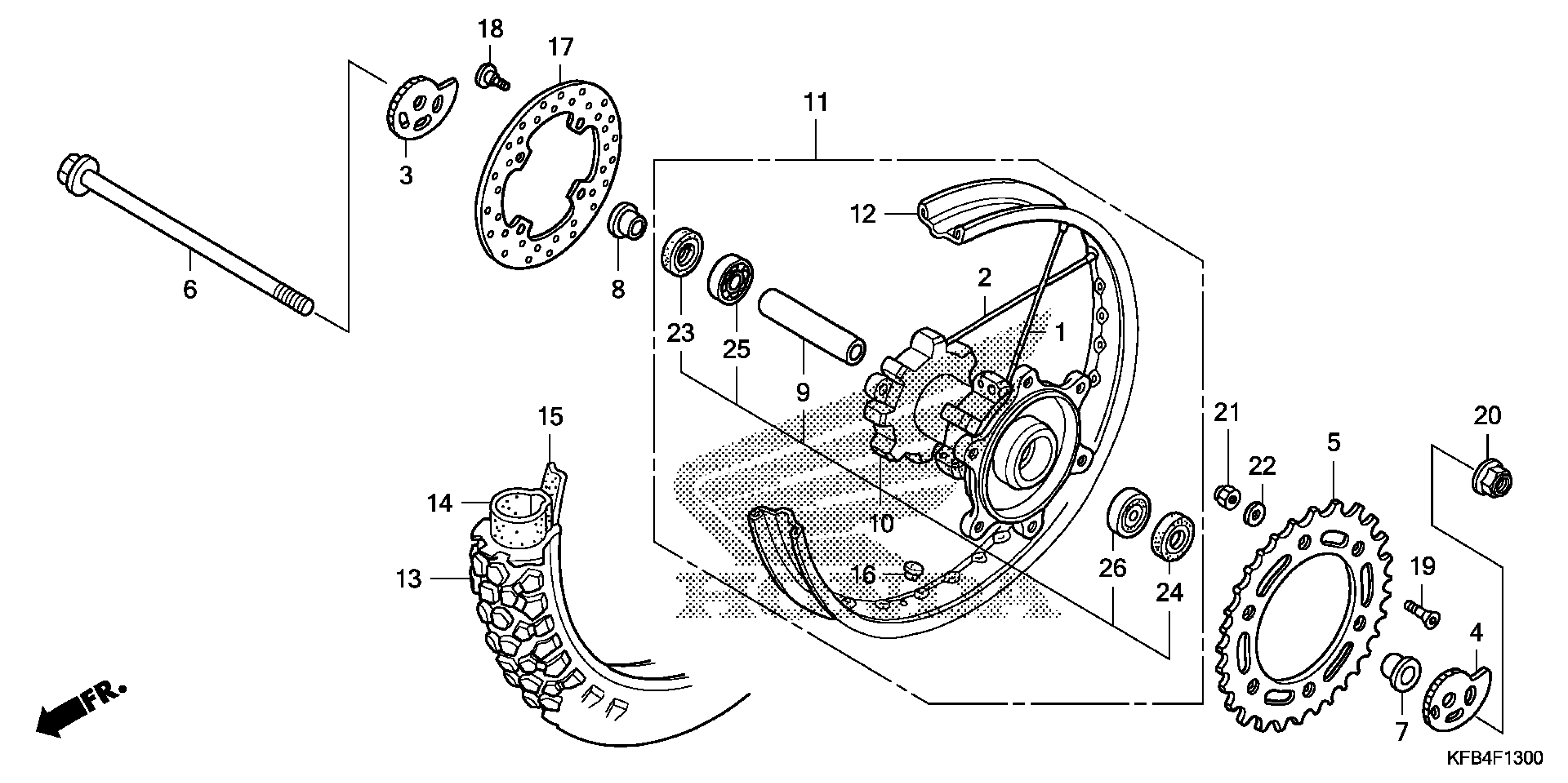

Honda CRF230LAC (09) MOTORCYCLE, JPN, VIN# JH2MD371-9K100001 TO JH2MD371-9K109999 REAR WHEEL (CRF230L) Diagram

#

Description
Price

1

SPOKE SET B, RR. (A10X220) (L. SIDE)

04421-KCZ-000

$4.56

2

SPOKE SET A, RR. (A10X223) (R. SIDE)

06420-KCZ-940

$3.21

3

ADJUSTER, R. CHAIN

40544-MN1-670

$11.20

4

ADJUSTER, L. CHAIN

40545-MN1-670

$11.85

5

SPROCKET, FINAL DRIVEN (39T)

41201-KCZ-000

$98.96

6

AXLE, RR. WHEEL

42301-KFB-000

Unavailable

7

COLLAR, RR. WHEEL

42312-KAE-000

$23.13

8

COLLAR B, RR. WHEEL

42312-KW3-000

$19.72

9

COLLAR, RR. AXLE DISTANCE

42620-KAE-000

$14.46

10

HUB SUB-ASSY., RR. WHEEL

42635-KCZ-940

$670.28

11

WHEEL SUB-ASSY., RR.

42650-KFB-841

$694.01

12

RIM, RR. WHEEL (2.15X18)

42701-KAE-013

$321.93

13

TIRE (120/80-18 62P) This part replaces 42711-KFB-842.

42711-KFB-843

Unavailable

14

TUBE, TIRE This part replaces 42712-KS6-003.

42712-KT1-673

$33.52

14

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$33.52

14

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$33.52

14

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$33.52

14

TUBE, TIRE This part replaces 42712-300-004.

42712-KT1-673

$33.52

14

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$33.52

15

FLAP, TIRE (2.15-18) (BS)

42713-300-003

$5.25

16

CAP, RIM HOLE

42717-329-000

$4.01

17

DISK, RR. BRAKE

43351-KZ1-770

$161.54

18

BOLT, DISK (8X22)

90105-MK5-010

$4.71

19

SCREW, FLAT (8X31)

90125-KA4-000

$2.95

20

NUT, FLANGE (16MM)

90305-ME5-003

$4.07

21

NUT, U (8MM) (FUSE RASHI)

90309-ML3-791

$4.16

22

WASHER (8MM)

90465-MC4-000

$2.32

23

OIL SEAL (25X40X7)

91252-KCY-671

$9.44

24

OIL SEAL (25X47X6.5)

91253-033-003

$5.68

25

BEARING, RADIAL BALL (6203U)

96140-62030-10

$10.93

26

BEARING, RADIAL BALL (6303U)

96140-63030-10

$13.34
