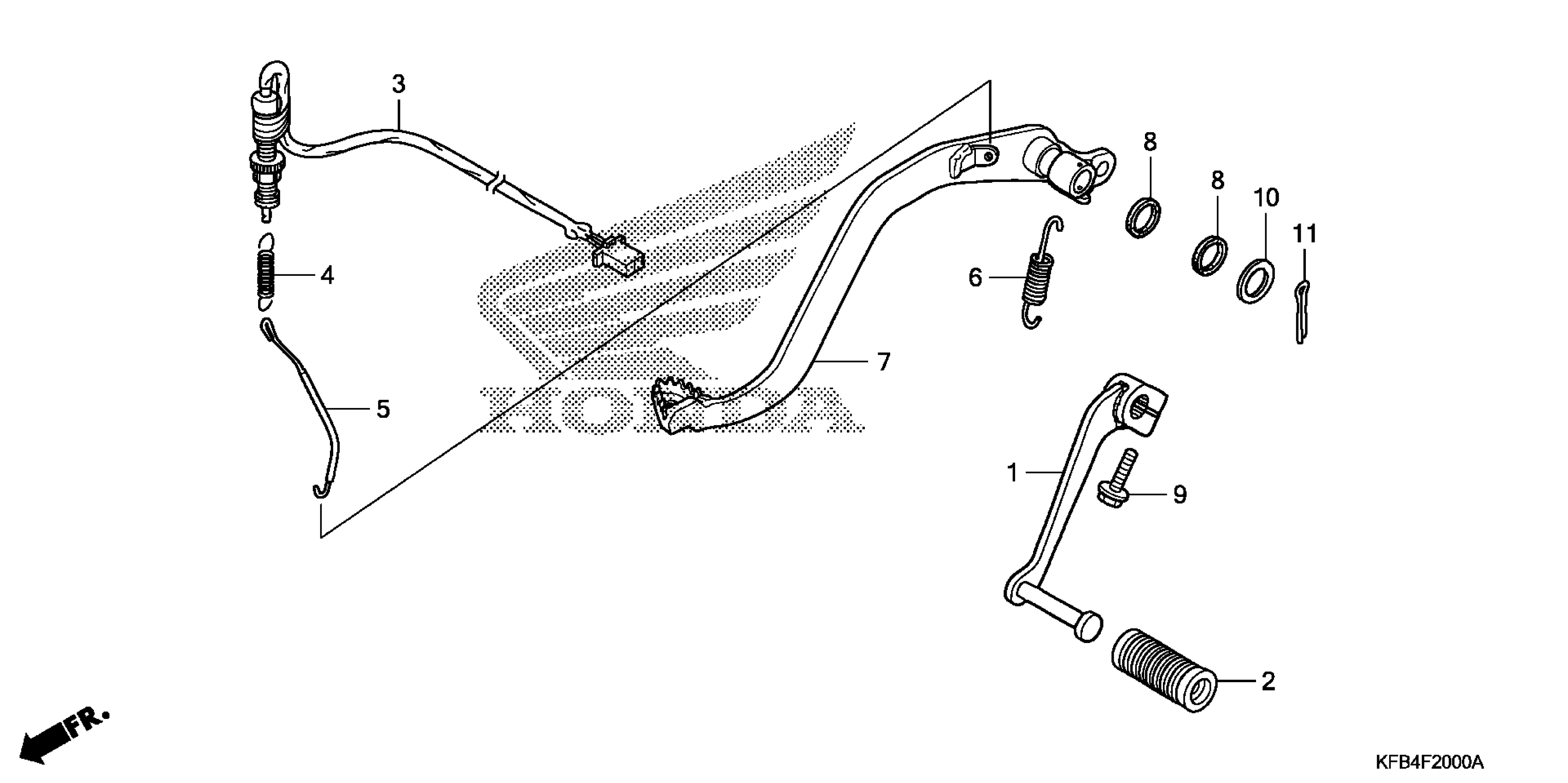

Honda CRF230LAC (09) MOTORCYCLE, JPN, VIN# JH2MD371-9K100001 TO JH2MD371-9K109999 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24710-KFB-900

$44.23

2

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.15

3

SWITCH ASSY., RR. STOP This part replaces 35350-KFB-840.

35350-KFB-841

Unavailable

3

SWITCH ASSY., RR. STOP

35350-KFB-841

Unavailable

4

SPRING, STOP SWITCH

35357-MBR-000

$2.17

5

ROD, STOP SWITCH

35358-KFB-840

Unavailable

6

SPRING, BRAKE PEDAL

46514-KFB-840

Unavailable

7

PEDAL, RR. BRAKE

46520-KFB-841

Unavailable

8

DUST SEAL (17X20X2.5)

46525-KK0-003

$4.70

9

BOLT, FLANGE (6X20)

90102-MN1-670

$2.80

10

WASHER, PLAIN (16MM)

90439-463-000

$1.43

11

PIN, SPLIT (2.0X35)

94201-20350

$0.94
