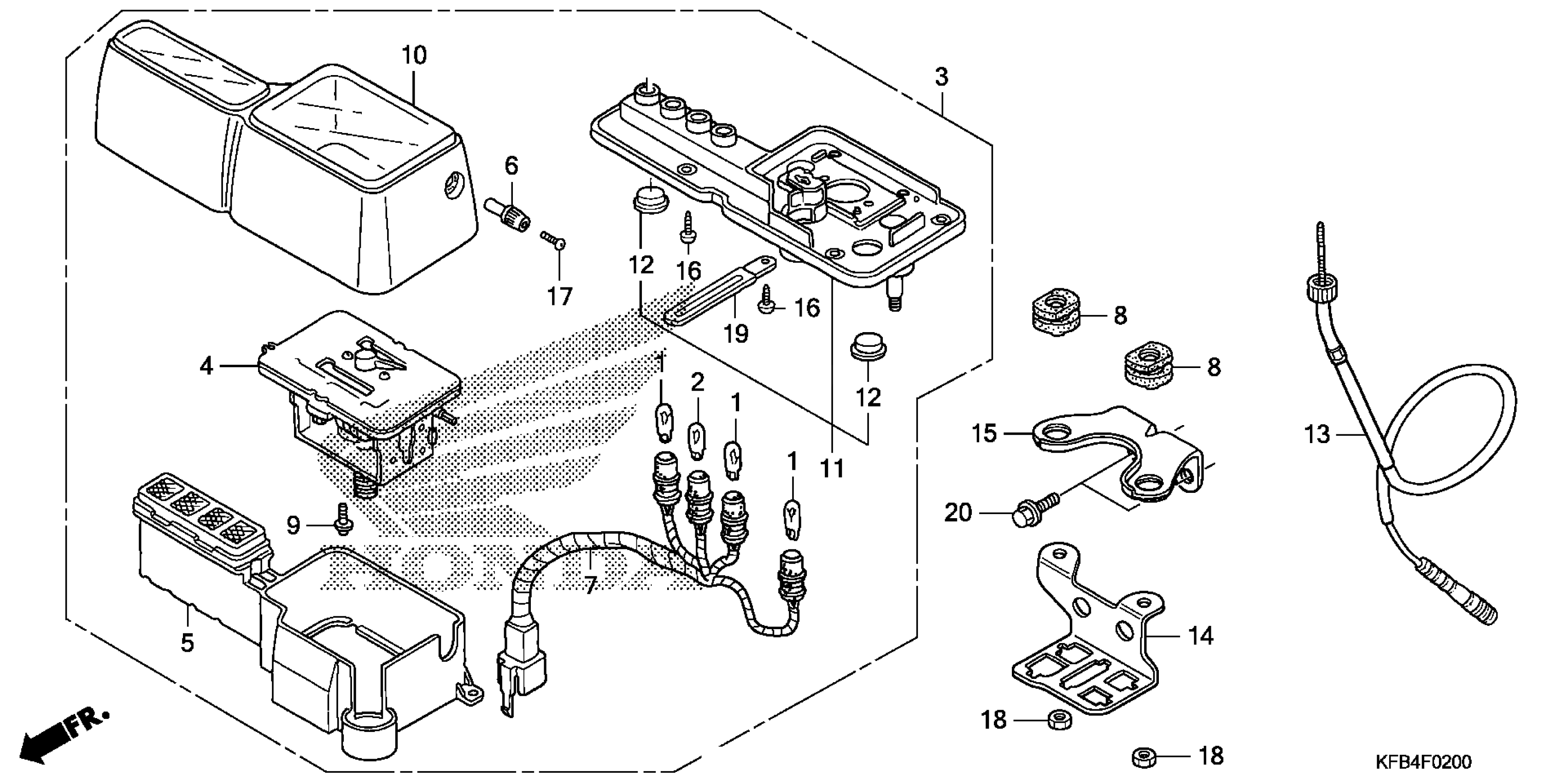

Honda CRF230LAC (09) MOTORCYCLE, JPN, VIN# JH2MD371-9K100001 TO JH2MD371-9K109999 METER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$3.90

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$3.90

1

BULB (14V 3.4W) (NS)

37237-SA5-003

$3.90

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$3.90

2

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

34908-MB9-871

$2.65

3

SPEEDOMETER ASSY. (MPH/KPH) This part replaces 37200-KFB-901.

37200-KFB-902

Unavailable

3

SPEEDOMETER ASSY. (MPH/KPH)

37200-KFB-902

Unavailable

4

SPEEDOMETER

37210-KFB-901

Unavailable

5

CASE ASSY. (INNER)

37215-KCM-621

Unavailable

6

KNOB

37220-KR3-671

$9.97

7

SOCKET

37222-KFB-901

$57.58

8

RUBBER, SPEEDOMETER MOUNTING

37243-MG2-000

$3.92

9

SCREW-WASHER (4X12)

37305-MAW-621

$1.36

10

CASE ASSY. (UPPER) (COO) This part replaces 37610-KBR-008.

37610-MGW-305

$58.92

10

CASE ASSY. (UPPER) (COO)

37610-MGW-305

$58.92

11

CASE ASSY. (LOWER)

37617-KFB-841

Unavailable

12

CAP, SPEED ALARM WIRE

37618-MB2-008

$2.03

13

CABLE ASSY., SPEEDOMETER

44830-KFB-840

$27.30

14

STAY, CONNECTOR

61315-KFB-900

$10.36

15

STAY, SPEEDOMETER

61319-KAE-870

$18.81

16

SCREW, TAPPING (4X14)

90109-MZ5-008

$4.12

17

SCREW, PAN (2X6)

90158-KM7-911

$1.84

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM)

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

19

CLIP (4X100)

94591-41000

$3.90

20

BOLT, FLANGE (8X16)

95701-08016-00

$1.64
