Description

Price

1

COVER, THROTTLE CABLE

16150-KFB-840

Unavailable

2

CABLE A, THROTTLE

17910-KFB-840

$26.78

3

COVER, THROTTLE CABLE

17913-KB7-000

$10.60

4

CABLE B, THROTTLE

17920-KFB-840

$27.16

5

CABLE, CHOKE

17950-KFB-750

$19.66

6

LEVER, CHOKE

17961-MG2-010

$18.02

7

CABLE, CLUTCH

22870-KFB-900

$23.75

8

SWITCH ASSY., STOP

35130-KFB-840

$57.89

9

SWITCH ASSY., TURN SIGNAL & HORN

35200-KFB-840

$102.43

10

SWITCH ASSY., CLUTCH

35330-MK5-003

$17.76

11

GRIP ASSY., THROTTLE (COO)

53140-MGW-305

$32.53

11

GRIP ASSY., THROTTLE (COO) This part replaces 53140-MK5-020.

53140-MGW-305

$32.53

12

GRIP, L. HANDLE (COO)

53166-MGW-305

$10.37

12

GRIP, L. HANDLE (COO) This part replaces 53166-MK5-010.

53166-MGW-305

$10.37

13

HOUSING, THROTTLE (UPPER)

53167-KB7-000

$42.32

14

HOUSING, THROTTLE (LOWER)

53168-MG7-000

$37.44

15

SLIDER, THROTTLE CABLE

53169-KB7-000

$7.91

16

BRACKET, L. HANDLE LEVER

53172-MK5-000

$29.33

17

HOLDER, L. LEVER BRACKET

53174-KE1-000

$15.72

18

PLATE, POINT

53176-MM9-000

$4.06

19

COVER, L. HANDLE LEVER

53177-MG7-000

$9.64

20

LEVER, L. HANDLEBAR

53178-KFB-000

$19.03

21

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

22

COVER, LOCK NUT

88112-MM9-000

$9.57

23

MIRROR

88210-KCZ-641

$32.04

24

RUBBER, MOUNT

88255-KAE-871

$15.88

25

BOLT, HANDLE LEVER PIVOT

90113-MG2-000

$6.05

26

NUT, LOCK (LEFT HAND THREAD)

90301-KBA-900

$1.49

27

NUT, FIXING

90321-315-670

$7.31

28

WASHER (8MM)

90405-463-000

$3.45

29

WASHER, WAVE

90406-KF0-003

$2.92

30

BAND, WIRE

90650-KW3-000

$4.48

31

SCREW, PAN (4X20)

93500-04020-0G

$1.49

32

SCREW, PAN (4X30)

93500-04030-0G

$3.69

33

SCREW, PAN (4X32)

93500-04032-0G

$1.49

34

SCREW, PAN (4X45)

93500-04045-0G

$1.49

35

SCREW, PAN (5X16)

93500-05016-0G

$1.49

36

SCREW, PAN (5X20)

93500-05020-0G

$1.49

37

SCREW, TAPPING (3X12)

93901-32320

$1.49

38

NUT, HEX. (6MM)

94002-06000-0S

$1.49

39

NUT, FLANGE (10MM)

90303-428-900

$3.35

39

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

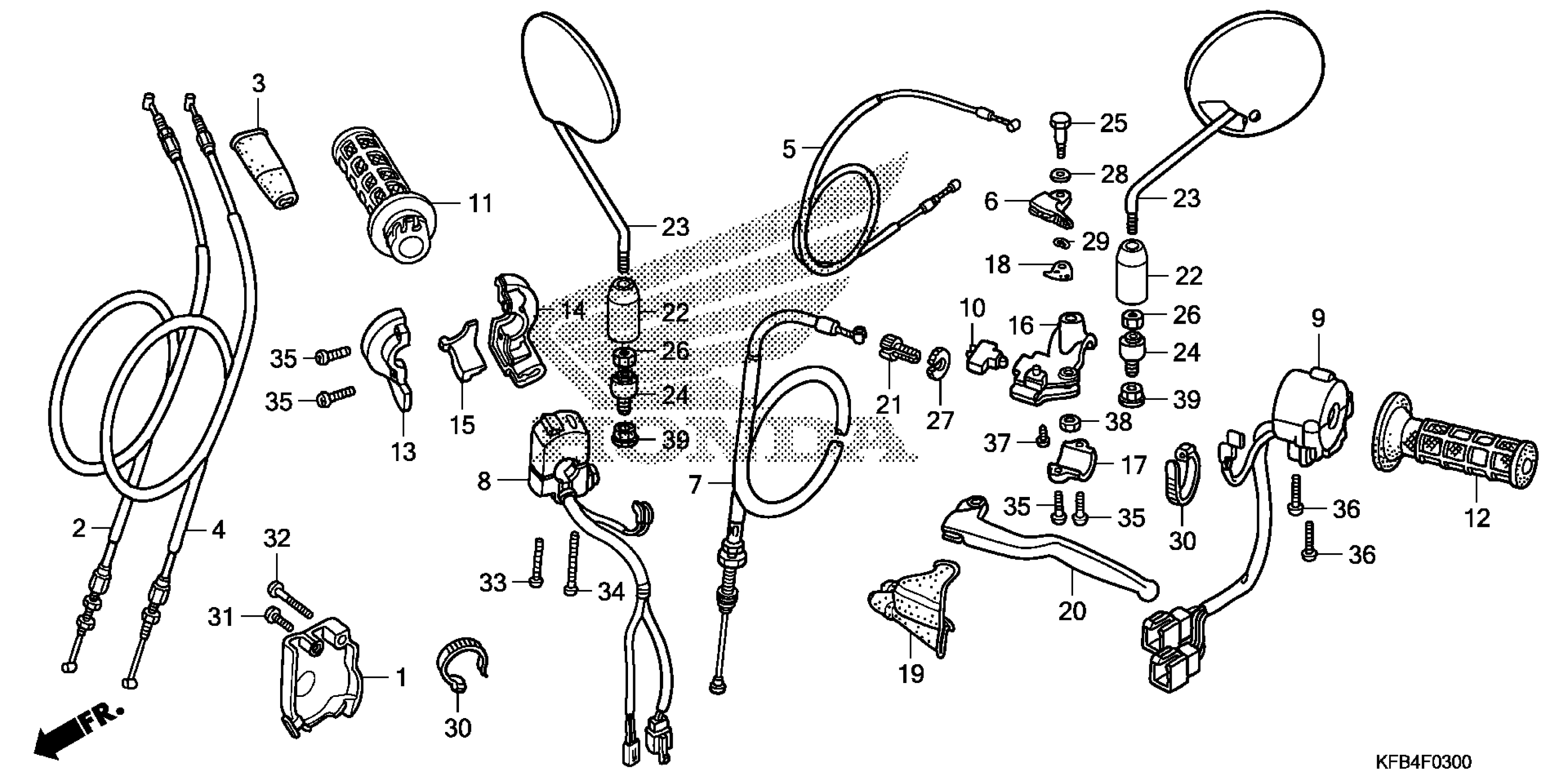

Honda CRF230LAC (09) MOTORCYCLE, JPN, VIN# JH2MD371-9K100001 TO JH2MD371-9K109999 HANDLE LEVER + SWITCH + CABLE Diagram

COVER, THROTTLE CABLE

CABLE A, THROTTLE

COVER, THROTTLE CABLE

CABLE B, THROTTLE

CABLE, CHOKE

LEVER, CHOKE

CABLE, CLUTCH

SWITCH ASSY., STOP

SWITCH ASSY., TURN SIGNAL & HORN

SWITCH ASSY., CLUTCH

GRIP ASSY., THROTTLE (COO)

GRIP ASSY., THROTTLE (COO) This part replaces 53140-MK5-020.

GRIP, L. HANDLE (COO)

GRIP, L. HANDLE (COO) This part replaces 53166-MK5-010.

HOUSING, THROTTLE (UPPER)

HOUSING, THROTTLE (LOWER)

SLIDER, THROTTLE CABLE

BRACKET, L. HANDLE LEVER

HOLDER, L. LEVER BRACKET

PLATE, POINT

COVER, L. HANDLE LEVER

LEVER, L. HANDLEBAR

BOLT, WIRE ADJUSTING

COVER, LOCK NUT

MIRROR

RUBBER, MOUNT

BOLT, HANDLE LEVER PIVOT

NUT, LOCK (LEFT HAND THREAD)

NUT, FIXING

WASHER (8MM)

WASHER, WAVE

BAND, WIRE

SCREW, PAN (4X20)

SCREW, PAN (4X30)

SCREW, PAN (4X32)

SCREW, PAN (4X45)

SCREW, PAN (5X16)

SCREW, PAN (5X20)

SCREW, TAPPING (3X12)

NUT, HEX. (6MM)

NUT, FLANGE (10MM)

NUT, FLANGE (10MM) This part replaces 94050-10070.
