Partiron

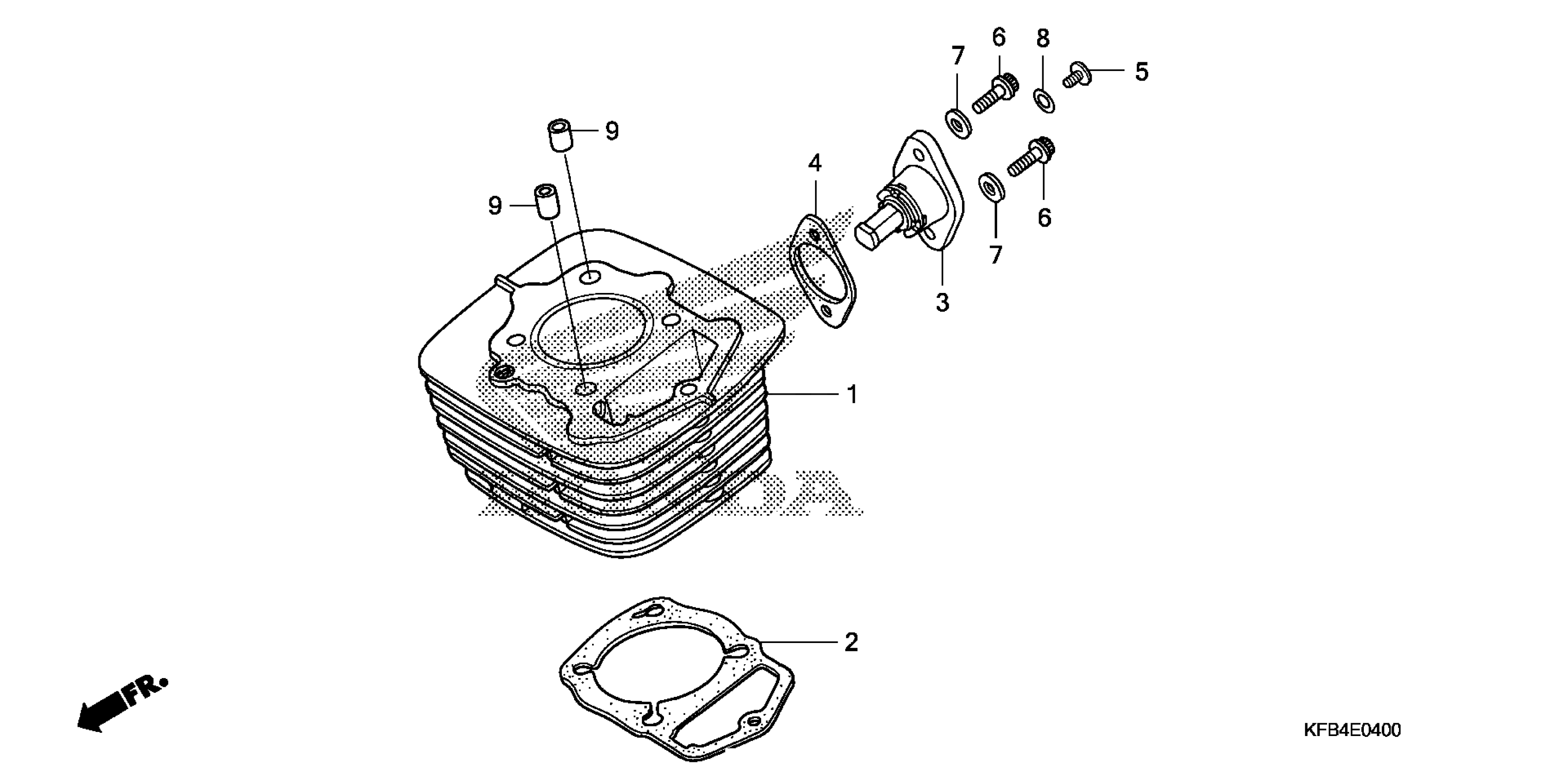

Honda CRF230LAC (09) MOTORCYCLE, JPN, VIN# JH2MD371-9K100001 TO JH2MD371-9K109999 CYLINDER + TENSIONER Diagram

#

Description
Price

1

CYLINDER

12100-KFB-000

$296.49

2

GASKET, CYLINDER This part replaces 12191-KCN-000.

12191-KCN-020

$7.52

2

GASKET, CYLINDER This part replaces 12191-KCN-010.

12191-KCN-020

$7.52

3

LIFTER ASSY., TENSIONER

14520-KCJ-661

$89.84

4

GASKET, TENSIONER LIFTER

14523-KBB-901

$8.95

5

SCREW, PAN (6X6)

90005-KY7-000

$3.01

6

BOLT, FLANGE SOCKET (6X16)

90071-MG8-000

$2.54

7

WASHER, SEALING (6MM)

90488-425-000

$2.07

8

O-RING (1.5X9.5)

91306-MG3-000

$2.12

9

PIN, DOWEL (10X20)

94301-10200

$2.32
