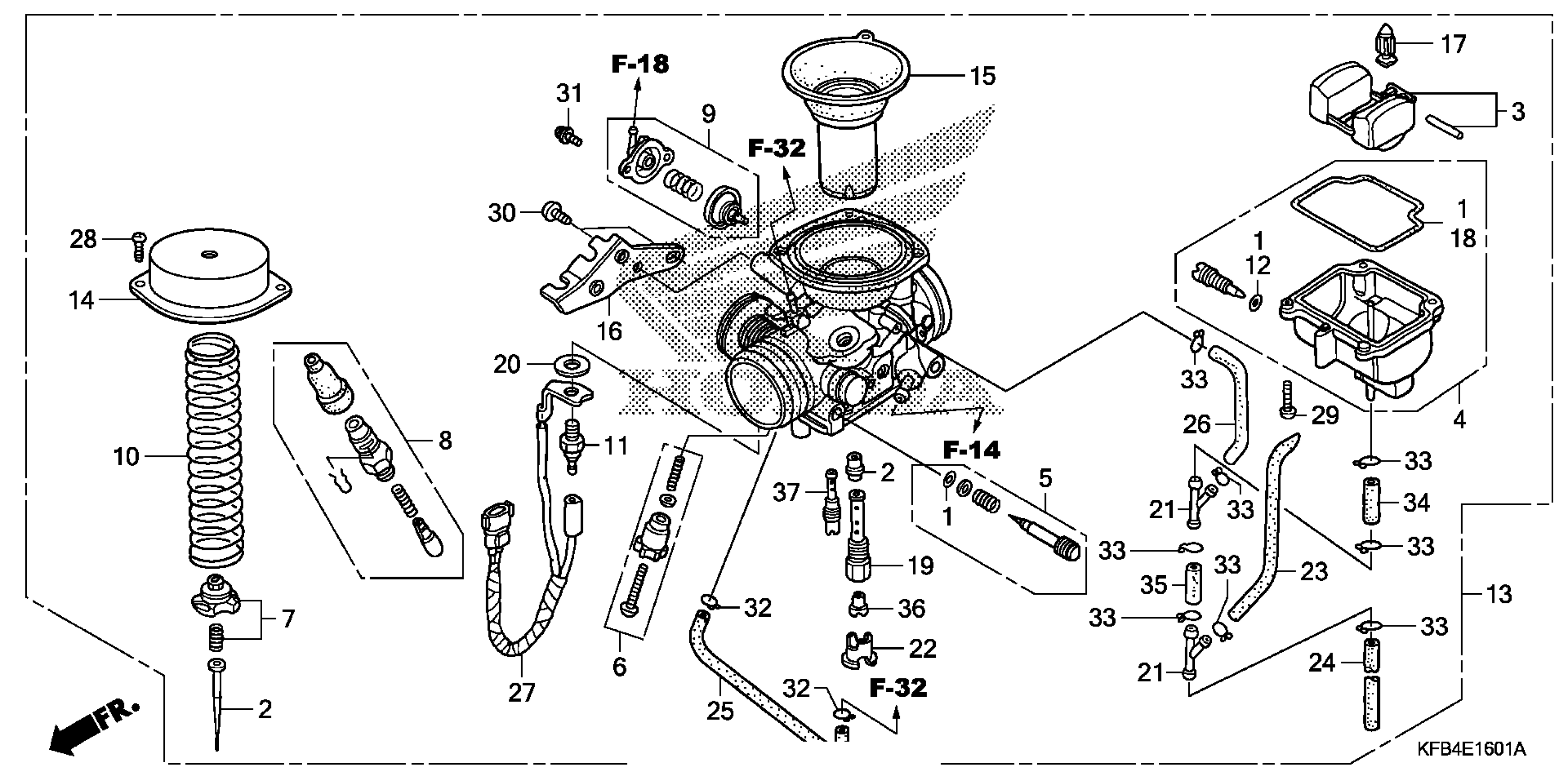

Honda CRF230LAC (09) MOTORCYCLE, JPN, VIN# JH2MD371-9K100001 TO JH2MD371-9K109999 CARBURETOR (AC) Diagram

#

Description
Price

1

GASKET SET

16010-KPK-901

$6.70

2

NEEDLE SET, JET

16012-KFB-751

Unavailable

3

FLOAT SET

16013-KR3-980

$49.62

4

CHAMBER SET, FLOAT

16015-KFB-003

Unavailable

5

SCREW SET This part replaces 16016-KFB-751.

16016-KFG-J01

$17.61

6

SCREW SET

16028-KR3-980

$42.67

7

PLATE SET, VALVE

16037-KFB-751

$4.03

8

VALVE SET, STARTER

16046-KFB-000

$68.12

9

VALVE SET, AIR CUT

16048-KFB-000

$108.64

10

SPRING, VACUUM PISTON

16050-KFB-000

$7.10

11

HEATER

16071-KFB-841

Unavailable

12

O-RING (1.3X4.3)

16075-GHB-640

$2.65

13

CARBURETOR ASSY. (VE3AH A)

16100-KFB-931

$423.84

14

TOP

16107-KFB-000

$42.09

15

PISTON, VACUUM

16111-KFB-010

Unavailable

16

STAY, WIRE

16119-KFB-000

$10.86

17

VALVE, FLOAT This part replaces 16155-KJ9-751.

16155-413-751

$29.18

17

VALVE, FLOAT

16155-413-751

$29.18

18

GASKET, FLOAT CHAMBER

16163-KPK-901

$7.36

19

HOLDER, NEEDLE JET

16165-KFB-600

$15.49

20

COLLAR, SET

16172-KFB-901

$8.46

21

JOINT

16180-ML6-671

$14.34

22

PLATE, BUFFER

16185-MN9-004

$11.48

23

TUBE

16196-KFB-931

Unavailable

24

TUBE

16197-KFB-931

Unavailable

25

TUBE

16198-KFB-931

Unavailable

26

TUBE

16199-KFB-931

Unavailable

27

SUB-HARNESS, CARBURETOR HEATER

32160-KFB-900

Unavailable

28

SCREW, PAN (4X8)

93500-04008-0A

$0.80

28

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$0.80

29

SCREW, PAN (4X14)

93500-04014-0A

$0.75

29

SCREW, PAN (4X14) This part replaces 93500-04014-1A.

93500-04014-0A

$0.75

30

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

30

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

Unavailable

30

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

Unavailable

31

SCREW-WASHER (4X10)

93892-04010-08

$1.04

31

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.04

32

CLIP, TUBE (B7)

95002-02079

$1.09

33

CLIP, TUBE (B8)

95002-02089

Unavailable

34

BULK HOSE, VACUUM (4.5X1000) (4.5X30)

95005-45001-50M

$6.52

35

BULK HOSE, VACUUM (4.5X1000) (4.5X40)

95005-45001-50M

$6.52

36

JET, MAIN (#118)

99101-KTN-1180

$8.80

37

JET, SLOW (#35)

99104-KC1-0350

$8.96
