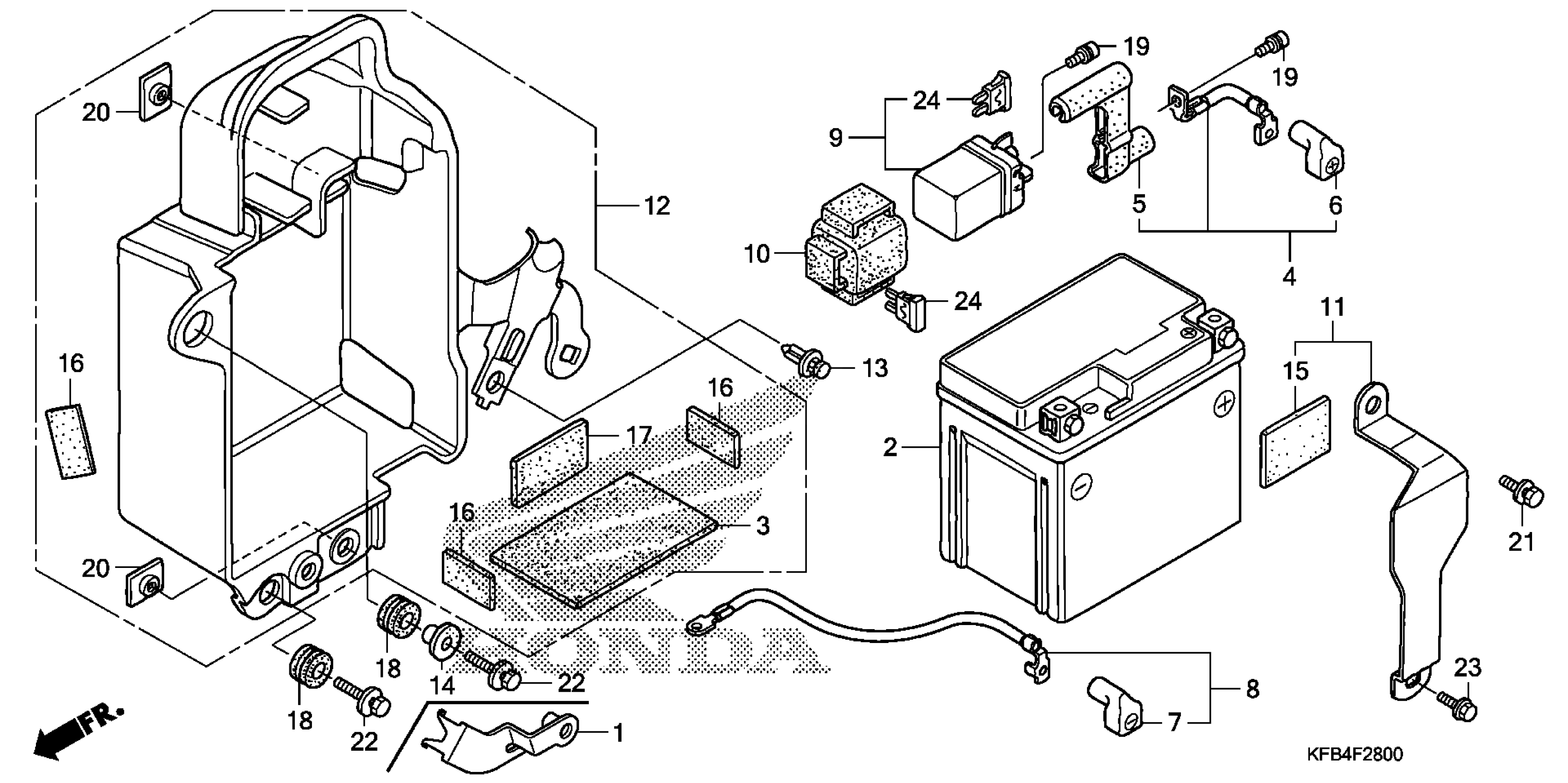

Honda CRF230LAC (09) MOTORCYCLE, JPN, VIN# JH2MD371-9K100001 TO JH2MD371-9K109999 BATTERY Diagram

#

Description
Price

1

STAY, PURGE CONTROL VALVE

17441-KFB-930

$13.57

2

BATTERY (YTZ7S) This part replaces 31500-HP1-600.

31500-HP1-602

$130.51

2

BATTERY (YTZ7S) This part replaces 31500-HP1-601.

31500-HP1-602

$130.51

2

BATTERY (YTZ7S) This part replaces 31500-HP1-601AH.

31500-HP1-602

$130.51

2

BATTERY (YTZ7S) This part replaces 31500-KGB-901.

31500-HP1-602

$130.51

3

RUBBER, BATTERY CUSHION

31511-107-300

$4.47

4

CABLE, STARTER MAGNETIC BATTERY

32401-KFB-840

$22.44

5

COVER A, STARTER MAGNETIC TERMINAL

32406-KFB-000

$4.60

6

COVER A, BATTERY

32412-KFB-840

$4.18

7

COVER B, BATTERY

32413-KFB-000

$4.18

8

CABLE, BATTERY GROUND

32601-KFB-900

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC

35850-KL8-740

$96.91

10

RUBBER, SHOCK

35856-KBG-007

$9.63

11

BAND, BATTERY

50255-KCZ-000

Unavailable

12

BOX, BATTERY

50325-KFB-840

$43.06

13

CLIP

50326-KFB-840

$1.54

15

RUBBER C

50330-KCN-000

$1.90

16

RUBBER, BATTERY

50383-GB6-300

$3.01

17

COVER, HANDLEBAR

53111-GR0-300

$1.51

18

RUBBER, FENDER MOUNTING

61102-MB6-631

$2.07

19

BOLT, SOCKET (5X9)

90111-MR5-000

$2.41

20

NUT, SPECIAL (6X7)

90303-HA0-680

$3.67

21

BOLT-WASHER (6X12)

93404-06012-00

$1.63

22

BOLT-WASHER (6X20)

93404-06020-00

$1.63

23

BOLT, FLANGE (6X12)

96300-06012-00

Unavailable

24

FUSE, BLADE (20A)

98200-32000

$1.21
