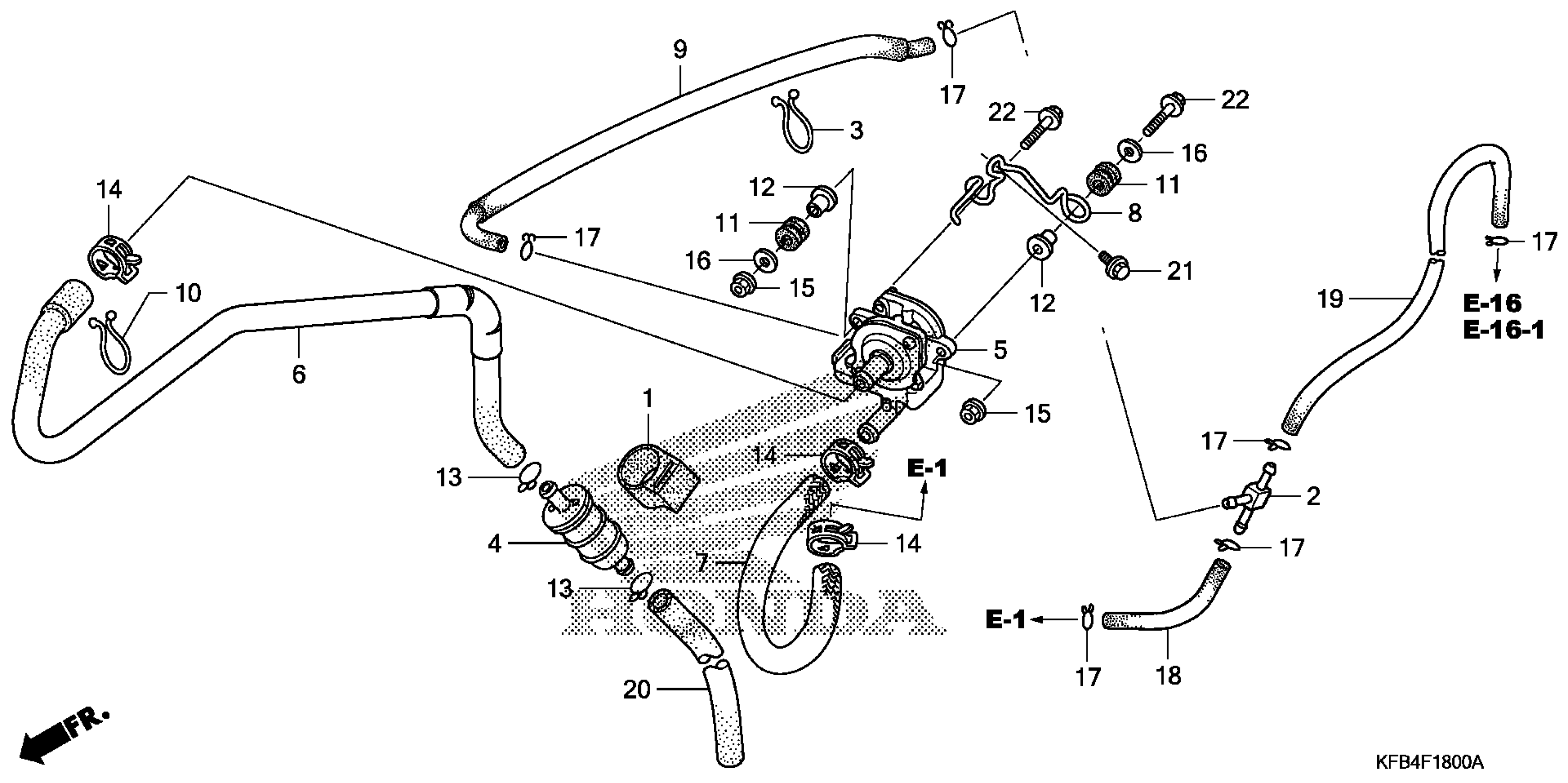

Honda CRF230LAC (09) MOTORCYCLE, JPN, VIN# JH2MD371-9K100001 TO JH2MD371-9K109999 AIR SUCTION VALVE Diagram

CUSHION, FUEL STRAINER

16905-MG7-000

$7.95

JOINT A, VACUUM TUBE

17201-MG9-000

$15.94

HOLDER, TUBE

17233-KCZ-J20

$1.85

FILTER, AIR

17260-KFL-D00

$4.35

VALVE ASSY., AIR SUCTION

18600-KFB-841

$145.75

TUBE, AIR SUCTION VALVE-SUB AIR CLEANER

18601-KFB-900

$13.46

TUBE B, AIR SUCTION VALVE

18602-KFB-840

$13.93

STAY, AIR SUCTION VALVE

18603-KFB-840

$13.87

TUBE, AIR SUCTION VALVE CONTROL

18604-KFB-840

$9.95

LOCK, PURSE

32171-GF9-621

$2.13

RUBBER, RR. FENDER CUSHION

80101-165-000

$3.74

WASHER, FR. COVER SETTING

90501-124-000

$3.74

CLIP, TUBE (B14)

90651-KM9-000

$1.79

CLIP, FUEL HOSE

90678-MN5-000

$2.59

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

CLIP, TUBE (B7)

95002-02070

$1.80

BULK HOSE, VACUUM (3.5X8000) (3.5X50)

95005-35008-10M

$105.82

BULK HOSE, VACUUM (3.5X8000) (3.5X175)

95005-35008-10M

$105.82

BULK HOSE, VACUUM (8X1000) (8X145)

95005-80001-20M

$23.91

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
