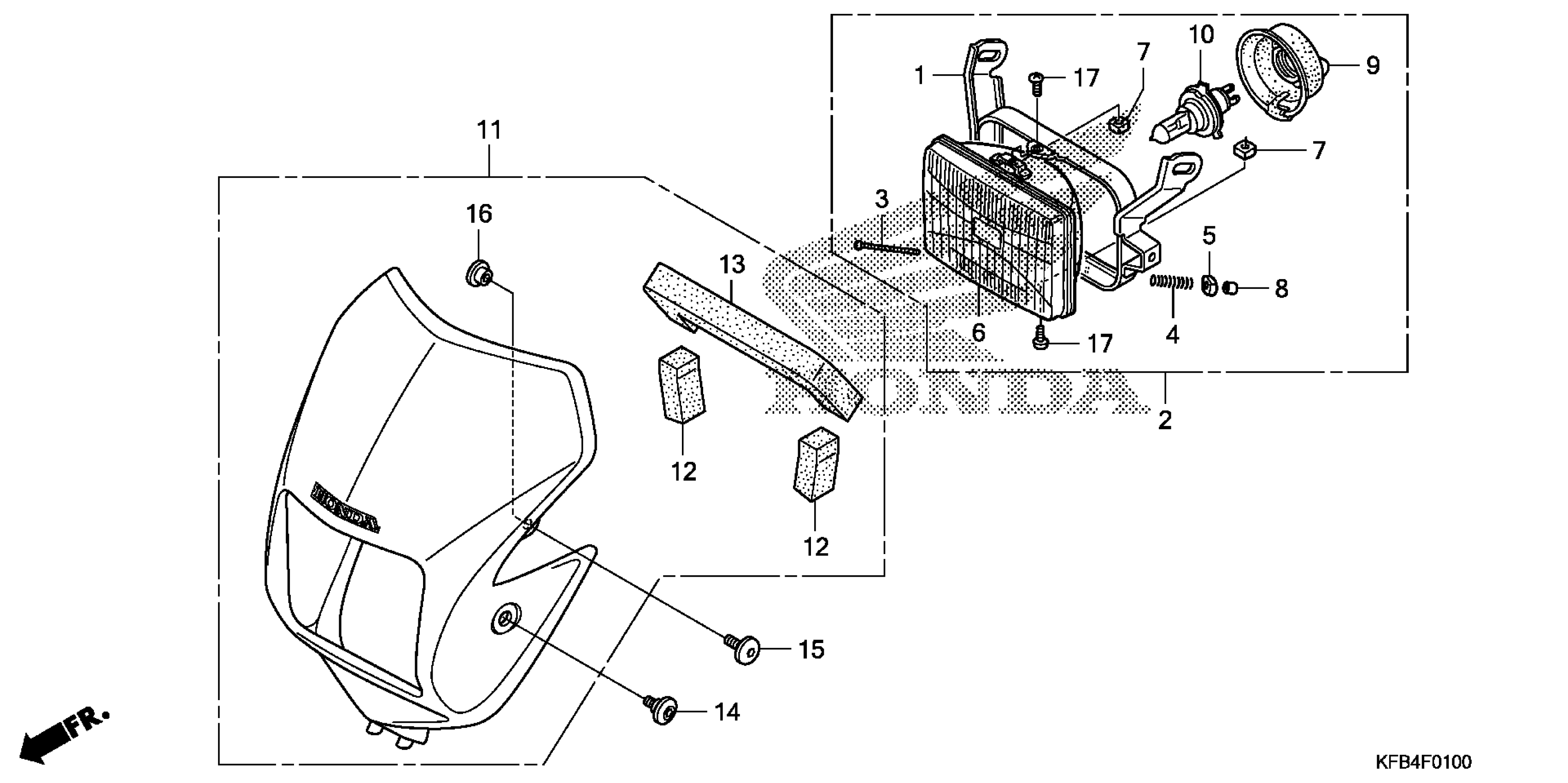

Honda CRF230LAC (08) MOTORCYCLE, JPN, VIN# JH2MD371-8K000001 TO JH2MD371-8K099999 HEADLIGHT Diagram

RING, MOUNTING

32153-KFB-901

Unavailable

HEADLIGHT ASSY. (12V 60/55W)

33100-KFB-901

$216.44

SCREW, BEAM ADJUSTING

33103-MG2-671

$5.21

SPRING, HEADLIGHT BEAM ADJUSTING

33107-MG2-671

$2.92

NUT, BEAM ADJUSTING (STANLEY)

33117-415-003

$2.23

HEADLIGHT UNIT

33120-KFB-901

$140.54

NUT, UNIT HOLDER

33128-471-003

$1.62

COVER, SCREW

33136-426-830

$1.89

COVER, RUBBER

33180-471-902

$11.93

BULB, HEADLIGHT (12V 60/55W) (STANLEY)

34901-MC7-602

$37.18

VISOR SET, FR. (TYPE1) (WL) | Extreme red R292R;

61140-KFB-900ZA

Unavailable

SEAL B, FR. VISOR

64236-KFB-900

$3.48

SEAL A, FR. VISOR

64316-KFB-900

$9.84

BOLT, PROTECTOR

90113-MAC-780

$3.53

SCREW, PAN (6X14)

90118-MR1-000

$3.10

COLLAR (6X4)

90127-KF0-770

$3.42

SCREW, PAN (5X10)

93500-05010-0G

$1.49
