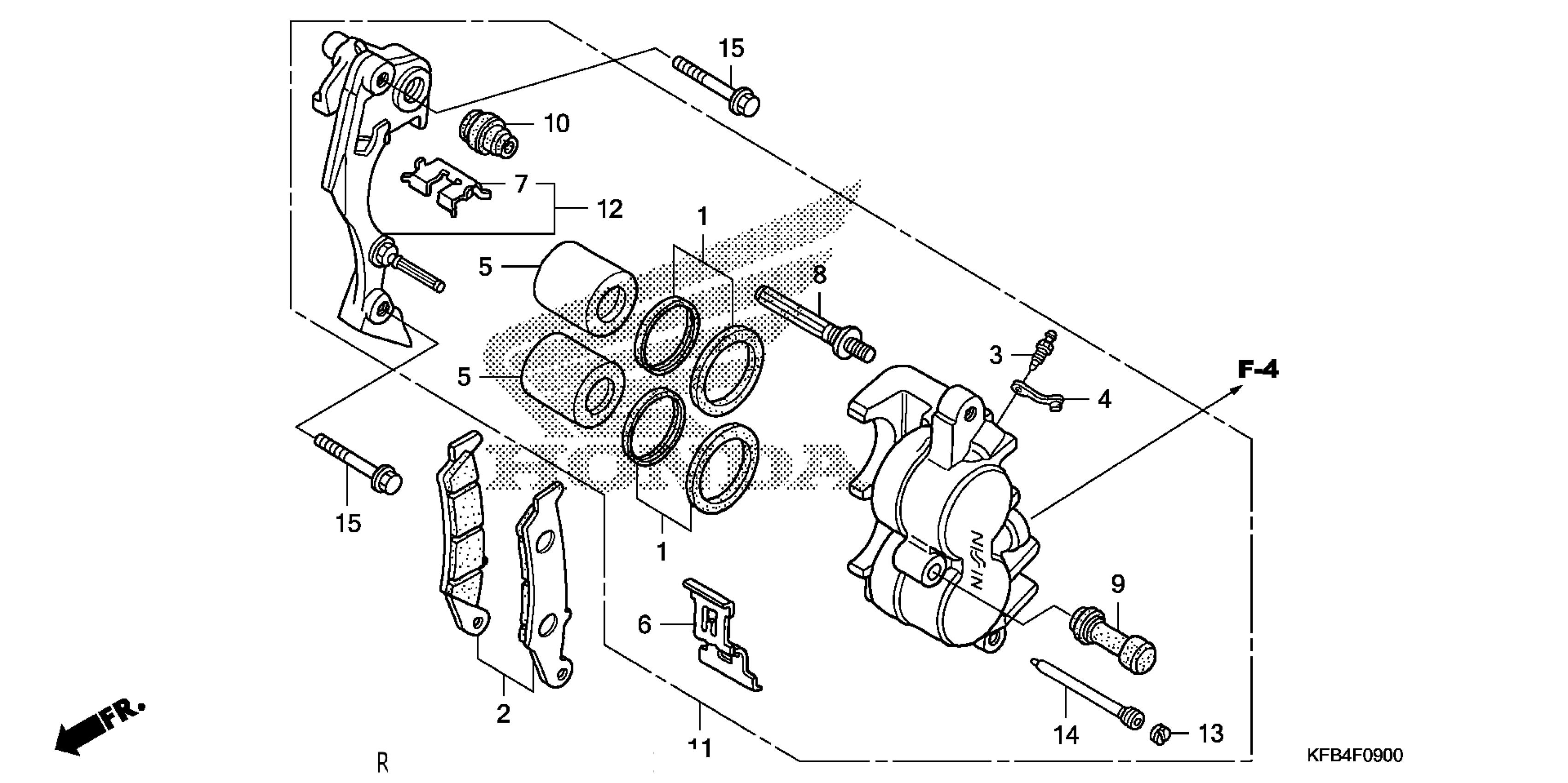

Honda CRF230LAC (08) MOTORCYCLE, JPN, VIN# JH2MD371-8K000001 TO JH2MD371-8K099999 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON

06451-GE2-405

$11.41

2

PAD SET, FR.

06455-GZ8-415

$43.10

3

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

4

CAP, BLEEDER

43353-461-771

$5.05

5

PISTON

45107-GE2-006

$43.05

6

SPRING, PAD

45108-MY1-006

$10.74

7

RETAINER

45112-KS6-701

$6.08

8

BOLT A, PIN

45131-HA5-672

$15.44

9

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

10

BOOT B

45133-MA3-006

$5.46

11

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-KFB-601

Unavailable

12

BRACKET SUB-ASSY., L. FR. CALIPER

45190-KFB-602

$119.15

13

PLUG, PIN

45203-MG3-016

$5.12

14

PIN, HANGER

45215-HA5-672

$10.63

15

BOLT, FLANGE (8X40)

90131-MS6-900

$4.07
